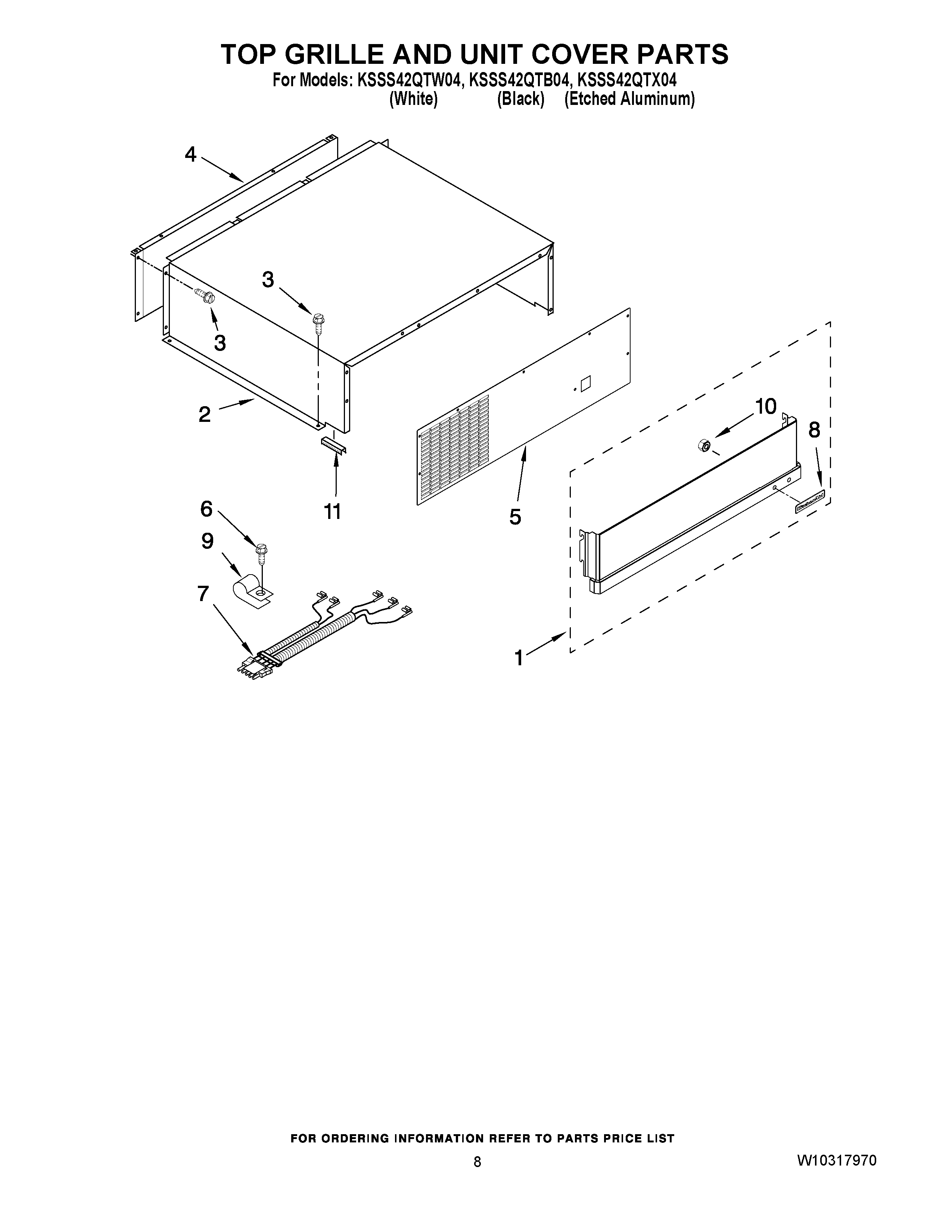

KSSS42QTB04 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS42QTB04 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS42QTB04 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly (White)
1Panel, Decorative Assembly (Black)
1Top Grille Assy
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5FRONT, UNIT COVER
6WP965173 Whirlpool Dishwasher Screw
7W10167456 Whirlpool Harness Switch
8Badge, Kitchen Aid (Black)
8Badge, Kitchen Aid (White)
8NAMEPLATE
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
112215910 Whirlpool Refrigerator Grommet
