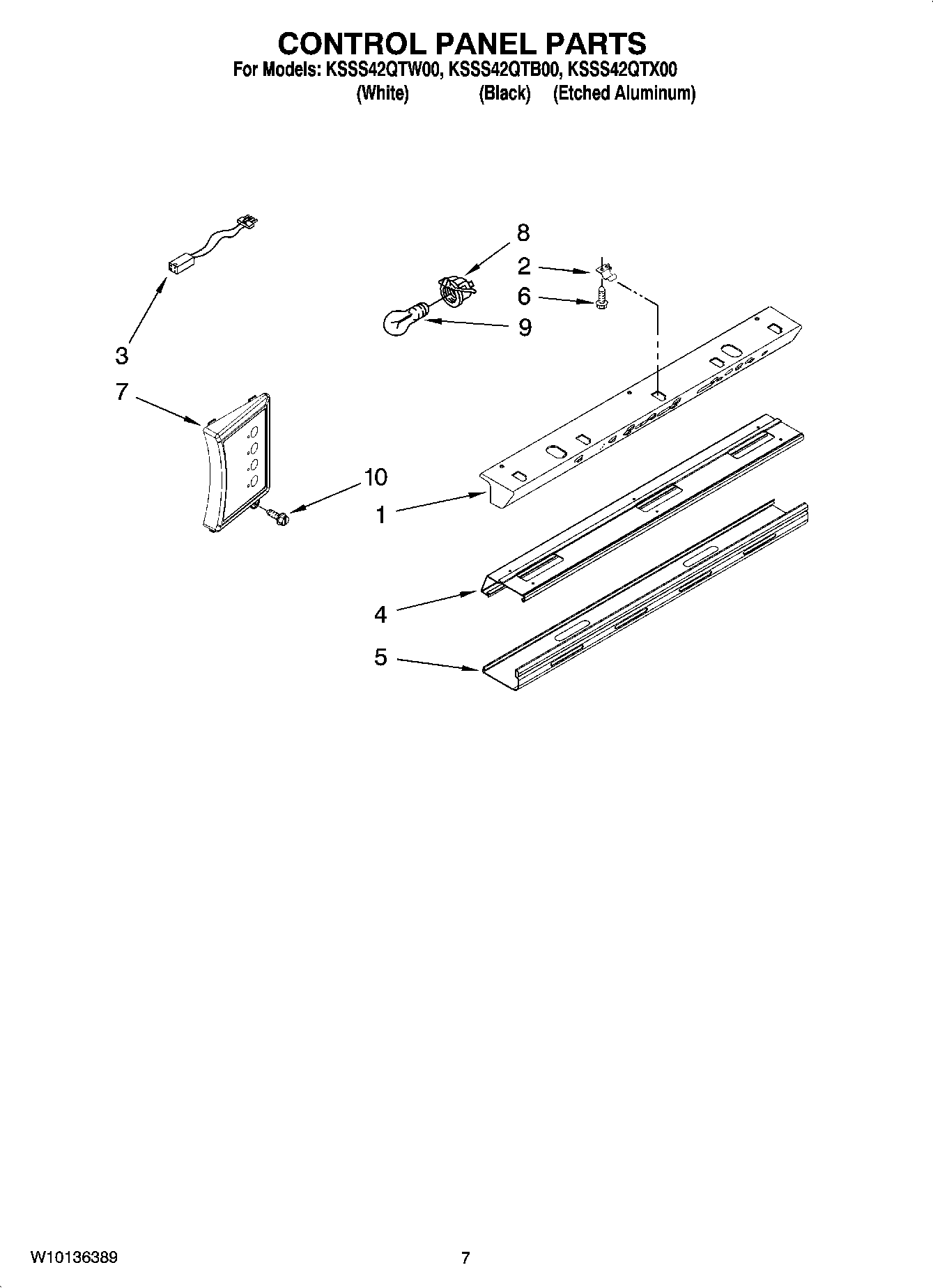

KSSS42QTW00 05 – CONTROL PANEL PARTS

KSSS42QTW00 05 – CONTROL PANEL PARTS

Written by

in

KSSS42QTW00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10468940 Whirlpool Refrigerator Control Box
2Clip, Control Box
32310390 Whirlpool Refrigerator Wire Assembly
4Bracket, Control Box
52307595 Whirlpool Light Lens
6WP488729 Whirlpool Refrigerator Door Screw
7WP2306086 Whirlpool Refrigerator Electronic Control Board
8WPW10191429 Whirlpool Refrigerator Socket
9WPA3073101 Whirlpool Light Bulb
10WPW10142283 Whirlpool Refrigerator Screw
