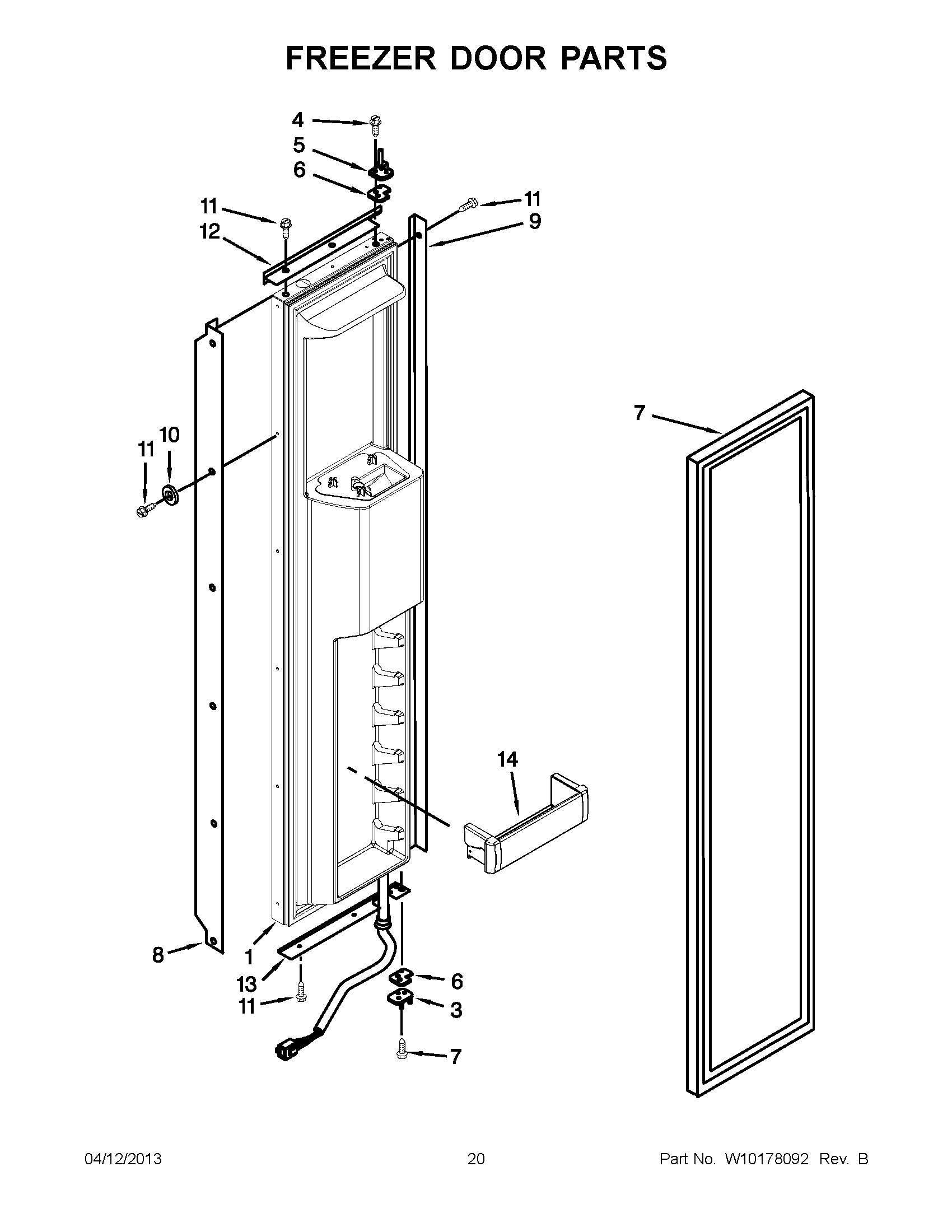

KSSS42QTX02 10 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES No.13) (WHITE)
1DOOR, FREEZER (INCLUDES No.13) (BLACK)
1DOOR, FREEZER (INCLUDES No.13) (UNIVERSAL SILVER)
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8Handle, Door
8Handle, Door (White)
8Handle, Door (Black)
9Trim (Side) (Black)
9Trim (Side) (White)
9Trim-Door, Side
10Washer
11Screw 8-15 x 1/2 (White)
12Trim (Top) (Black)
12Trim-Door, Top
12Trim (Top) (White)
13Trim (Bottom) (White)
13Trim (Bottom) (Black)
13Trim-Door, Bottom
14W10323602 Whirlpool Refrigerator Cantilever Bin
