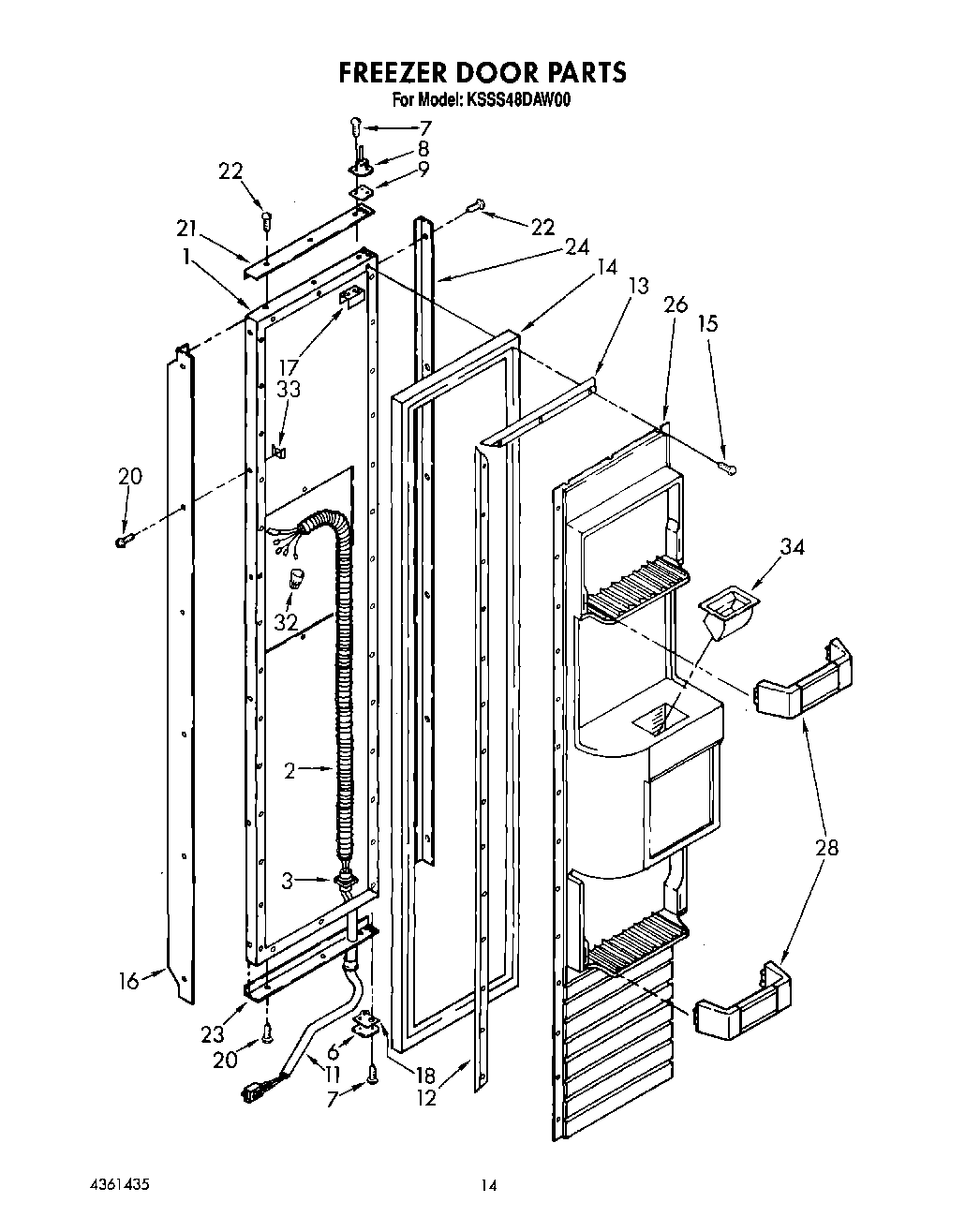

KSSS48DAW00 11 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer, Top
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188319A Whirlpool Refrigerator Door Gasket
15WP489069 Whirlpool Compactor Screw
16Handle, Door
17Tap, Plate
18Spacer, Bottom
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
22Screw, 6-32 x 1/2
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28Door Shelf, Trim Assembly
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
