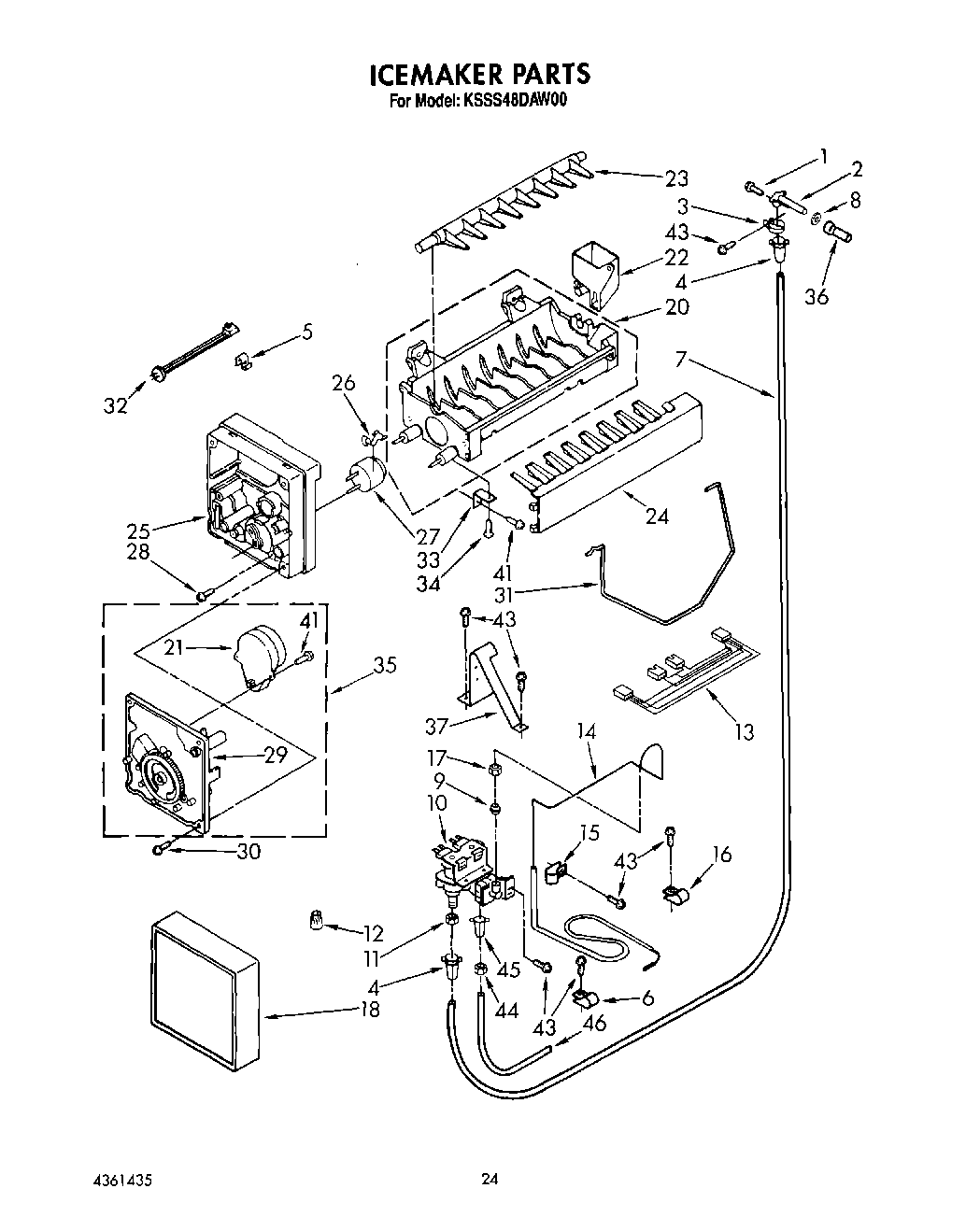

KSSS48DAW00 17 – ICEMAKER, LIT/OPTIONALadmin2025-04-26T12:12:05+00:00KSSS48DAW00 17 – ICEMAKER, LIT/OPTIONAL ProductsPositionProductParts ListModular Icemaker Service SheetEnergy LabelUse & Care GuideInstallation InstructionsService & Wiring Sheet2Fitting, Water Tube3WP488878 Whirlpool Refrigerator Tube Clamp44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip6Wire Clip7Tube, Water (To Ice Maker)8WP1106508 Whirlpool Refrigerator Gasket9WP487627 Whirlpool Refrigerator Sleeve10W10853654 Whirlpool Water Inlet Valve11WP627018 Whirlpool Refrigerator Nut12Wire Connector13Water Valve, Harness148003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit15489348 Whirlpool Refrigerator Tube Clamp16Clamp, Tube (2)17WP245183 Whirlpool Nut18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32Harness, Wiring33WP2256087 Whirlpool Refrigerator Bracket34Screw, 8-32 x 27/6436Water Inlet Tube37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw44Nut, Compression45Insert, Tube46Water Tube (Inlet)100Front Panel Kit (Black)100Top Grille Trim Kit (7-1/2``)100Front Panel Kit (Almond)100Stainless Steel100Top Grille Trim Kit (8``)1004317943 Whirlpool Refrigerator Ice Maker Assembly100Front Panel Kit (White)100Black Acrylic Static Cleaner
