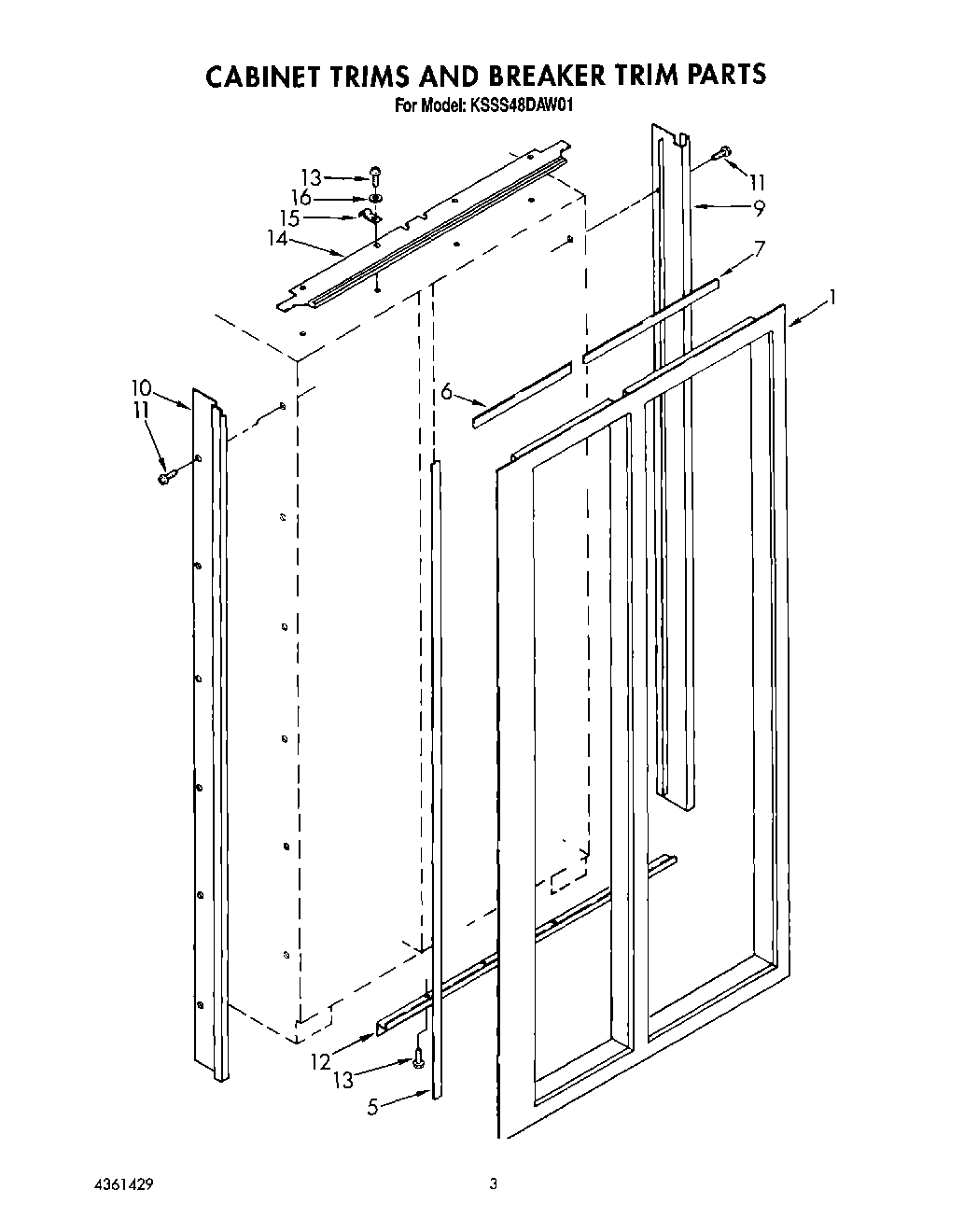

KSSS48DAW01 02 – CABINET TRIMS AND BREAKER TRIM

KSSS48DAW01 02 – CABINET TRIMS AND BREAKER TRIM

Written by

in

KSSS48DAW01 02 – CABINET TRIMS AND BREAKER TRIM

Products

PositionProduct
1Breaker Trim & Retainer Assembly
5Magnet, Side (4)
6Magnet, Refrigerator (2)
7Magnet, Refrigerator (2)
9Cabinet, Trim R.S
10Cabinet, Trim L.S
11Screw
12Cabinet, Trim (Bottom)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Cabinet, Trim Top
15Retainer, Unit Base (2)
16W10903204 Whirlpool Refrigerator Washer
