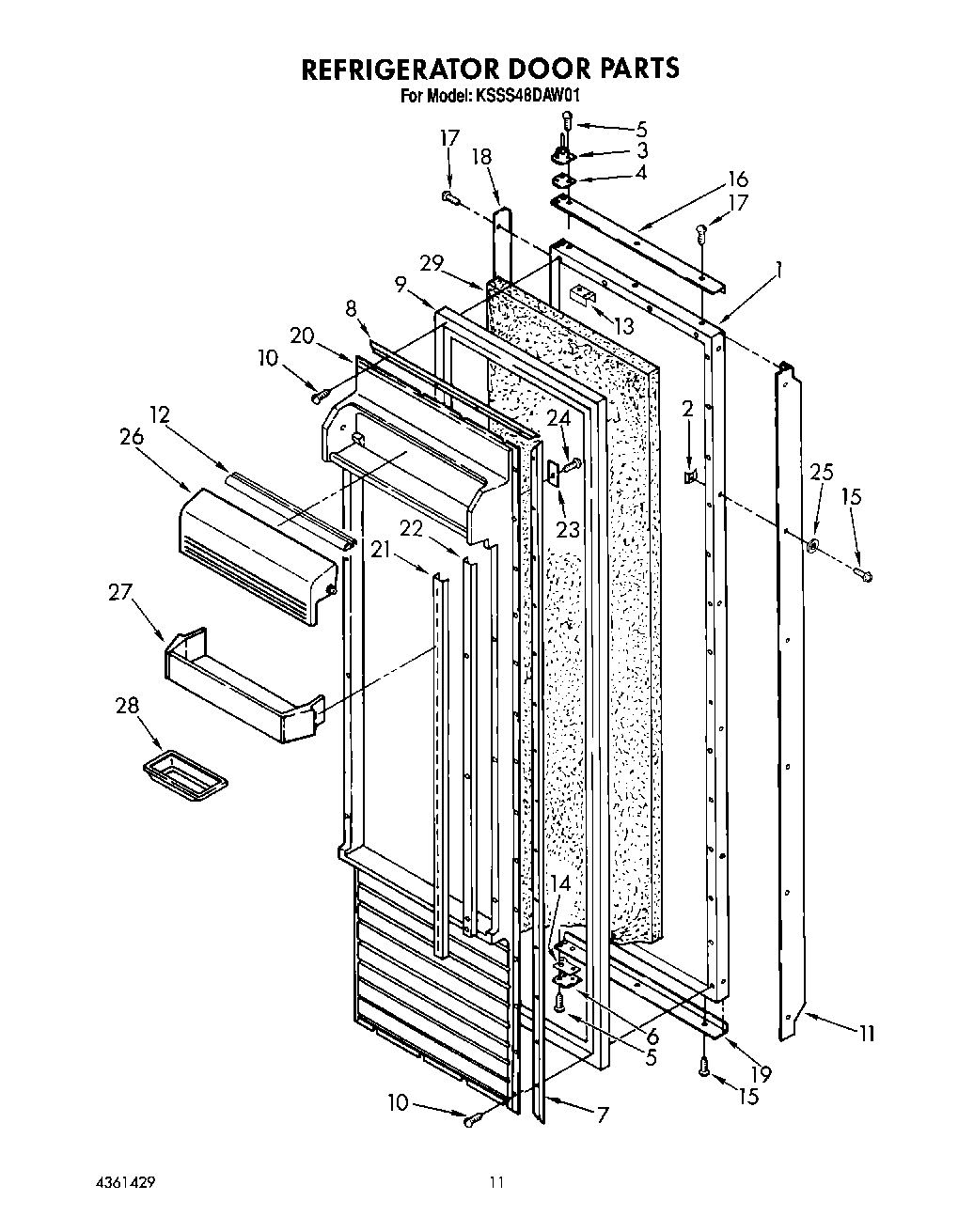

KSSS48DAW01 08 – REFRIGERATOR DOOR

KSSS48DAW01 08 – REFRIGERATOR DOOR

Written by

in

KSSS48DAW01 08 – REFRIGERATOR DOOR

Products

PositionProduct
1Door Panel, Refrigerator (Also Order Item 29)
2WP939101 Whirlpool Refrigerator Plate
3Hinge Assembly, Top
4Spacer, Top
5W11474472 Whirlpool Screw
6Hinge Assembly, Bottom
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188321A Whirlpool Refrigerator Door Gasket
10WP489069 Whirlpool Compactor Screw
11Handle, Door
12Gasket Utility Door
13Tap, Plate
14Spacer, Bottom
15Screw (White)
16Trim (Top)
17Screw
18Trim (Side)
19Trim (Bottom)
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
25Washer
26Door, Utility Bin
27Door Shelf (4)
28Butter, Tray
29WPL 876029
