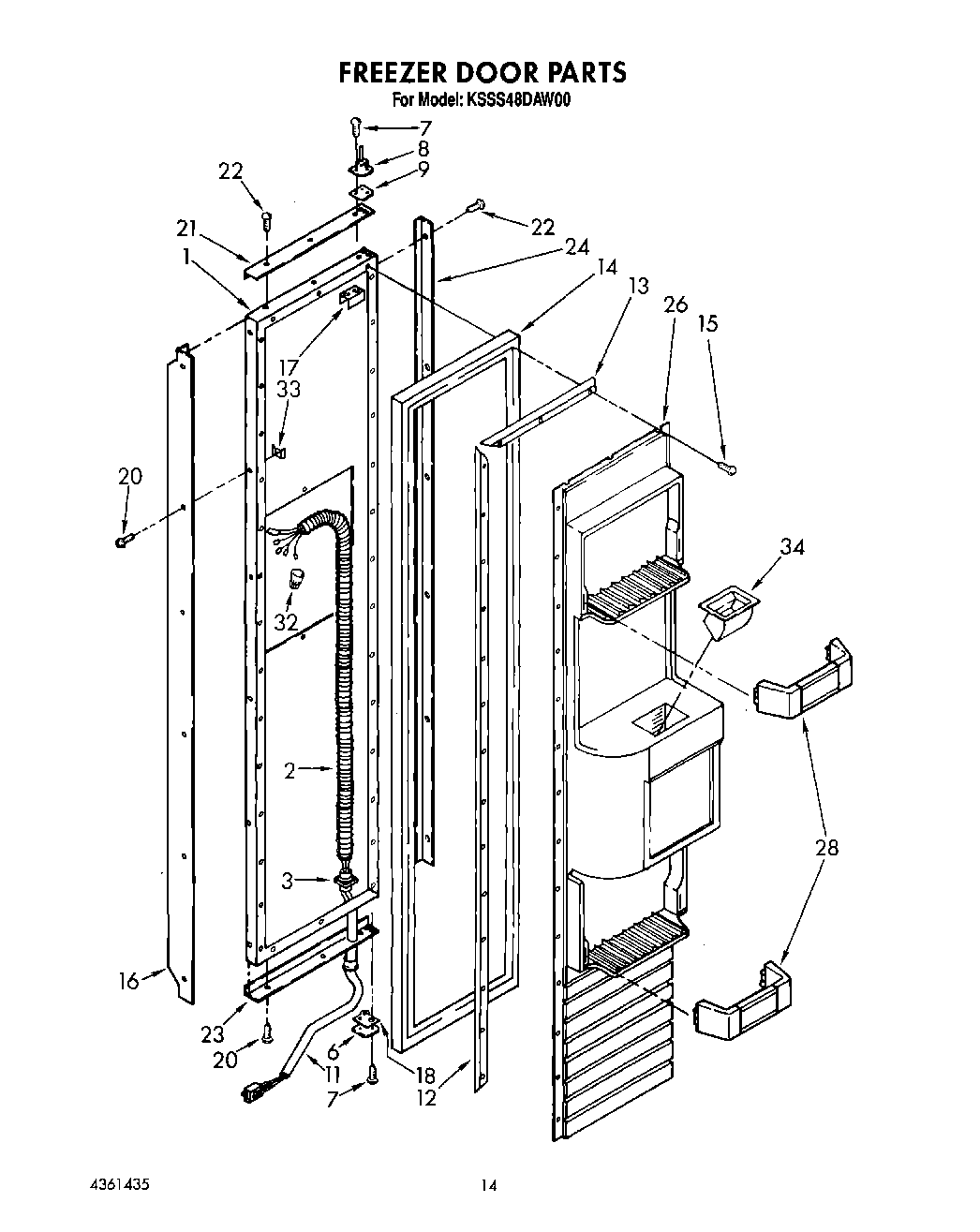

KSSS48DAX00 11 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel, Freezer (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer, Top
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188319A Whirlpool Refrigerator Door Gasket
15	WP489069 Whirlpool Compactor Screw
16	Handle, Door
17	Tap, Plate
18	Spacer, Bottom
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim (Top)
22	Screw, 6-32 x 1/2
23	Trim (Bottom)
24	Trim (Side)
26	Panel, Interior Door
28	Door Shelf, Trim Assembly
32	Wire Connector
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
