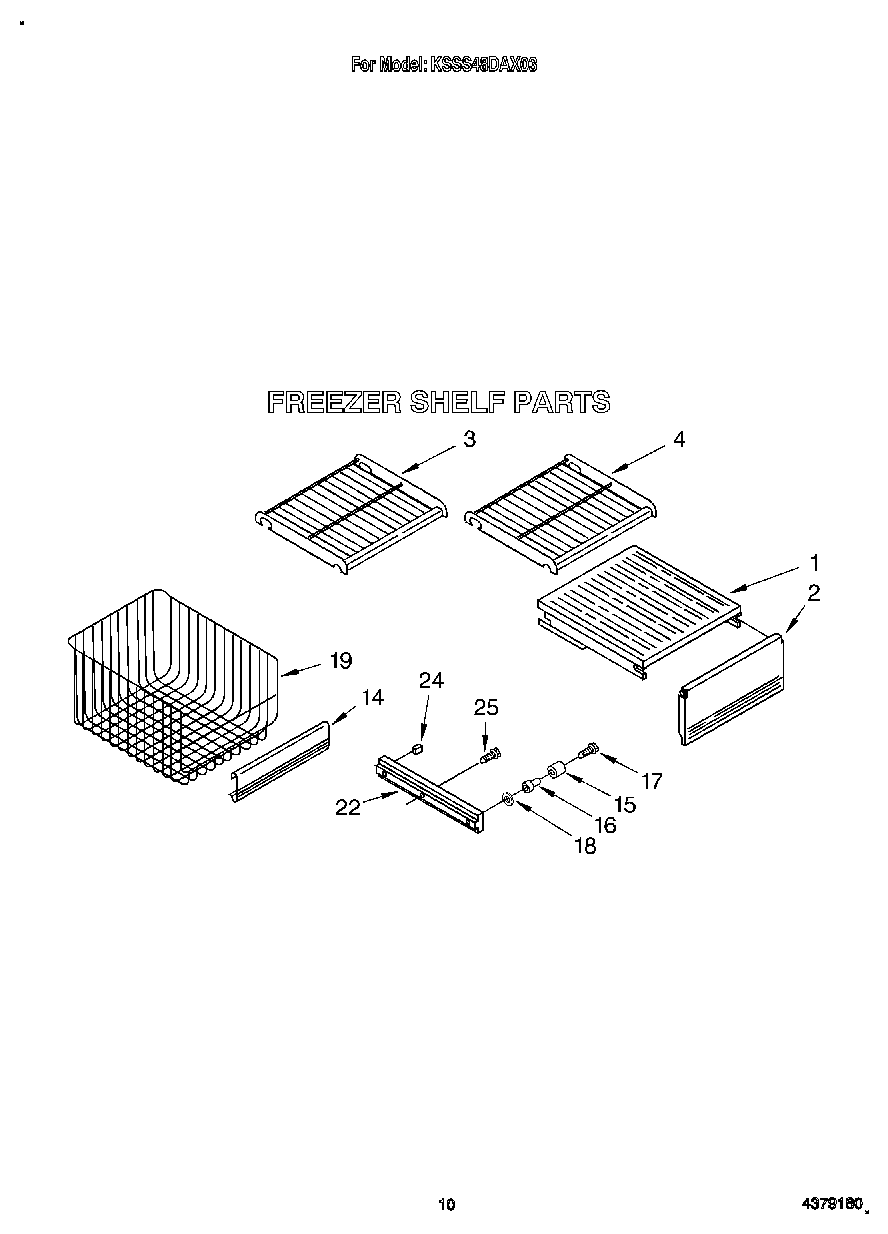

KSSS48DAX03 07 – FREEZER SHELF

Written by

Products

Position	Product
1	Solid Shelf
2	Front, Ice Compartment
3	Shelf, Fixed (Large)
4	Shelf, Fixed (2)
14	Trim, Basket
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	Basket (2)
22	Basket Slide (Left Side)
22	Basket Slide (Right Side)
24	Roller Stop
25	W11624204 Whirlpool Screw
