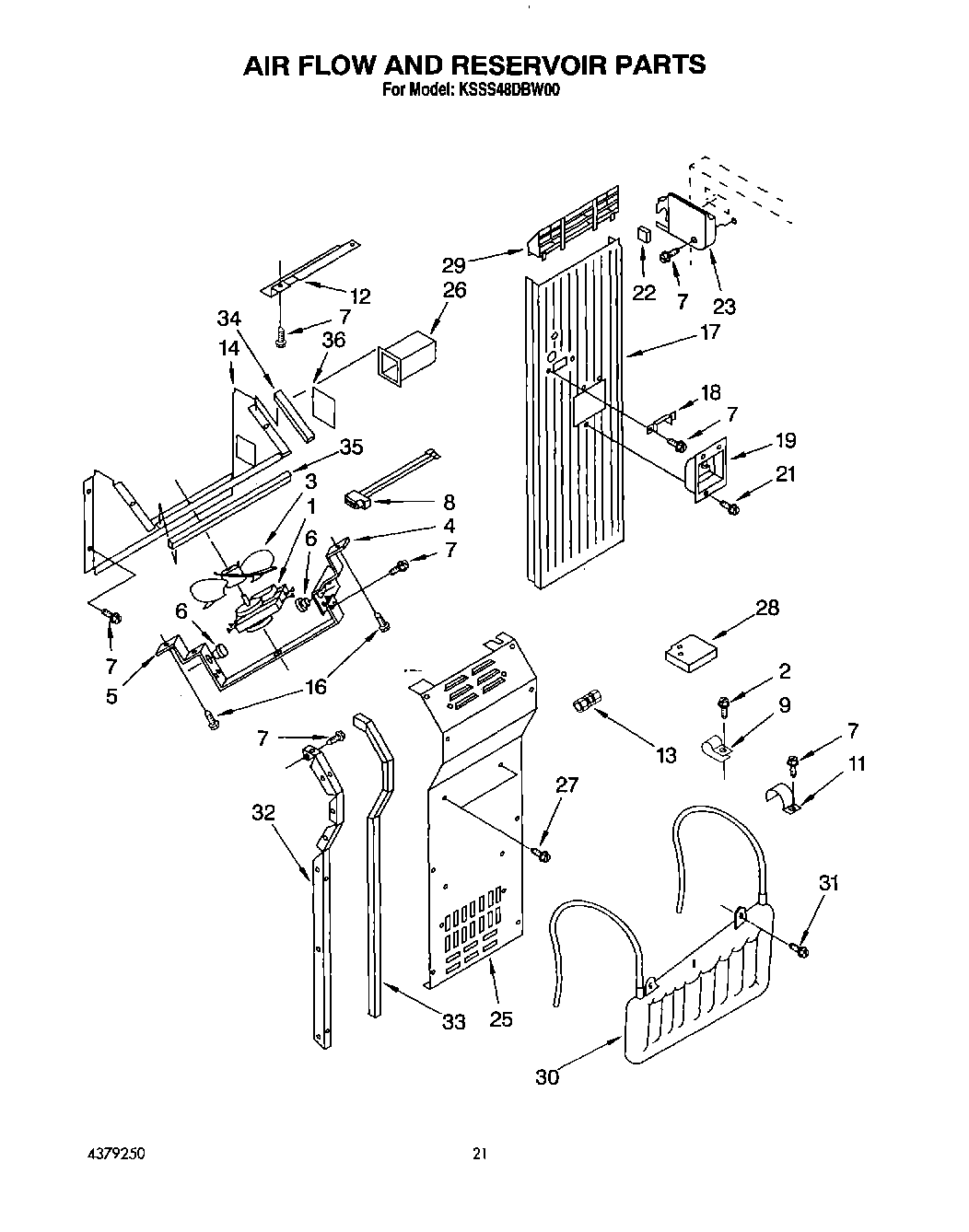

KSSS48DBW00 12 – AIR FLOW AND RESERVOIR

KSSS48DBW00 12 – AIR FLOW AND RESERVOIR

Written by

in

KSSS48DBW00 12 – AIR FLOW AND RESERVOIR

Products

PositionProduct
1MOTOR-EVAP
2SCREW
3WP2169142 Whirlpool Fan Blade
4Fan, Bracket Double
5Fan Bracket, Single
6Grommet (3)
7W11624204 Whirlpool Screw
8Wiring Harness, Fan Motor
9WP488366 Whirlpool Refrigerator Clamp
11489348 Whirlpool Refrigerator Tube Clamp
12Channel, Wiring
13WP4211117 Whirlpool Refrigerator Connector
14Scroll, Fan
16WP489069 Whirlpool Compactor Screw
17Assembly, Air Duct
18Air Deflector, Icemaker
19Cup, Motor
21Fastener (3)
22Gasket, Air Baffle
23Cover, Air Outlet
25Cover, Evaporator
26Connector, Meat Pan Duct
27WP488729 Whirlpool Refrigerator Door Screw
28Baffle, Evaporator
29Diffuser, Air Duct
30WP2256126 Whirlpool Refrigerator Reservoir
31Screw (2)
32Evaporator, Cover Rail (Left Side)
32Evaporator, Cover Rail (Right Side)
33Gasket (2) Evaporator Cover
34Gasket (2)
35Gasket
36Gasket
