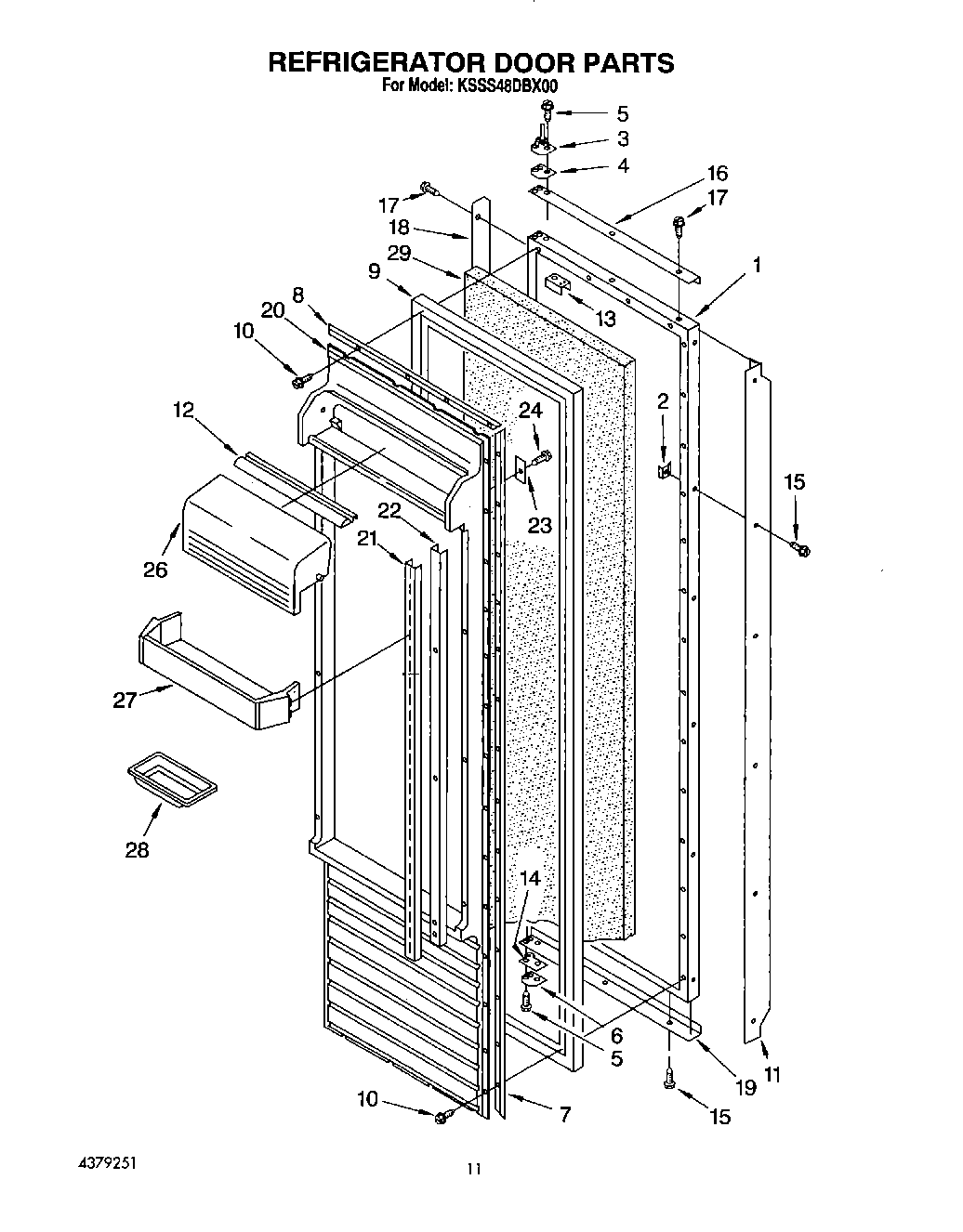

KSSS48DBX00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Door Panel, Refrigerator (Also Order Item 29)
2	WP939101 Whirlpool Refrigerator Plate
3	Hinge Assembly, Top
4	Spacer, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188321A Whirlpool Refrigerator Door Gasket
10	WP489069 Whirlpool Compactor Screw
11	Handle, Door
12	Gasket Utility Door
13	Tap, Plate
14	Spacer, Bottom
15	WP488729 Whirlpool Refrigerator Door Screw
16	Trim (Top)
17	Screw, 6-32 x 1/2
18	Trim (Side)
19	Trim (Bottom)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
26	Door, Utility Bin
27	Door Shelf (4)
28	Butter, Tray
29	WPL 876029
