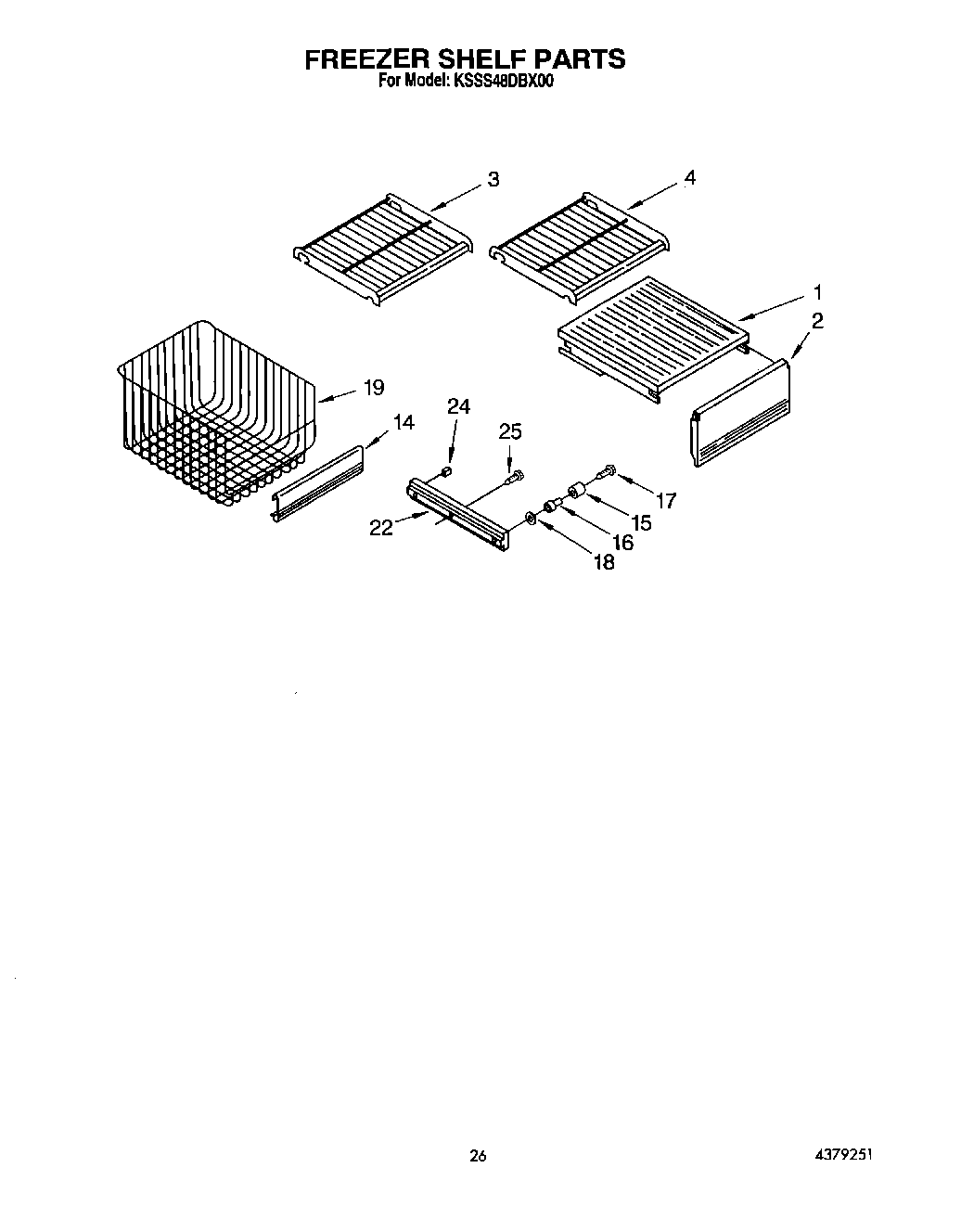

KSSS48DBX00 15 – FREEZER SHELF

KSSS48DBX00 15 – FREEZER SHELF

Written by

in

KSSS48DBX00 15 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Fixed (Large)
4Shelf, Fixed (2)
14Trim, Basket
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18Washer
19Basket (2)
22Basket Slide (Left Side)
22Basket Slide (Right Side)
24Roller Stop
25W11624204 Whirlpool Screw
