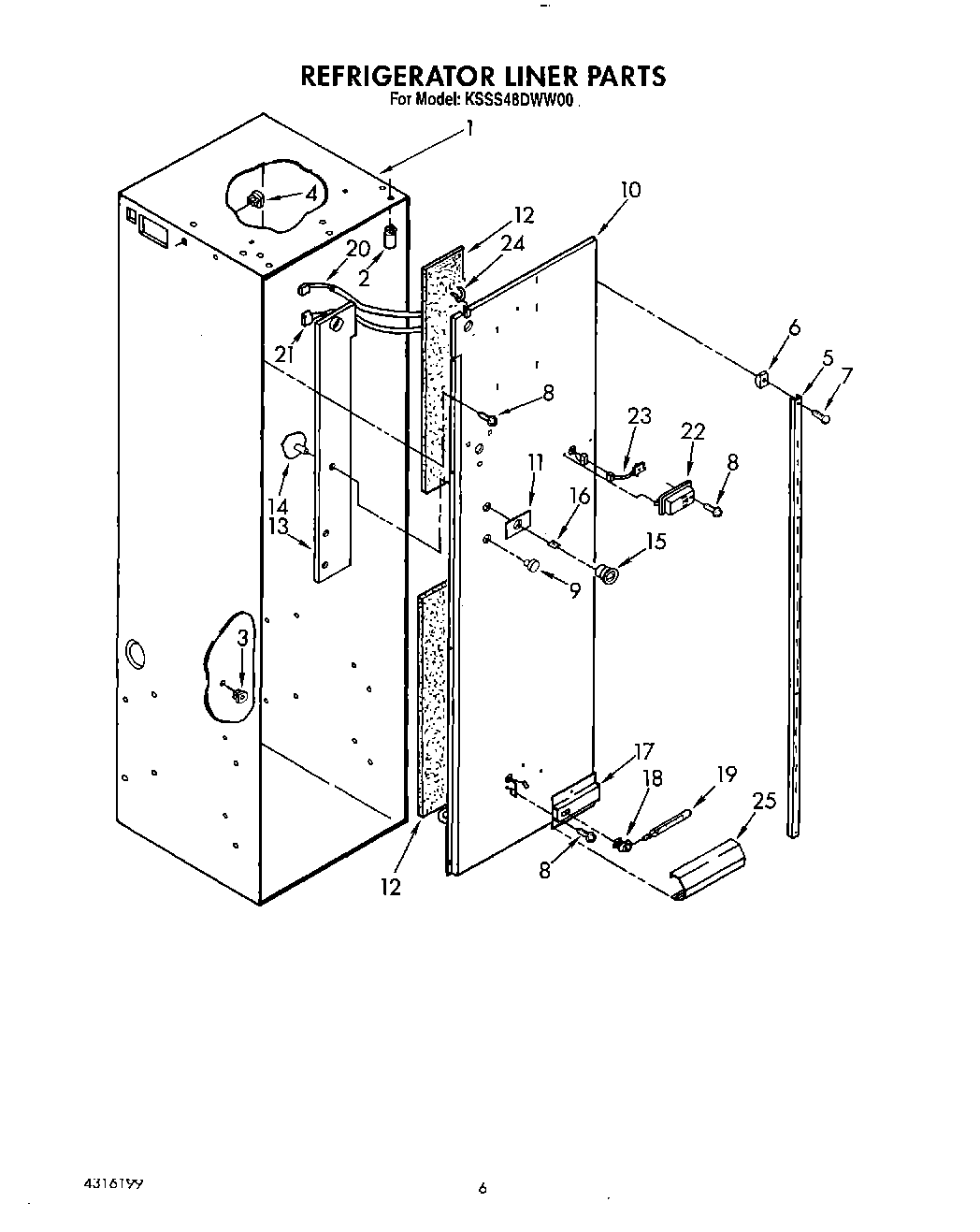

KSSS48DWW00 05 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer, Control Panel (3)
3	Grommet
4	Grommet
5	Ladder, Shelf (2)
6	520965 Whirlpool Refrigerator Support
7	Screw, 8 x 1-1/4 (3)
8	W11624204 Whirlpool Screw
9	Hole Plug
10	Cover, Liner Back
11	Control Panel Assembly (Meat)
12	Insulation, Liner Back Cover
13	Duct, Meat Pan
14	Damper Control, Meat Pan
15	Control Knob, Meat Pan
16	Knob, Retainer
17	Bracket, Light
18	Socket, Light
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Wiring Harness, Air Baffle
21	Wiring Harness, Light Socket
22	1116793 Whirlpool Refrigerator Cover
23	Thermistor
24	Flexible Grommet
25	Shield, Light
