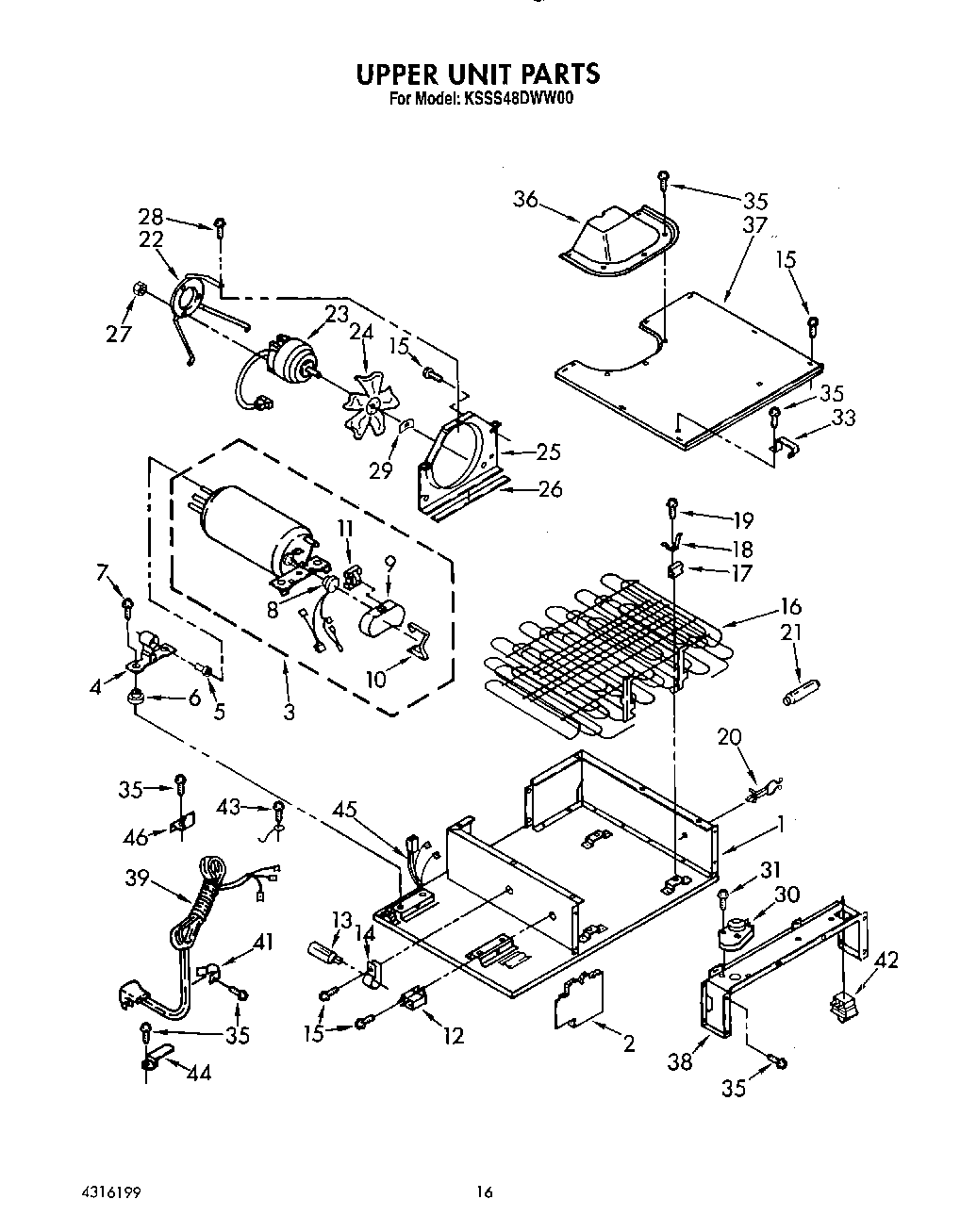

KSSS48DWW00 14 – UPPER UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT1113525
	WPL LIT1113514
	WPL LIT628107
	WPL LIT2000493
	WPL LIT2000146
	WPL LIT4316199
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10 & 11) (Also Order 876765 Tube Kit)
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload Production Only
8	Overload
9	Terminal Cover
10	Strap, Cover
11	Relay, (For Service Compressor Only)
12	Running Capacitor
13	Starting Capacitor
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
33	Clamp, Tube (2)
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
46	Front Panel Kit (Almond)
46	Front Panel Kit (Black)
46	Front Panel Kit (Stainless Steel)
46	VALVE, ACCESS (5/8“)
46	978027 Whirlpool Refrigerator Primary Valve
46	VALVE, ACCESS (1/2“)
46	Top Grille Trim Kit (8“)
46	Top Grille Trim Kit (7-1/2“)
46	978030 Whirlpool Refrigerator Valve
46	876764 Whirlpool Refrigerator Primary Valve
46	978026 Whirlpool Refrigerator Primary Valve
46	Stop
46	WP978025 Whirlpool Refrigerator Valve
46	Front Panel Kit (White)
