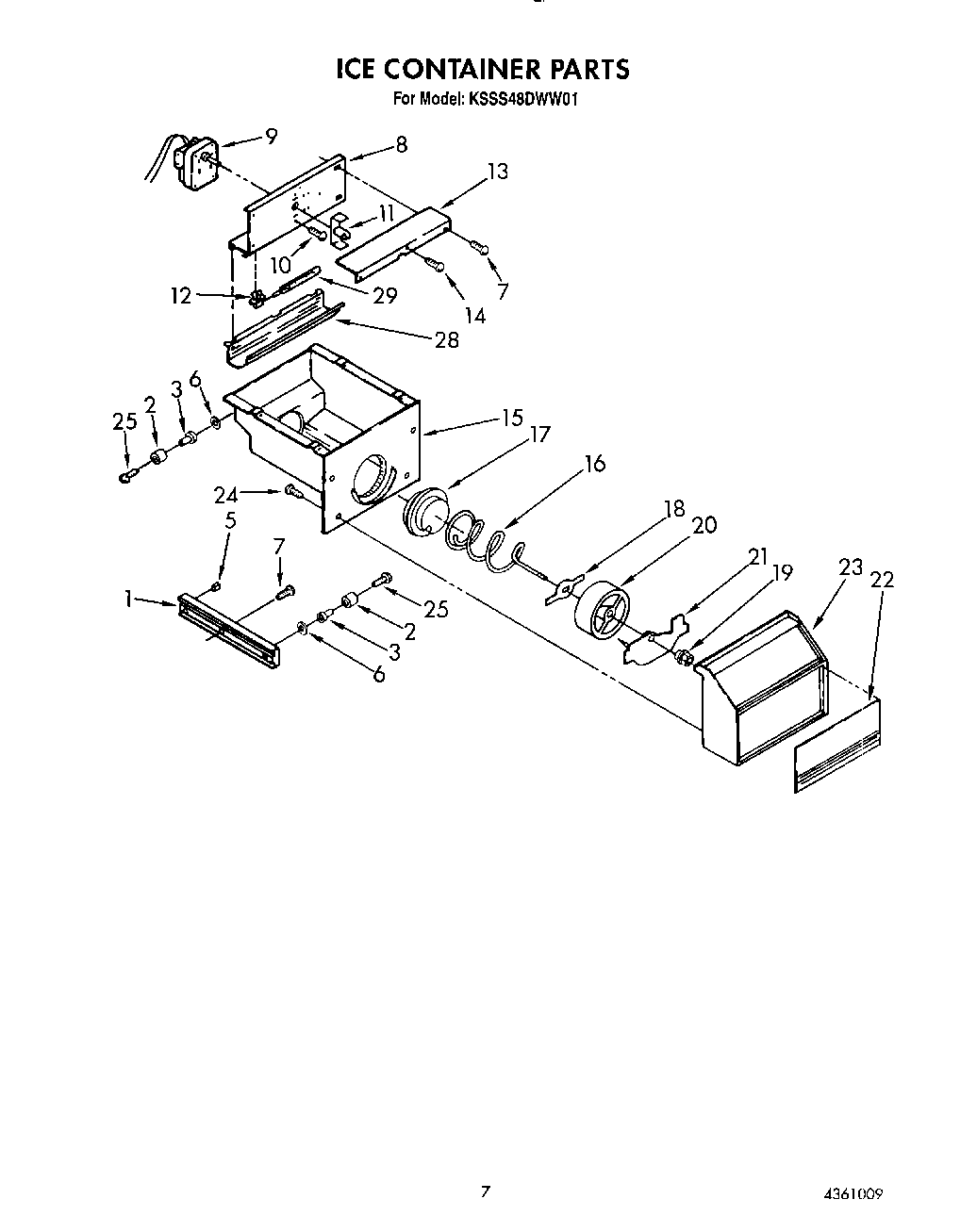

KSSS48DWW01 06 – ICE CONTAINER

Products

Position	Product
1	Spacer, Track (Right Side)
1	Spacer, Track (Left Side)
2	Roller
3	Eyelet, Roller
5	Roller Stop
6	Washer
7	W11624204 Whirlpool Screw
8	Bracket, Motor
9	Motor Assembly
10	303776 Whirlpool Dishwasher Screw
11	COUPLING AUGER MOTOR
12	Socket, Light
13	Cover, Motor
14	WP489128 Whirlpool Refrigerator Screw
15	Ice Container
16	Conveyor
17	W10749708 Whirlpool Refrigerator Coupling
18	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
19	Nut, Bearing
21	Baffle
22	Overlay, Cover
23	Front Cover
24	WP488787 Whirlpool Refrigerator Screw
25	WPW10272364 Whirlpool Refrigerator Screw
28	Lens, Dispenser
29	WP548049 Whirlpool Refrigerator Light Bulb
