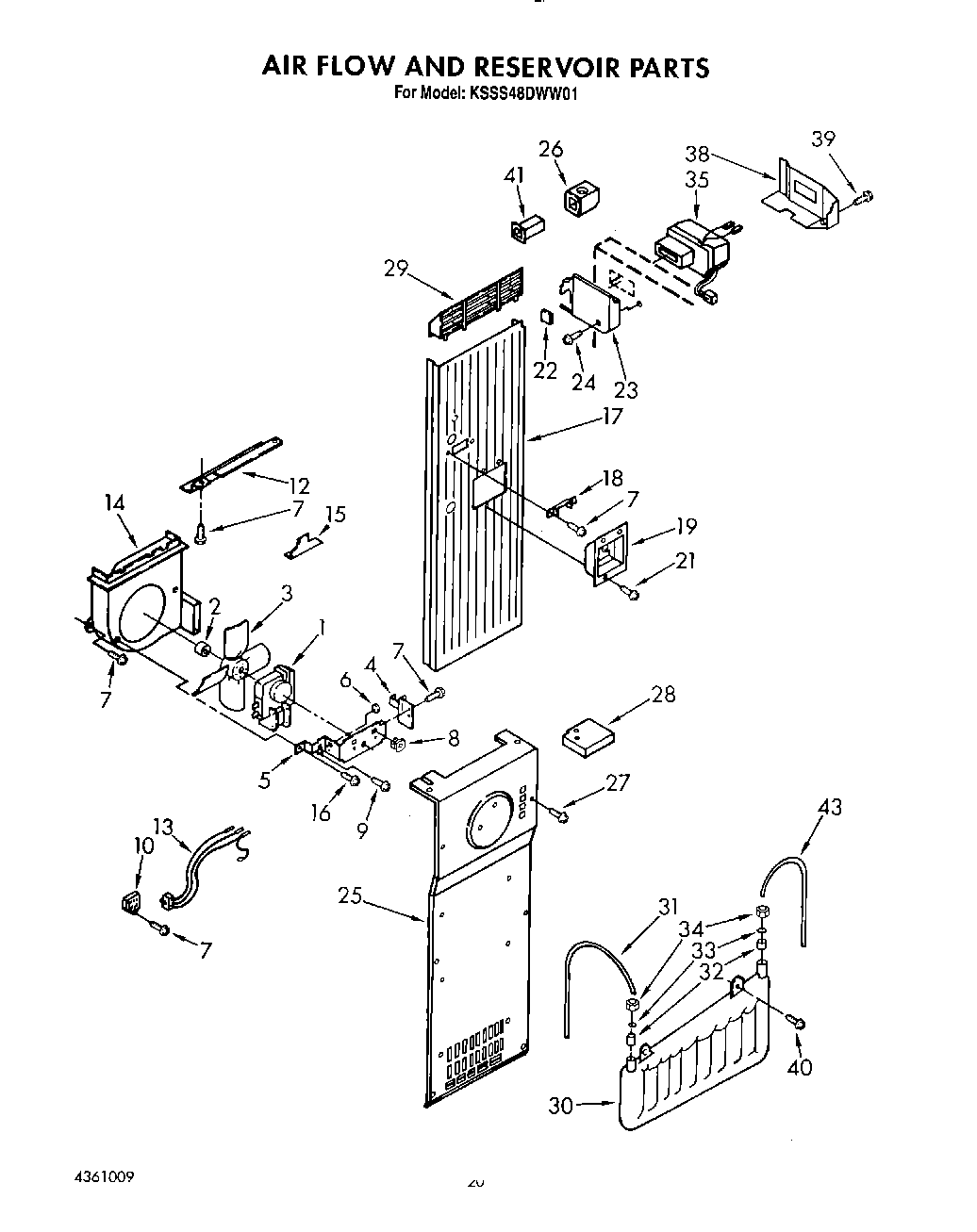

KSSS48DWW01 16 – AIR FLOW AND RESERVOIR

Products

Position	Product
1	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
2	Ring, Compression
3	Blade, Fan
4	Fan, Bracket Double
5	Fan Bracket, Single
6	Grommet (3)
8	Screw Grommet
9	WP489128 Whirlpool Refrigerator Screw
10	Terminal Block, Multiple
12	Channel, Wiring
13	Wiring Harness, Fan Motor
14	Scroll Fan
15	Shield, Scroll
16	WP489069 Whirlpool Compactor Screw
17	Assembly, Air Duct
18	Air Deflector, Icemaker
19	Cup, Motor
21	Fastener (3)
22	Gasket, Air Baffle
23	Cover, Air Outlet
24	W11624204 Whirlpool Screw
25	Cover, Evaporator
26	Connector, Meat Pan Duct
27	WP488729 Whirlpool Refrigerator Door Screw
28	Evaporator Baffle Cover
29	Diffuser, Air Duct
30	WP2256126 Whirlpool Refrigerator Reservoir
32	4387491 Whirlpool Refrigerator Insert
33	“O“ Ring Seal
34	Nut, Compression
35	Assembly, Air Baffle
38	Cover, Air Diffuser
39	WP489174 Whirlpool Refrigerator Screw
40	Screw, 8 x 1-1/2
41	Tube, Meat Pan
43	W10823511 Whirlpool Refrigerator Water Tube
