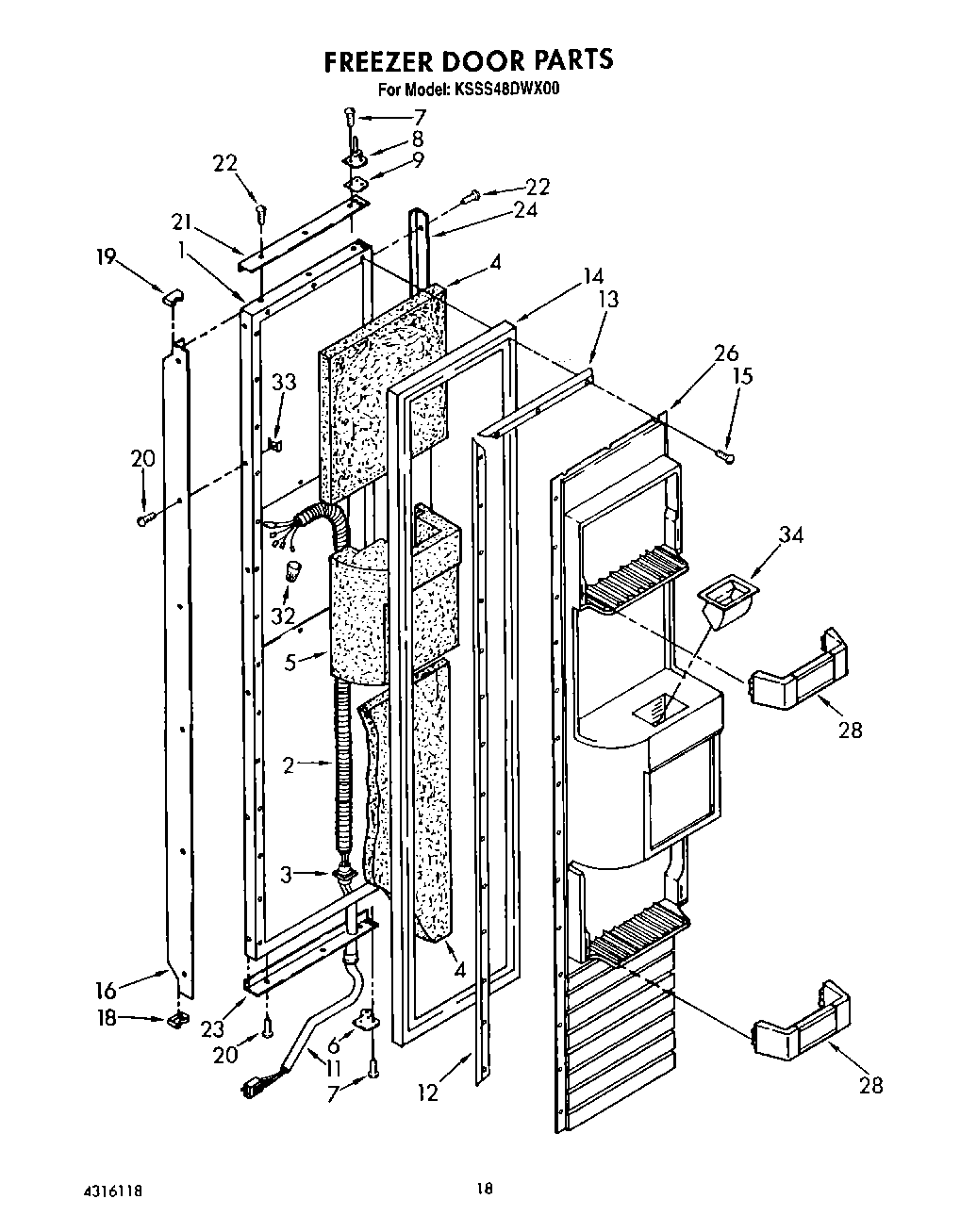

KSSS48DWX00 12 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Also Order Item 4)
2Tube, Wiring
3Retainer, Tube
4WPL 876029
5Insulation, Dispenser
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15WP489069 Whirlpool Compactor Screw
16Handle, Door
18End Cap (Bottom)
19End Cap (Top)
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
22Screw, 6-32 x 1/2
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28Door Shelf, Assembly
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
