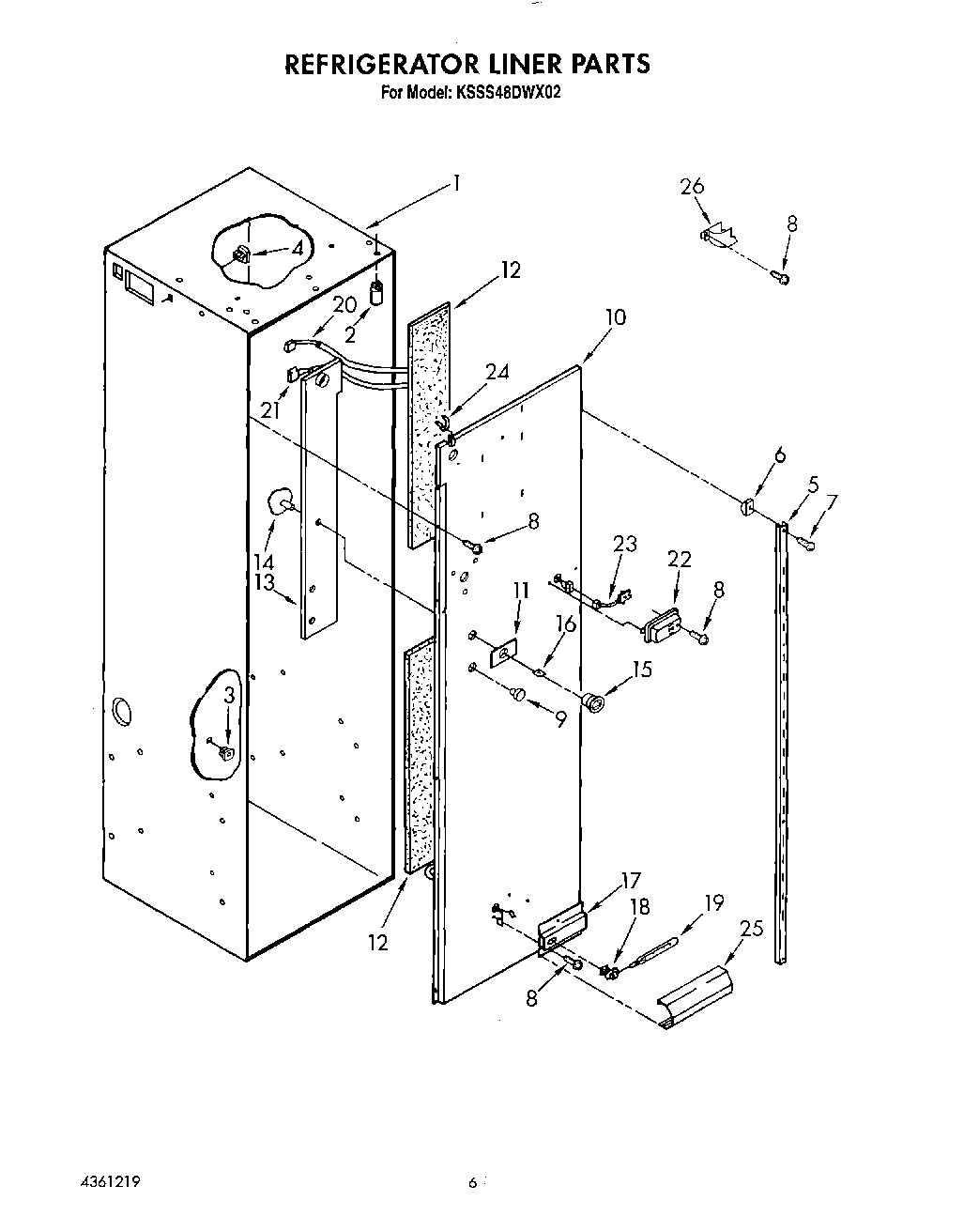

KSSS48DWX02 04 – REFRIGERATOR LINERadmin2025-04-26T12:11:26+00:00KSSS48DWX02 04 – REFRIGERATOR LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Spacer, Control Panel (3) |
| 3 | Grommet |
| 4 | Grommet |
| 5 | Ladder, Shelf (2) |
| 6 | 520965 Whirlpool Refrigerator Support |
| 7 | Screw, 8 x 1-1/4 (3) |
| 8 | W11624204 Whirlpool Screw |
| 9 | Hole Plug |
| 10 | Cover, Liner Back |
| 11 | Control Panel Assembly (Meat) |
| 12 | Insulation, Liner Back Cover |
| 13 | Duct, Meat Pan |
| 14 | Damper Control, Meat Pan |
| 15 | Control Knob, Meat Pan |
| 16 | Knob, Retainer |
| 17 | Bracket, Light |
| 18 | Socket, Light |
| 19 | WP548049 Whirlpool Refrigerator Light Bulb |
| 20 | Wiring Harness, Air Baffle |
| 21 | Wiring Harness, Light Socket |
| 22 | 1116793 Whirlpool Refrigerator Cover |
| 23 | Thermistor |
| 24 | Flexible Grommet |
| 25 | Shield, Light |
| 26 | 2003577 Whirlpool Refrigerator Guard |
