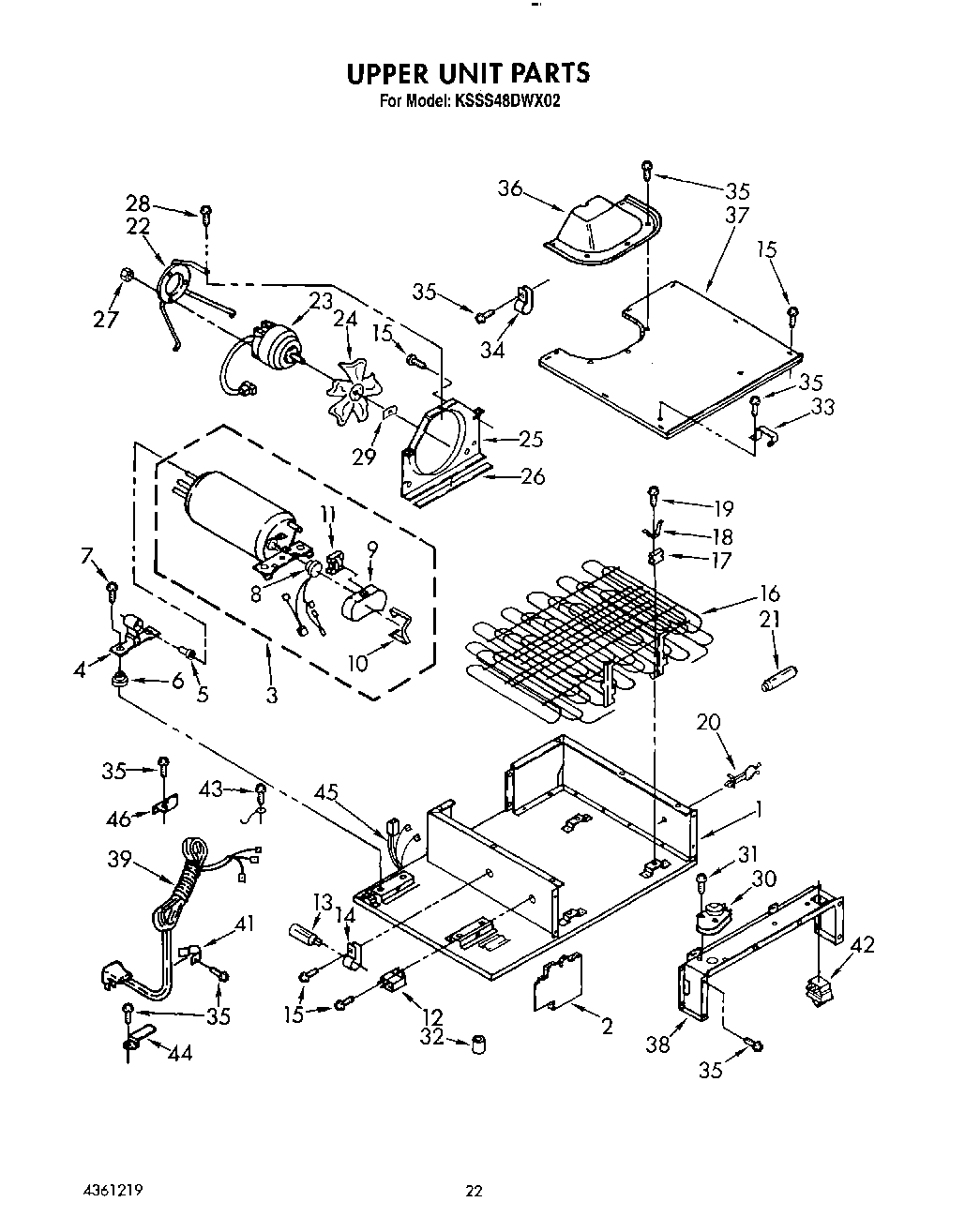

KSSS48DWX02 14 – UPPER UNIT, LIT/OPTIONAL

Written by

Products

Position	Product
	WPL LIT4361219
	WPL LIT200493
	WPL LIT2001258
	WPL LIT2000628
	WPL LIT628107
	WPL LIT1112406
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10 & 11) (Also Order 876765 Tube Kit)
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload
8	Overload
9	Terminal Cover
10	Strap, Cover
11	Relay, (For Service Compressor Only)
12	Running Capacitor
13	Starting Capacitor
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2)
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
46	Front Panel Kit (Stainless Steel)
46	Front Panel Kit (Almond)
46	Front Panel Kit (White)
46	VALVE, ACCESS (5/8“)
46	876764 Whirlpool Refrigerator Primary Valve
46	VALVE, ACCESS (1/2“)
46	WP978025 Whirlpool Refrigerator Valve
46	Stop
46	978030 Whirlpool Refrigerator Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	978026 Whirlpool Refrigerator Primary Valve
46	Top Grille Trim Kit (7-1/2“)
46	Top Grille Trim Kit (8“)
46	Front Panel Kit (Black)
