KSSS48DYW00 03 – CABINET TRIMS AND BREAKER TRIM

KSSS48DYW00 03 – CABINET TRIMS AND BREAKER TRIM

Written by

in

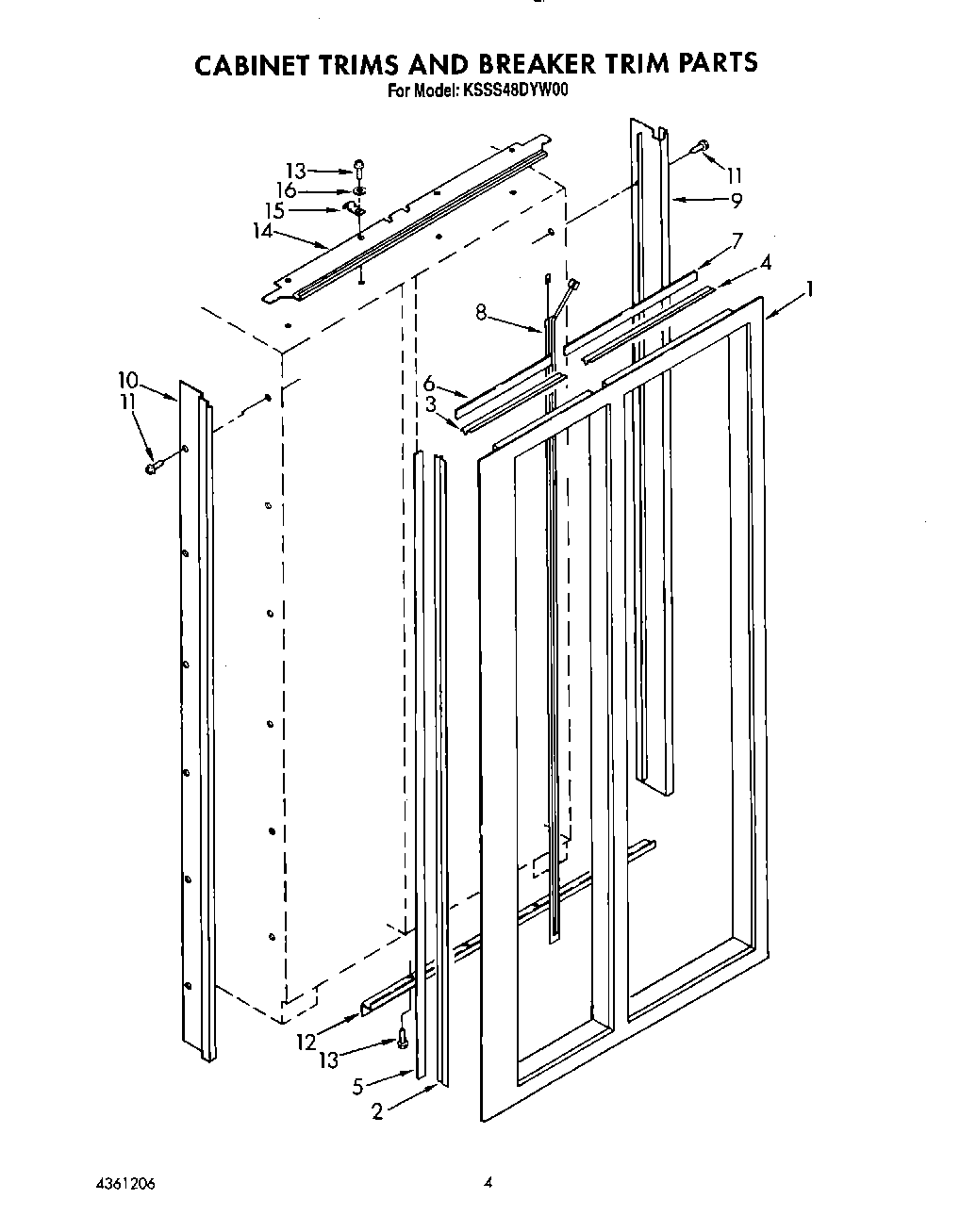

KSSS48DYW00 03 – CABINET TRIMS AND BREAKER TRIM

Products

PositionProduct
1Breaker Trim, (One Piece)
2Retainer, Side (4)
3Retainer Trim Freezer (2)
4Retainer Trim Refrigerator (2)
5Magnet, Side (4)
6Magnet, Refrigerator (2)
7Magnet, Refrigerator (2)
8Heater, Mullion
9Cabinet Trim R.S
10Cabinet Trim L.S
11Screw
11Repair, Screw
12Cabinet, Trim (Bottom)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Spacer Trim, Grille
15Retainer, Unit Base (2)
16W10903204 Whirlpool Refrigerator Washer
