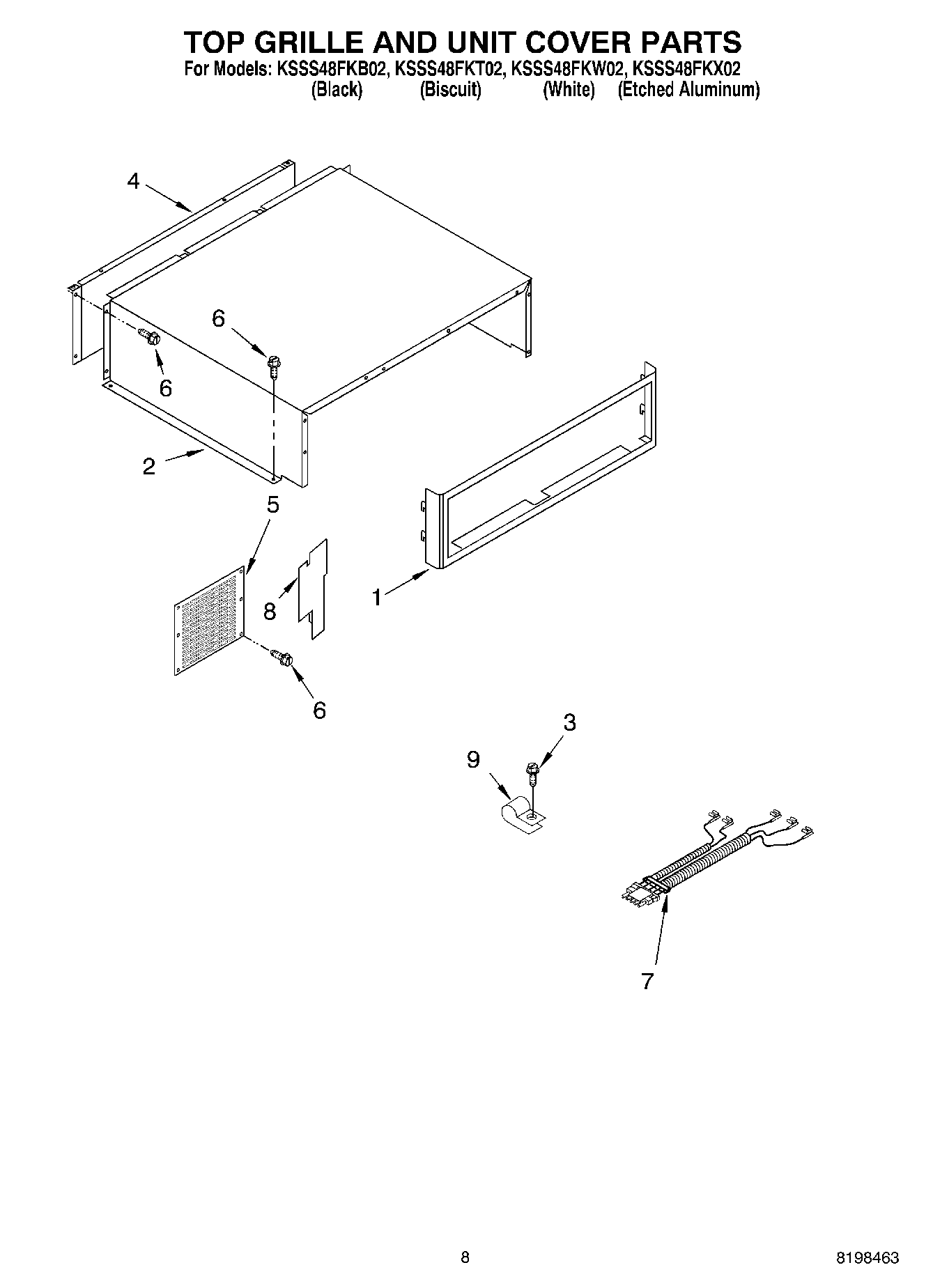

KSSS48FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3WP489069 Whirlpool Compactor Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
8Baffle-Air, Condenser
9488946 Whirlpool Air Conditioner Clamp
