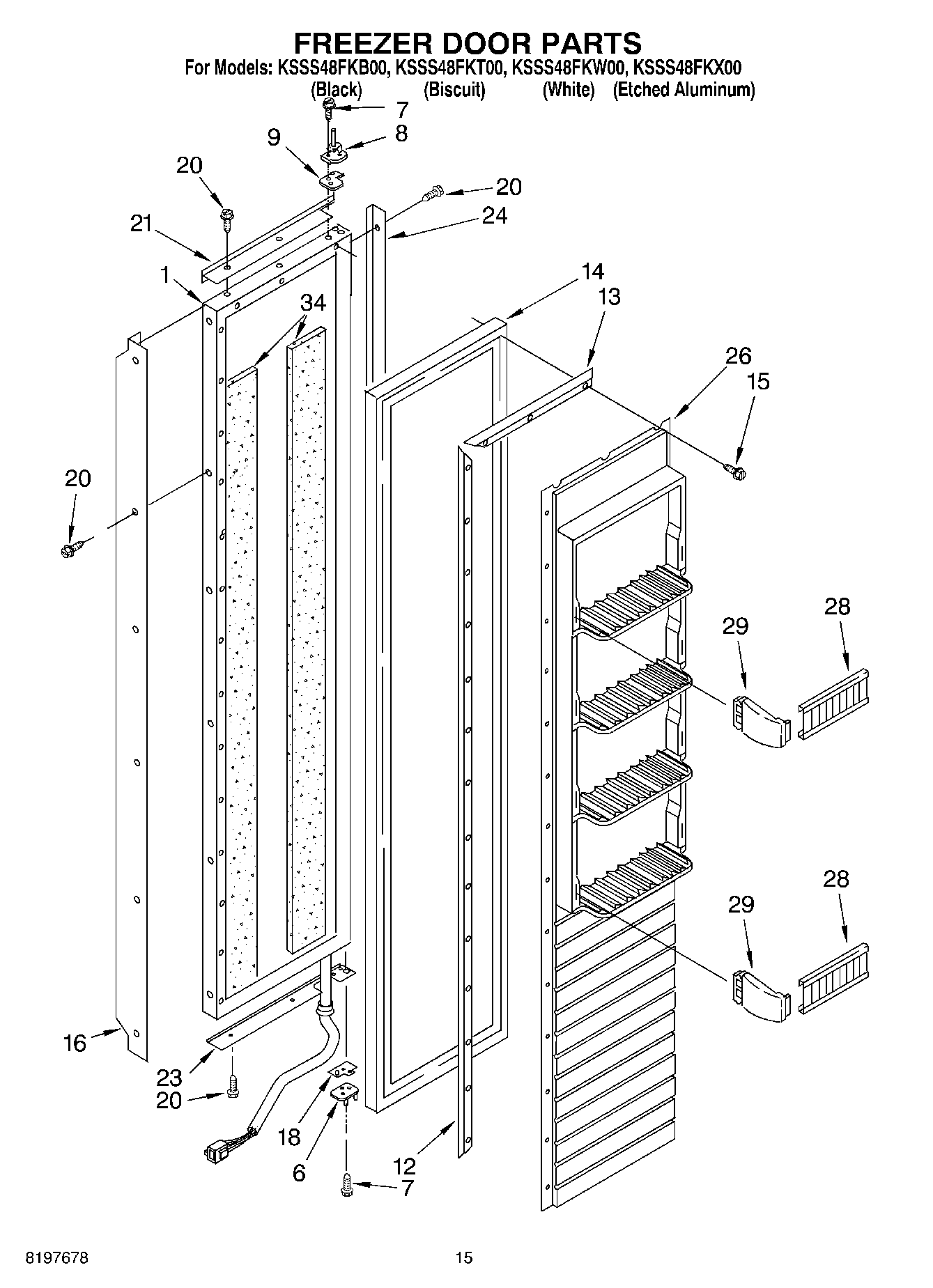

KSSS48FKT00 10 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door (Black)
16	Handle, Door (Etched Aluminum)
16	Handle, Door (Biscuit)
18	Door, Spacer
20	WP8281250 Whirlpool Refrigerator Screw
20	W10851443 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
20	Screw 8-15 x 1/2 (Biscuit)
21	Trim (Top) (Black)
21	Trim (Top) (Biscuit)
21	Trim (Top) (White)
21	Trim (Top)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (White)
24	Trim (Side) (Etched Aluminum)
24	Trim (Side) (White)
24	Trim (Side) (Biscuit)
24	Trim (Side) (Black)
26	Panel, Interior Door
28	Trim, Door Shelf
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Seal
