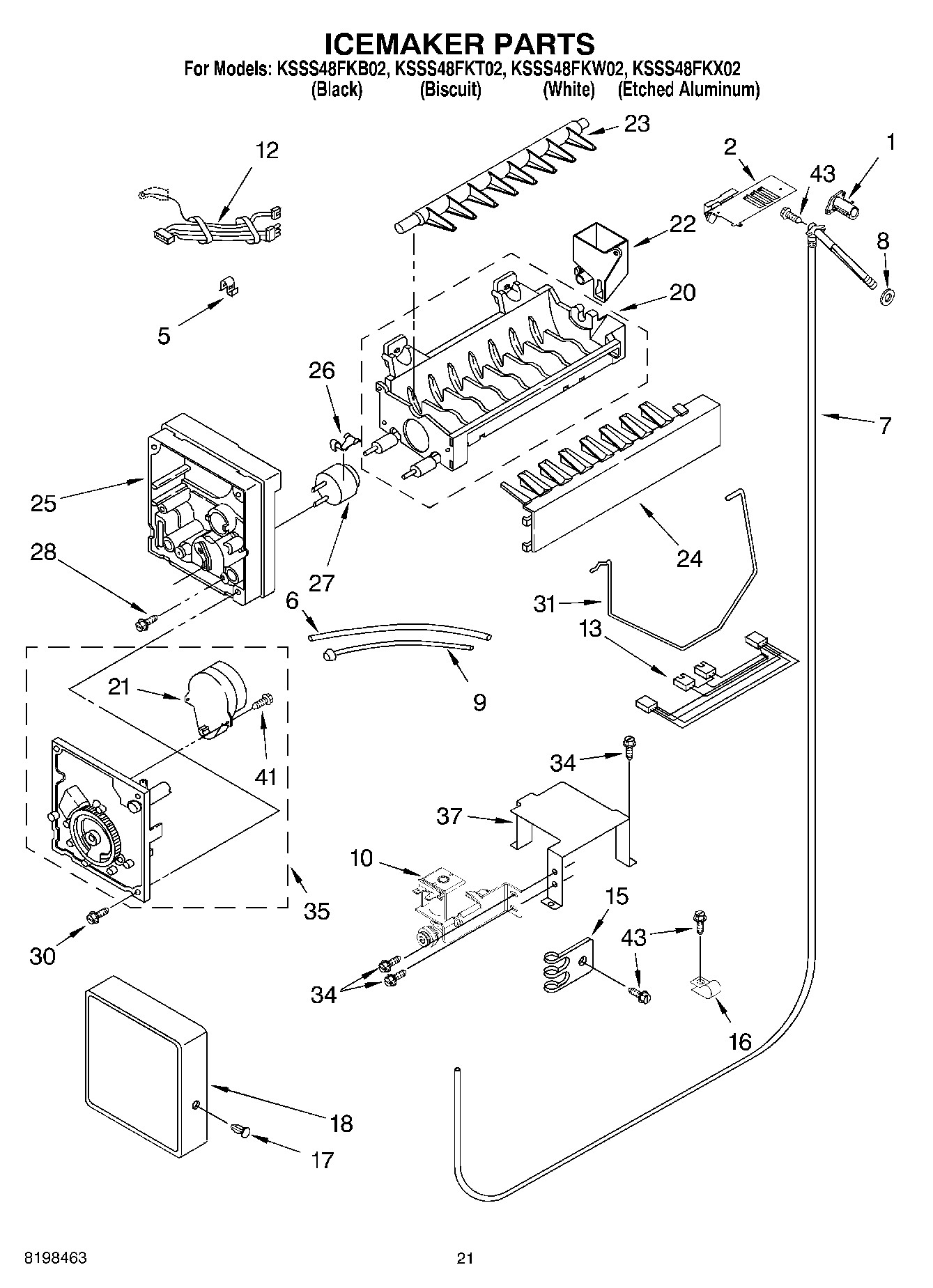

KSSS48FKT02 13 – ICEMAKER PARTS

Products

PositionProduct
1WP2221240 Whirlpool Refrigerator Heater
2WP2221231 Whirlpool Refrigerator Shield
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8WP1106508 Whirlpool Refrigerator Gasket
9Tube, Filter Outlet
10WP2313917 Whirlpool Refrigerator Inlet Valve
12Wire Assembly, Icemaker
13Water Valve, Harness
15WP488366 Whirlpool Refrigerator Clamp
16Clamp, Tube
17WP489115 Whirlpool Refrigerator Rivet
18Cover
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
34WP489464 Whirlpool Refrigerator Screw
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
100(Optional Parts Only)
100Front Panel Kit (Stainless Steel)
100Front Panel Kit (Biscuit)
100Front Panel Kit (Black)
100Front Panel Kit (White)
1004317943 Whirlpool Refrigerator Ice Maker Assembly
100FOLLOWING PARTS NOT ILLUSTRATED
