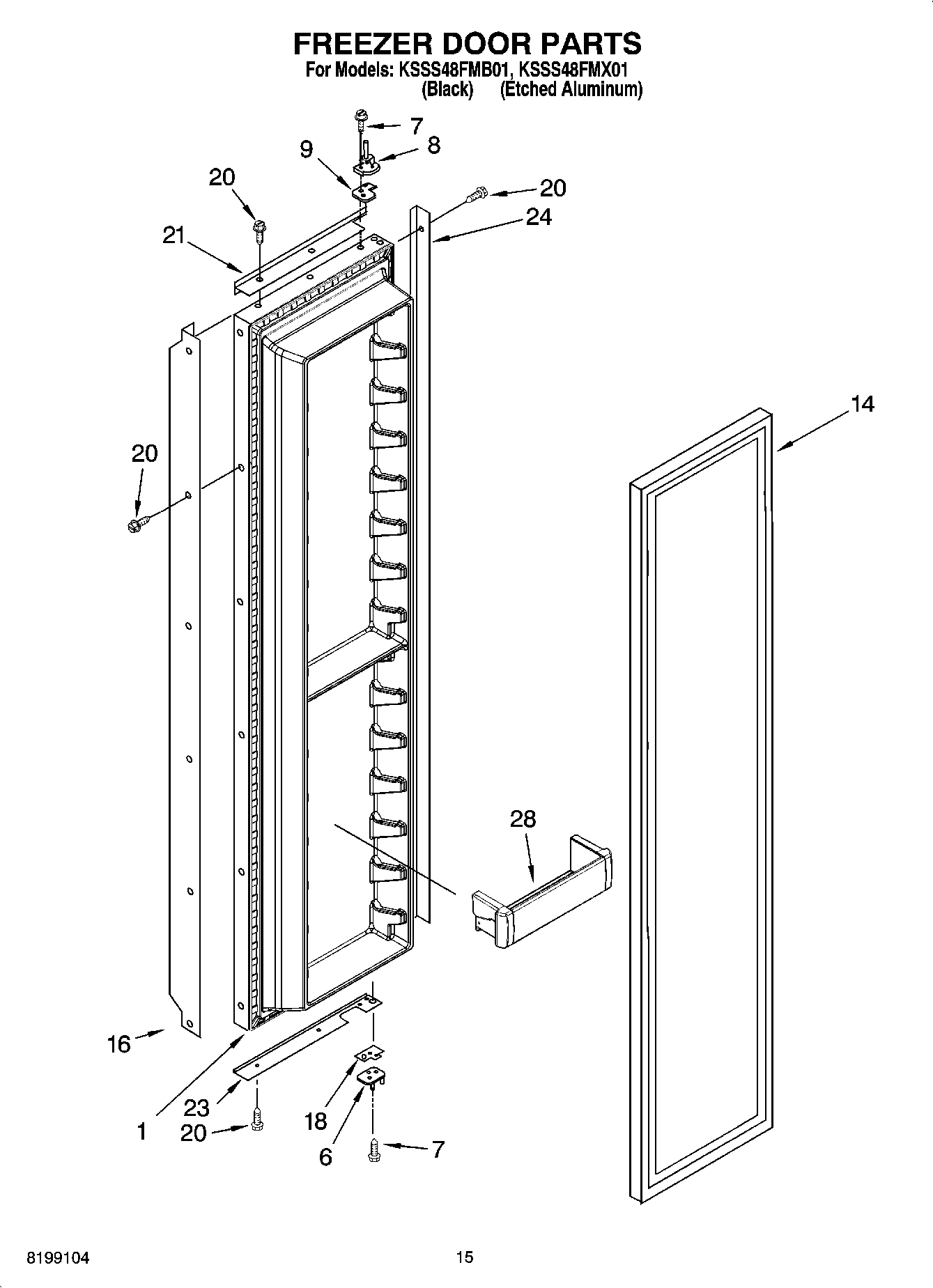

KSSS48FMB01 10 – FREEZER DOOR PARTS

KSSS48FMB01 10 – FREEZER DOOR PARTS

Written by

in

KSSS48FMB01 10 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 11)
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266901 Whirlpool Door Gasket
16Handle, Door (Etched Aluminum)
16Handle, Door (Black)
18Door Spacer, Bottom
20W10851443 Whirlpool Refrigerator Screw
20WP8281250 Whirlpool Refrigerator Screw
21Trim (Top)
21Trim (Top) (Black)
23Trim (Bottom) (Etched Aluminum)
23Trim (Bottom) (Black)
24Trim (Side) (Etched Aluminum)
24Trim (Side) (Black)
28W11590561 Whirlpool Refrigerator Cantilever Bin
28F.C. (6)
