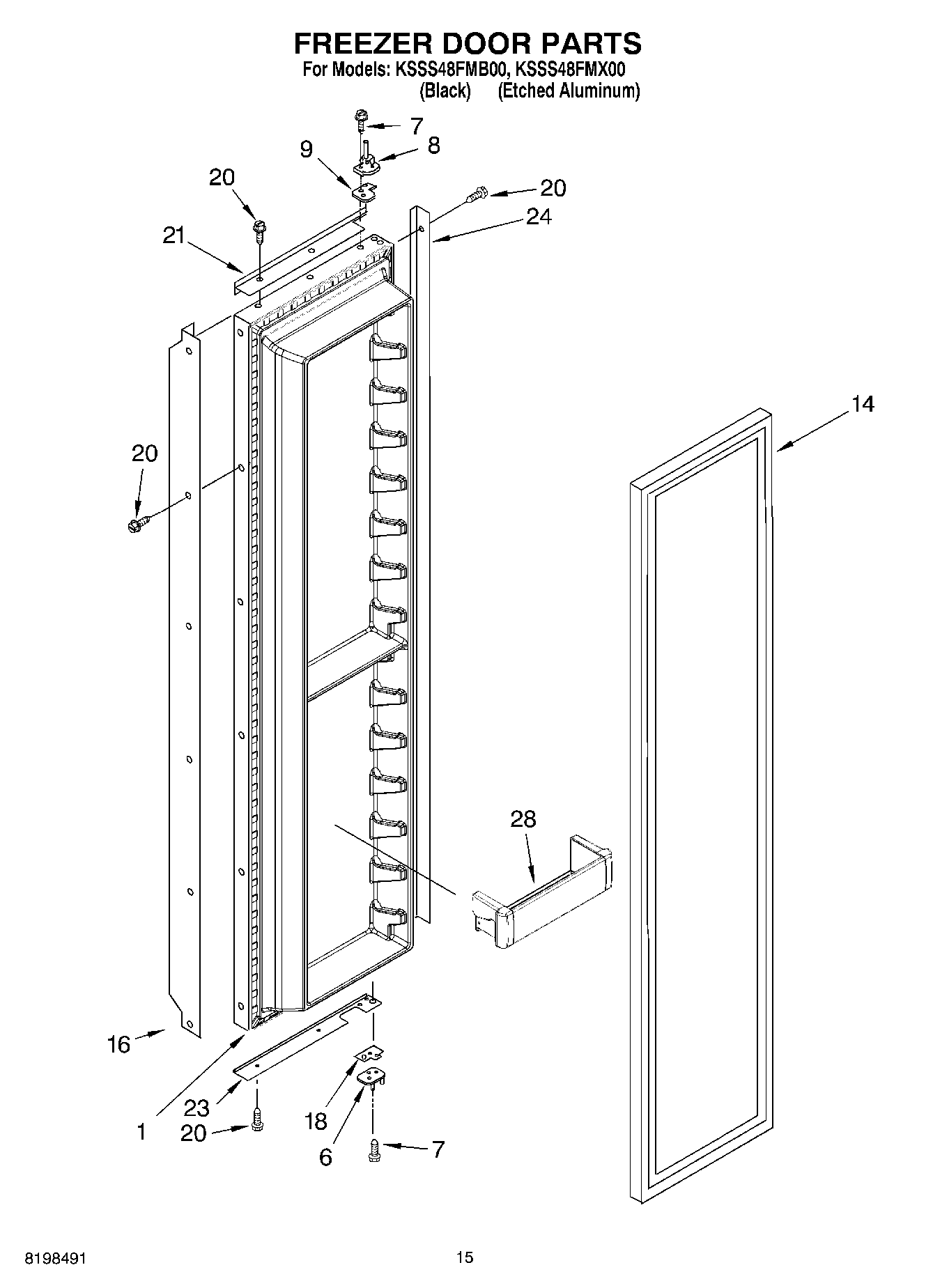

KSSS48FMX00 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 11)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	WP2266901 Whirlpool Door Gasket
16	Handle, Door (Etched Aluminum)
16	Handle, Door (Black)
18	Door Spacer, Bottom
20	W10851443 Whirlpool Refrigerator Screw
20	WP8281250 Whirlpool Refrigerator Screw
21	Trim (Top)
21	Trim (Top) (Black)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Black)
24	Trim (Side) (Etched Aluminum)
24	Trim (Side) (Black)
28	W11590561 Whirlpool Refrigerator Cantilever Bin
28	F.C. (6)
