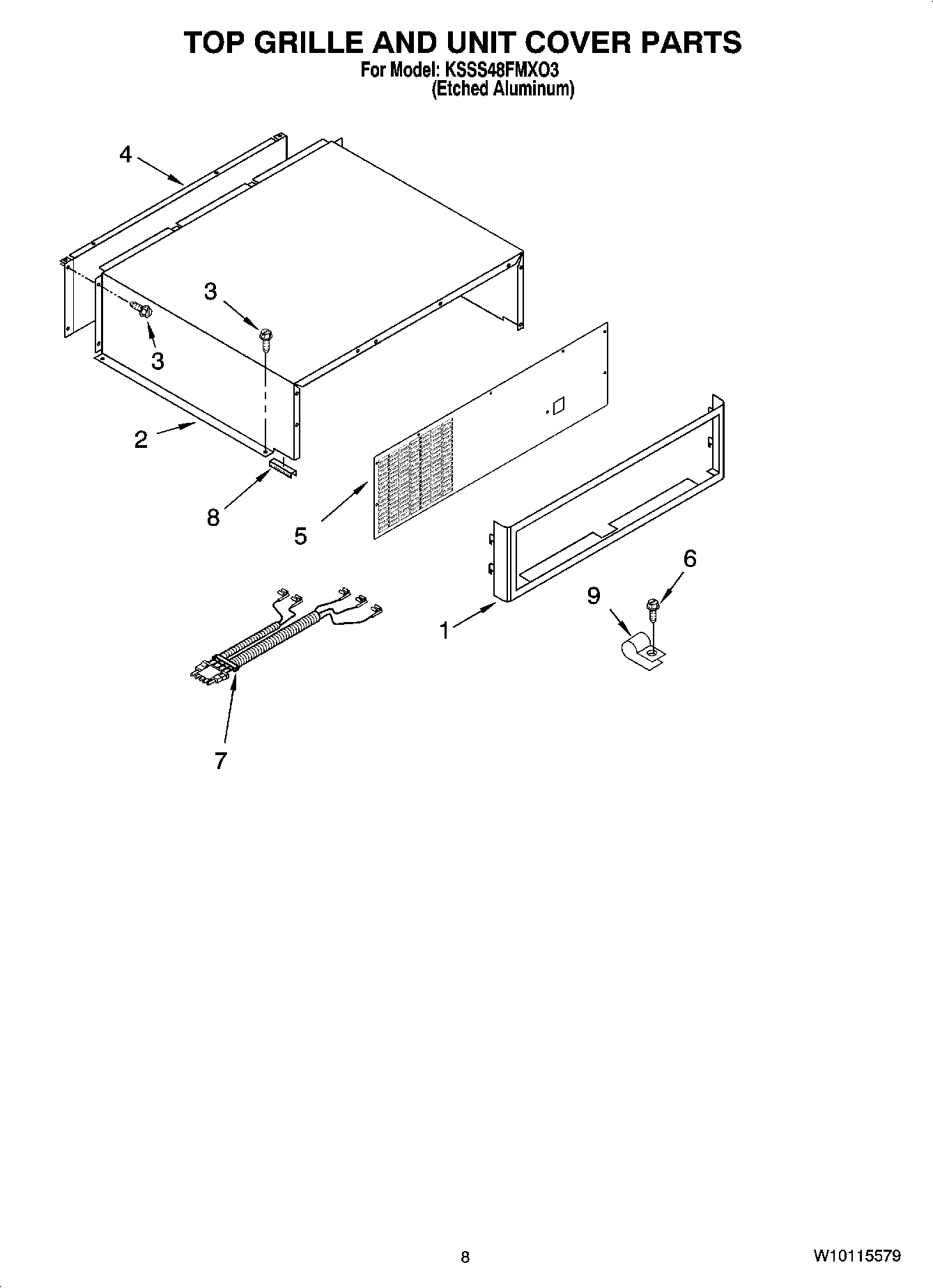

KSSS48FMXO3 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48FMXO3 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48FMXO3 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover-Unit, Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
82215910 Whirlpool Refrigerator Grommet
9489348 Whirlpool Refrigerator Tube Clamp
