KSSS48FMXO3 12 – LOWER UNIT AND TUBE PARTS
Written by
in

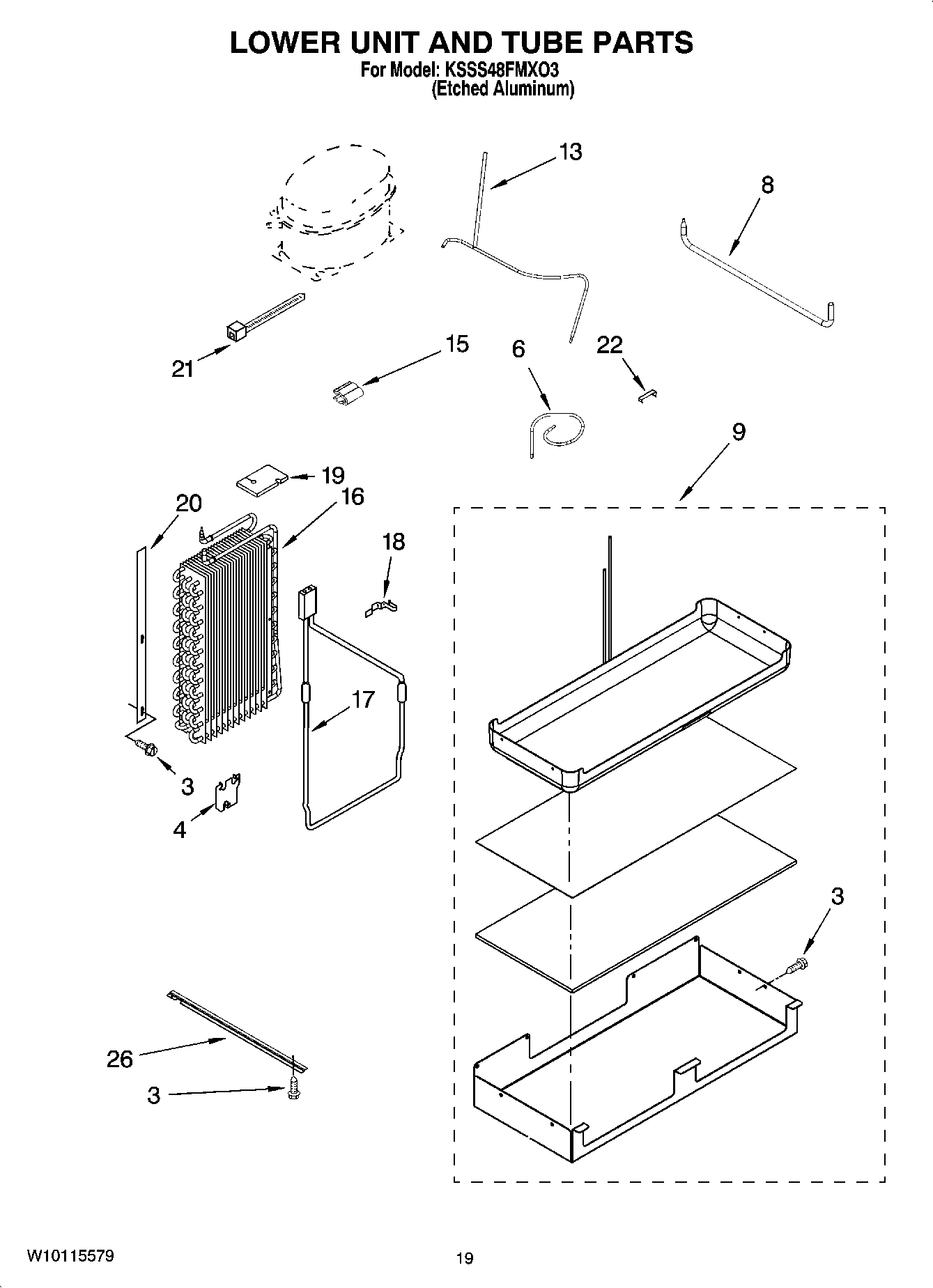

KSSS48FMXO3 12 – LOWER UNIT AND TUBE PARTS
Products
Position
Product
3
W11624204 Whirlpool Screw
4
Bracket
6
Suction Tube
8
Tube, Transition (Drier/Restrictor)
9
WPW10281063 Whirlpool Refrigerator Heater Pan
13
Tube, Discharge
15
9791833 Whirlpool Refrigerator Clip
16
WP2306094 Whirlpool Evaporator
17
WP2306389 Whirlpool Refrigerator Heater
18
1113048 Whirlpool Refrigerator Clamp
19
8201798 Whirlpool Refrigerator Fan Block
20
Gasket, Evaporator
21
WPW10339879 Whirlpool Wire Tie
22
W10169509 Whirlpool Refrigerator Clip
26
2320554 Whirlpool Bracket
←
