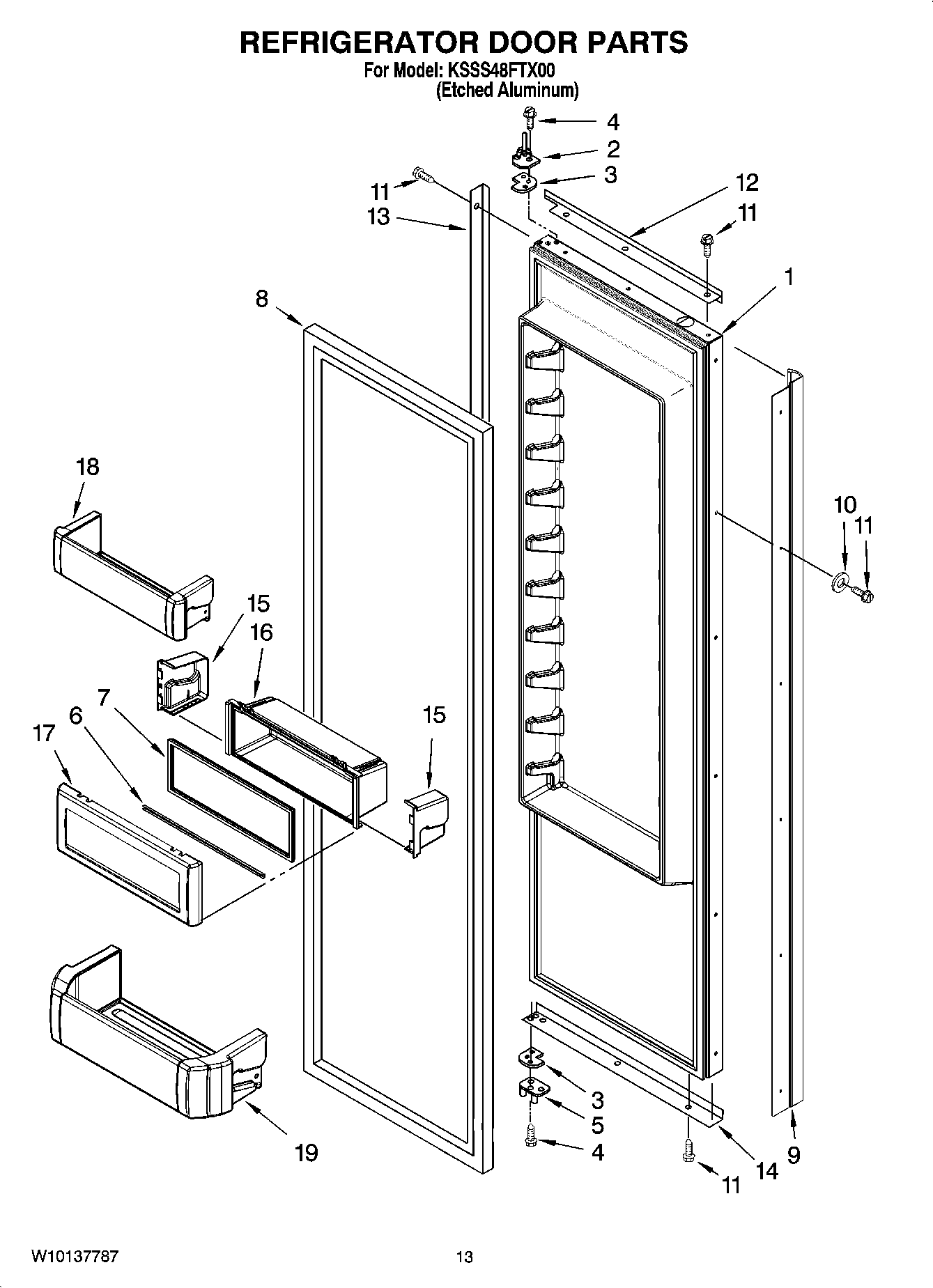

KSSS48FTX00 09 – REFRIGERATOR DOOR PARTS

KSSS48FTX00 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSS48FTX00 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
2W11724512 Whirlpool Door Hinge
3W11673500 Whirlpool Door Hinge
4W11474472 Whirlpool Screw
52302878 Whirlpool Refrigerator Door Hinge
6W11348580 Whirlpool Refrigerator Bin
8WP2266903 Whirlpool Refrigerator Door Gasket
9Handle, Door
10Washer
11WP8281250 Whirlpool Refrigerator Screw
12Trim-Door, Top
13Trim-Door, Side
14Trim-Door, Bottom
15WPW10323173 Whirlpool Refrigerator Retainer End Cap
15WPW10323172 Whirlpool Refrigerator Retainer End Cap
18BIN-CNTLVR
19W10323748 Whirlpool Refrigerator Cantilever Bin
