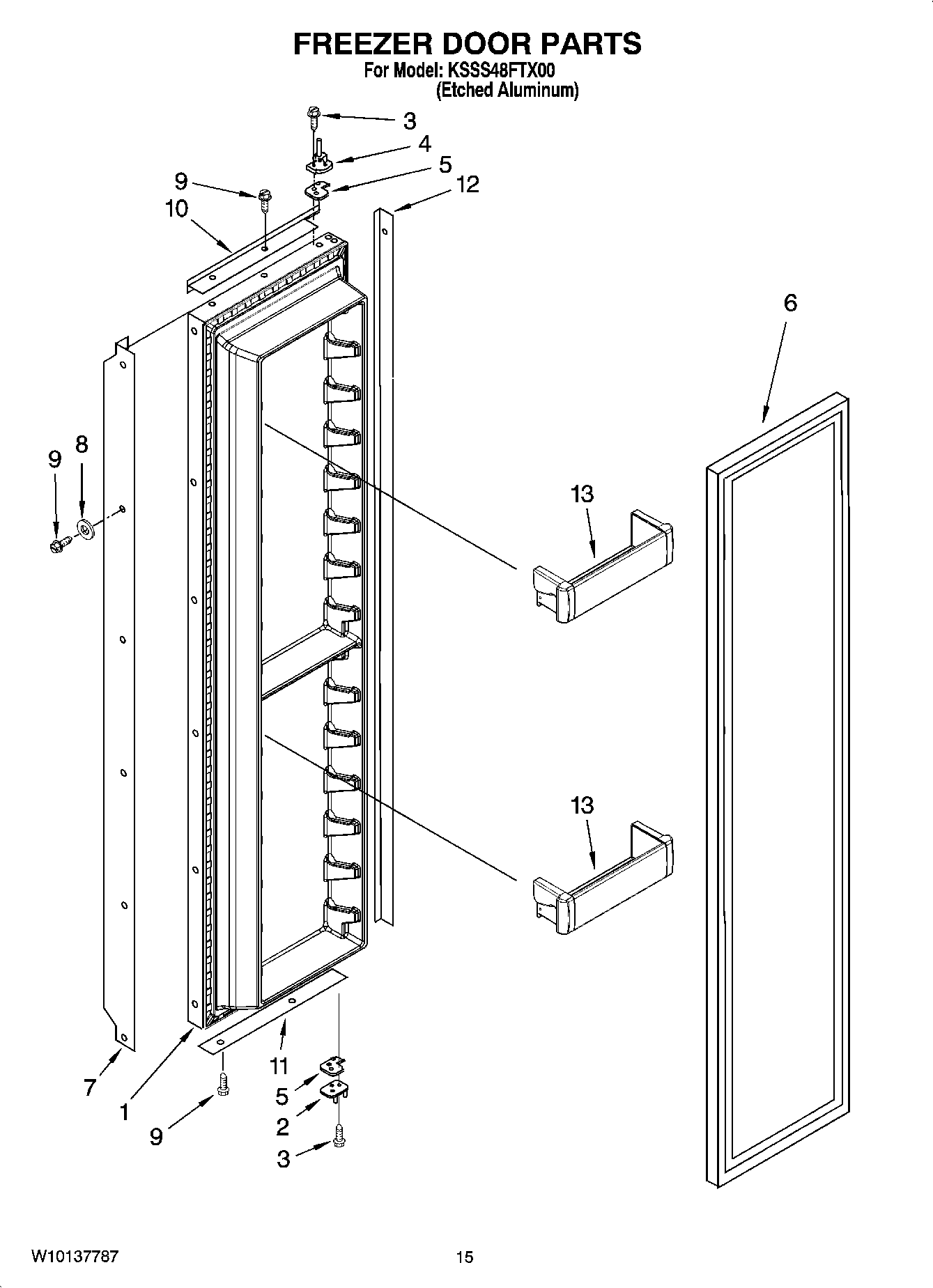

KSSS48FTX00 10 – FREEZER DOOR PARTS

Written by

Products

Position	Product
1	Freezer Door (Includes 11)
2	HINGE-DOOR
3	W11474472 Whirlpool Screw
4	W11724512 Whirlpool Door Hinge
5	W11673500 Whirlpool Door Hinge
6	WP2266901 Whirlpool Door Gasket
7	Handle, Door
8	Washer
9	WP8281250 Whirlpool Refrigerator Screw
10	Trim-Door, Top
11	Trim-Door, Bottom
12	Trim-Door, Side
13	W11590561 Whirlpool Refrigerator Cantilever Bin
