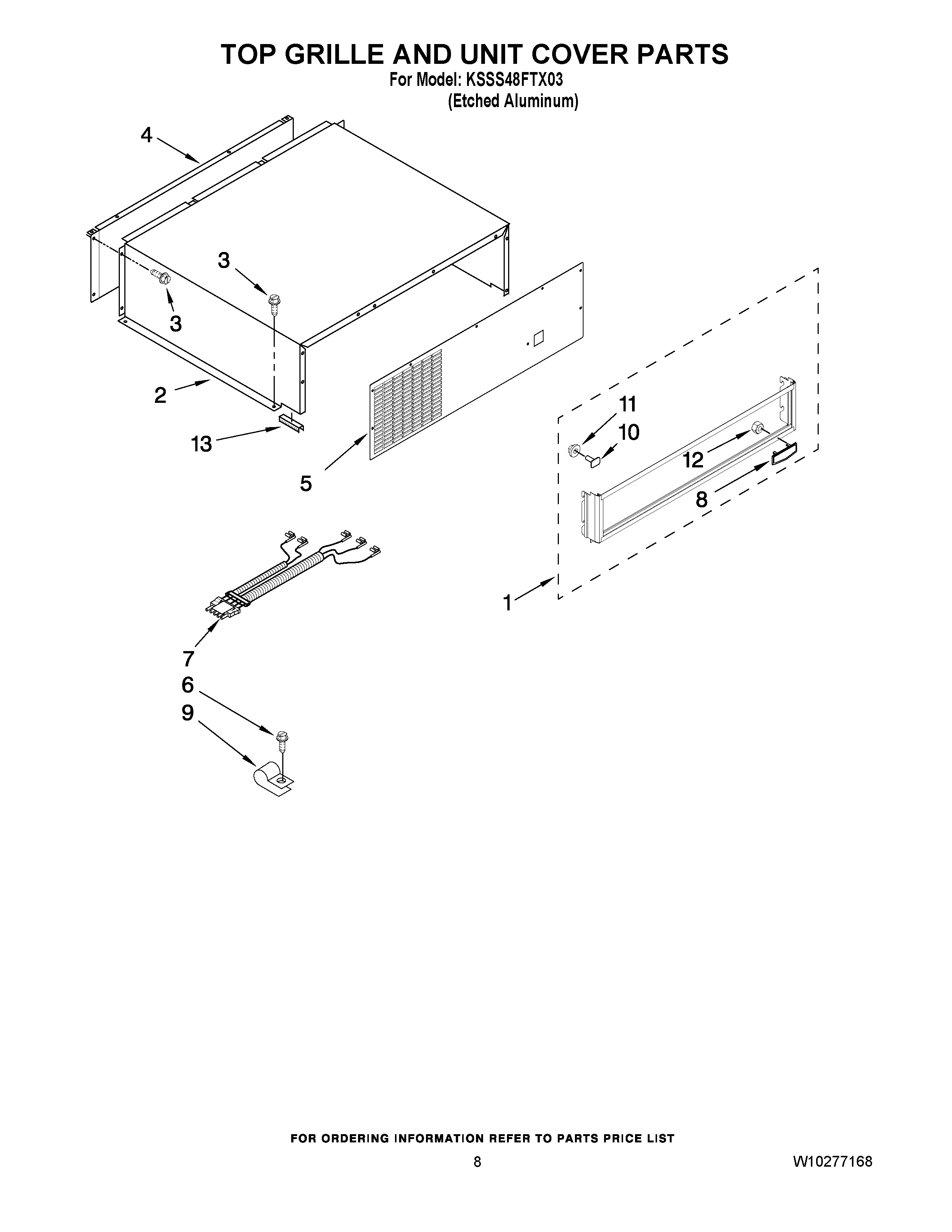

KSSS48FTX03 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48FTX03 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48FTX03 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top, Grille Assy
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover, Unit Front
6WP965173 Whirlpool Dishwasher Screw
7W10167456 Whirlpool Harness Switch
8NAMEPLATE
9489348 Whirlpool Refrigerator Tube Clamp
102003347 Whirlpool Screw
11WP488130 Whirlpool Air Conditioner Nut
12WP2004333 Whirlpool Refrigerator Nut
132215910 Whirlpool Refrigerator Grommet
