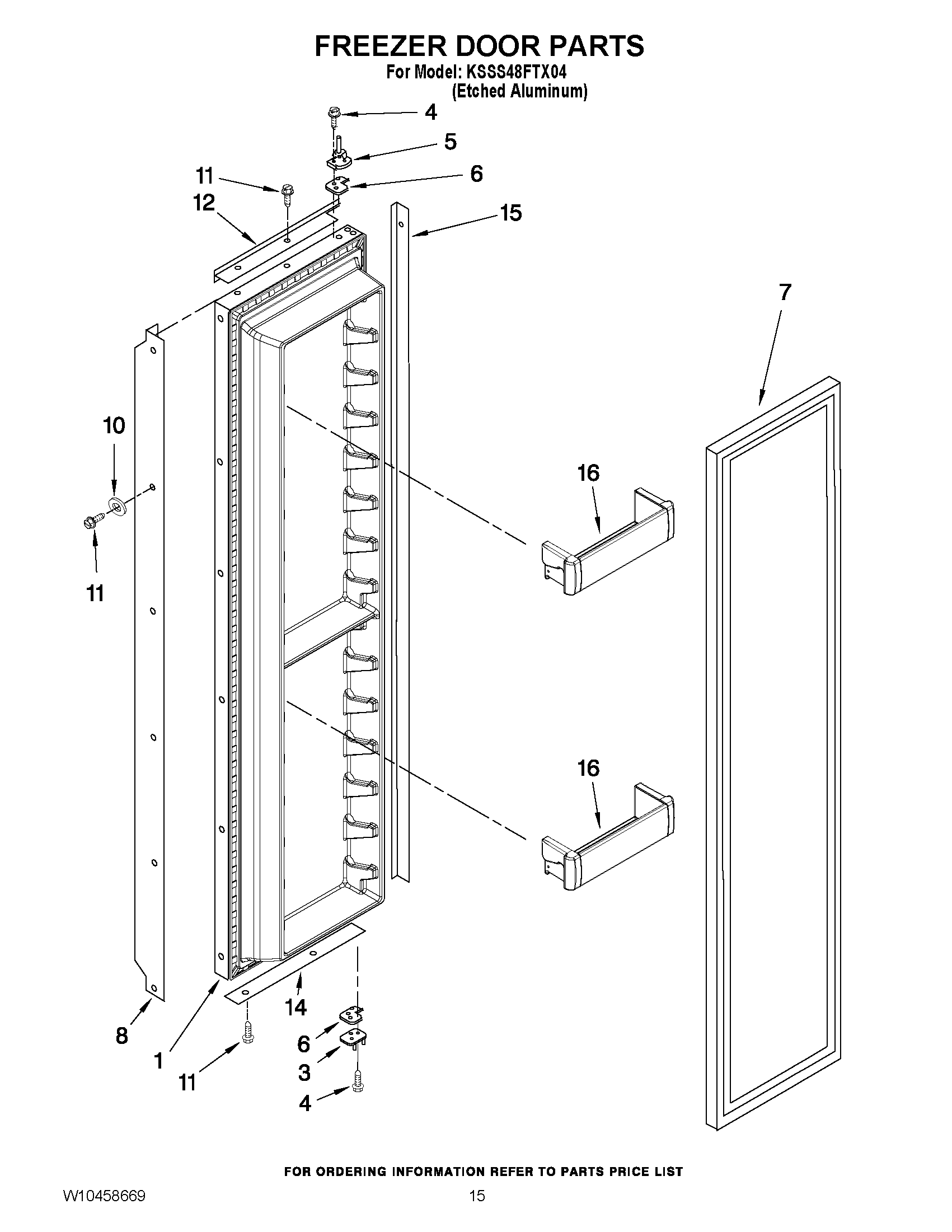

KSSS48FTX04 10 – FREEZER DOOR PARTS

KSSS48FTX04 10 – FREEZER DOOR PARTS

Written by

in

KSSS48FTX04 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.7)
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266901 Whirlpool Door Gasket
8Handle, Door
10Washer
11WP8281250 Whirlpool Refrigerator Screw
12Trim-Door, Top
14Trim-Door, Bottom
15Trim-Door, Side
16W11590561 Whirlpool Refrigerator Cantilever Bin
