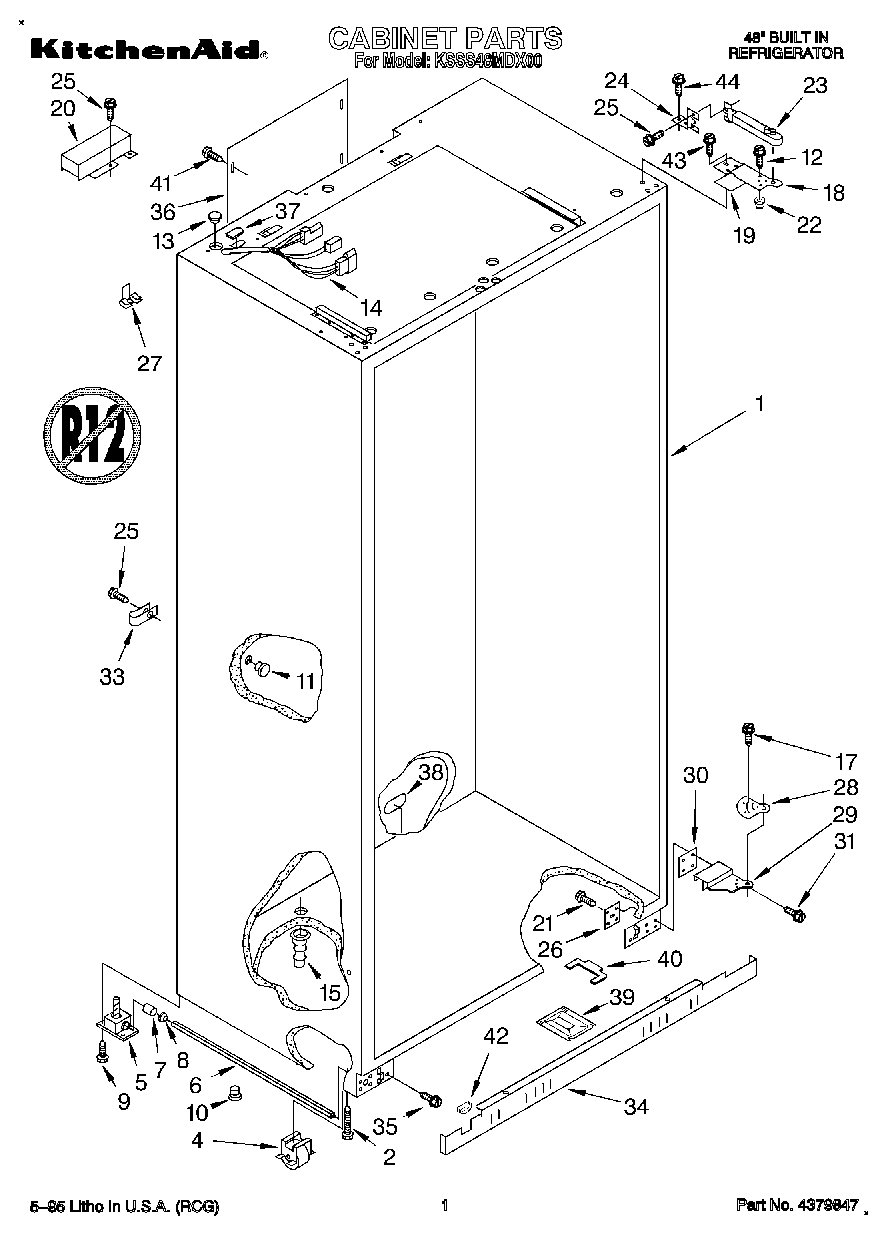

KSSS48MDX00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler, Front (2)
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	2005032 Whirlpool Refrigerator Leveler
6	Adjusting Rod (2)
7	Sleeve, Retainer (2)
8	Bushing, Rod (2)
10	Hole Plug, Leveler
11	Cap, Grommet
12	Stop Screw
13	Grommet, Wiring
14	Wiring Harness, Cabinet
15	Drain Fitting
17	Screw, Door Stop
18	Hinge (Top) (Left Side)
18	Hinge (Top) (Right Side)
19	Shim, Hinge Top
20	Guard, Wiring
21	WP488163 Whirlpool Refrigerator Screw
22	Bushing
23	Door Closer Assembly (2)
24	Bracket, Door Closer
25	W11624204 Whirlpool Screw
26	Tap Plate, Hinge Butt (2)
27	Fastener (3)
28	Gap, Cover Assembly (Bottom) (Right Side)
28	Gap, Cover Assembly (Bottom) (Left Side)
29	Hinge (Bottom) (Left Side)
29	Hinge (Bottom) (Right Side)
30	Shim, Hinge Bottom (4)
30	Shim, Hinge Bottom (1 Each)
31	Screw
33	Tube clamp
34	Grille Base, Front
35	Screw
36	Cover, Rear
37	Grommet, Wiring
38	Grommet, Flexible
39	Cup, Wiring
40	Seal
41	SCREW
42	Grommet
43	WP8204624 Whirlpool Bolt
44	Screw
