KSSS48MDX00 13 – LOWER UNIT AND TUBE

KSSS48MDX00 13 – LOWER UNIT AND TUBE

Written by

in

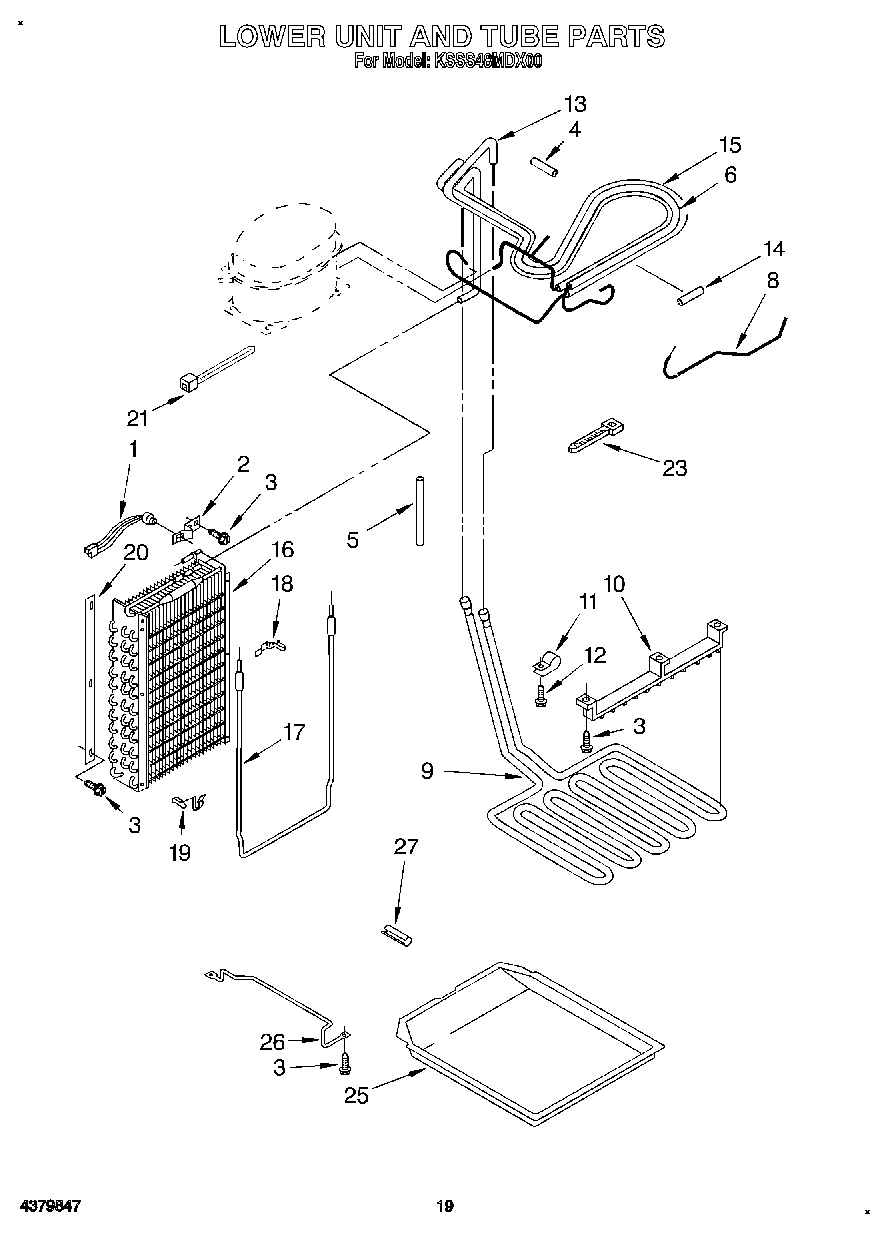

KSSS48MDX00 13 – LOWER UNIT AND TUBE

Products

PositionProduct
1WP4387499 Whirlpool Refrigerator Bimetallic Defrost
2Clamp, Bi-Metal
3W11624204 Whirlpool Screw
5WP2002171 Whirlpool Refrigerator Sleeve
6Condenser Inlet Tube
8Tube, Connect (Drier)
9Heater, Drain Pan
10Hanger, Heater
11Bracket, Heater
12WP488163 Whirlpool Refrigerator Screw
13Tube, Discharge
15Heat Exchanger
164388575 Whirlpool Evaporator
17WP2001608 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
19Clamp (4)
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
23Strap
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Left)
26Bracket, Drain Pan (Right)
27WP2158826 Whirlpool Refrigerator Dampener
