KSSS48MDX02 11 – FREEZER DOOR

KSSS48MDX02 11 – FREEZER DOOR

Written by

in

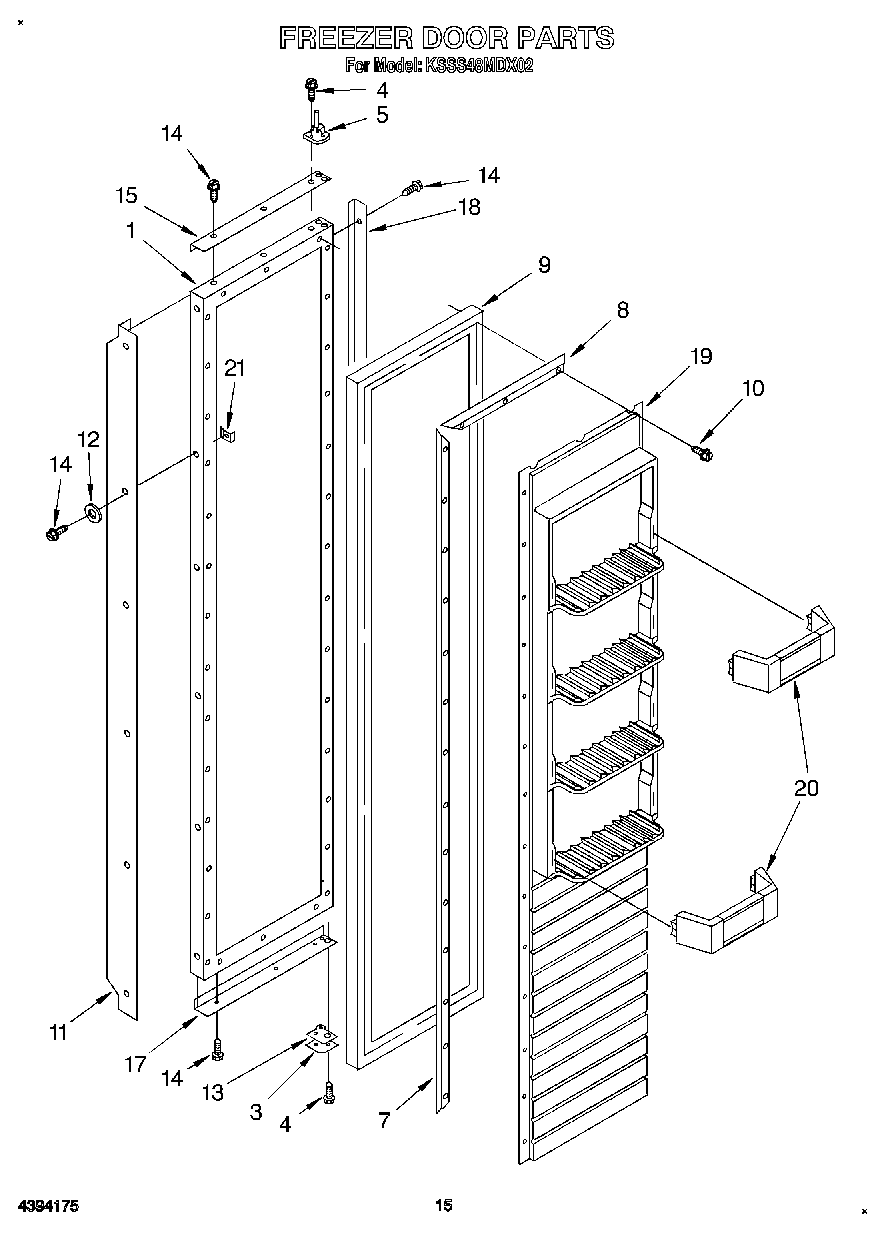

KSSS48MDX02 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
3Hinge, Bottom
4W11474472 Whirlpool Screw
5Hinge, Top
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188319A Whirlpool Refrigerator Door Gasket
10W11624204 Whirlpool Screw
11Handle, Door
12Washer
13Door, Spacer Bottom
14WP488729 Whirlpool Refrigerator Door Screw
15Trim (Top)
17Trim (Bottom)
18Trim (Side)
19Panel, Interior Door
20Shelf Bin (4)
21WP939101 Whirlpool Refrigerator Plate
