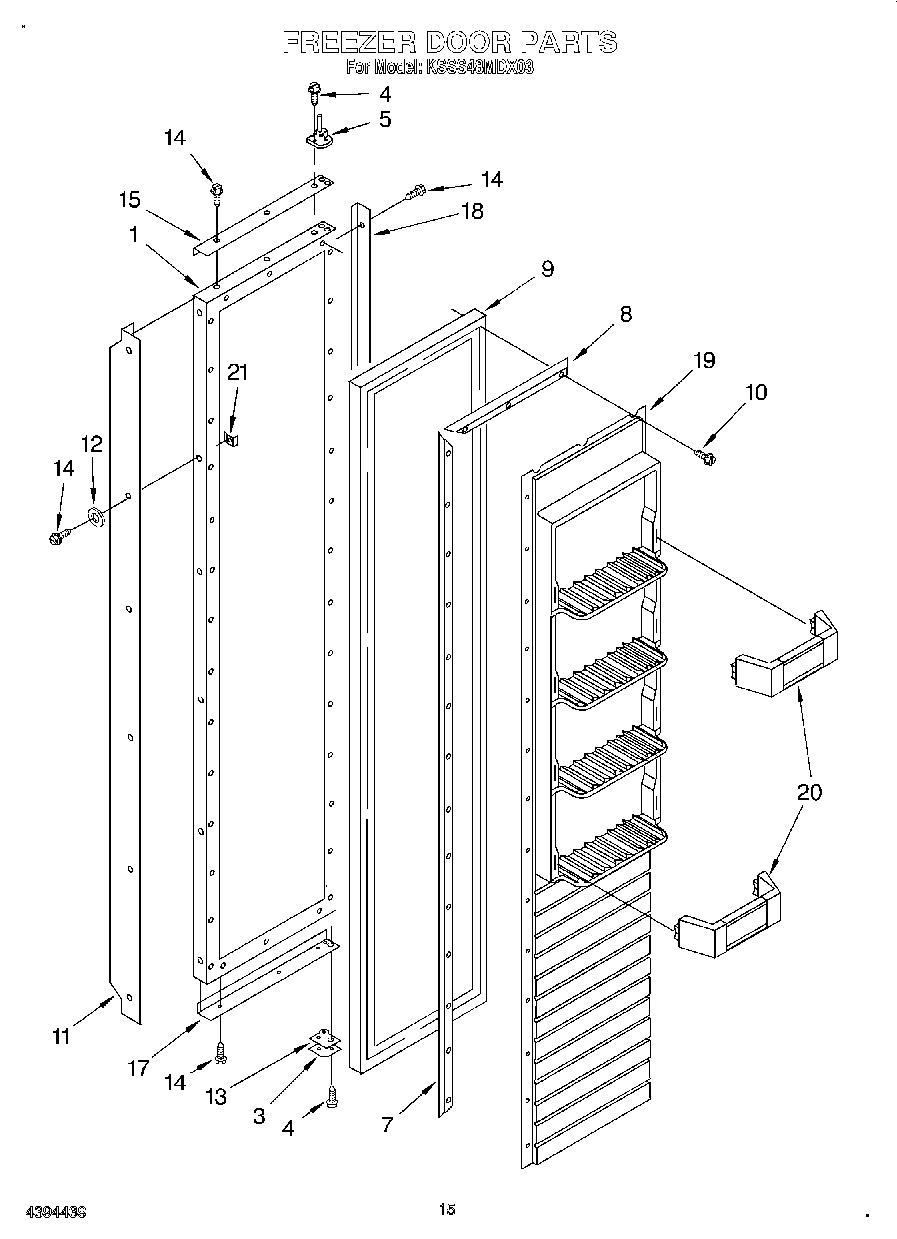

KSSS48MDX03 11 – FREEZER DOOR

KSSS48MDX03 11 – FREEZER DOOR

Written by

in

KSSS48MDX03 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
3Hinge Assembly, Bottom
4W11474472 Whirlpool Screw
5Hinge, Top
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188319A Whirlpool Refrigerator Door Gasket
10W11624204 Whirlpool Screw
11Handle, Door
12Washer
13Spacer-Hinge, Bottom
14WP488729 Whirlpool Refrigerator Door Screw
15Trim (Top)
17Trim (Bottom)
18Trim (Side)
19Panel, Interior Door
20Shelf Bin (4)
21WP939101 Whirlpool Refrigerator Plate
