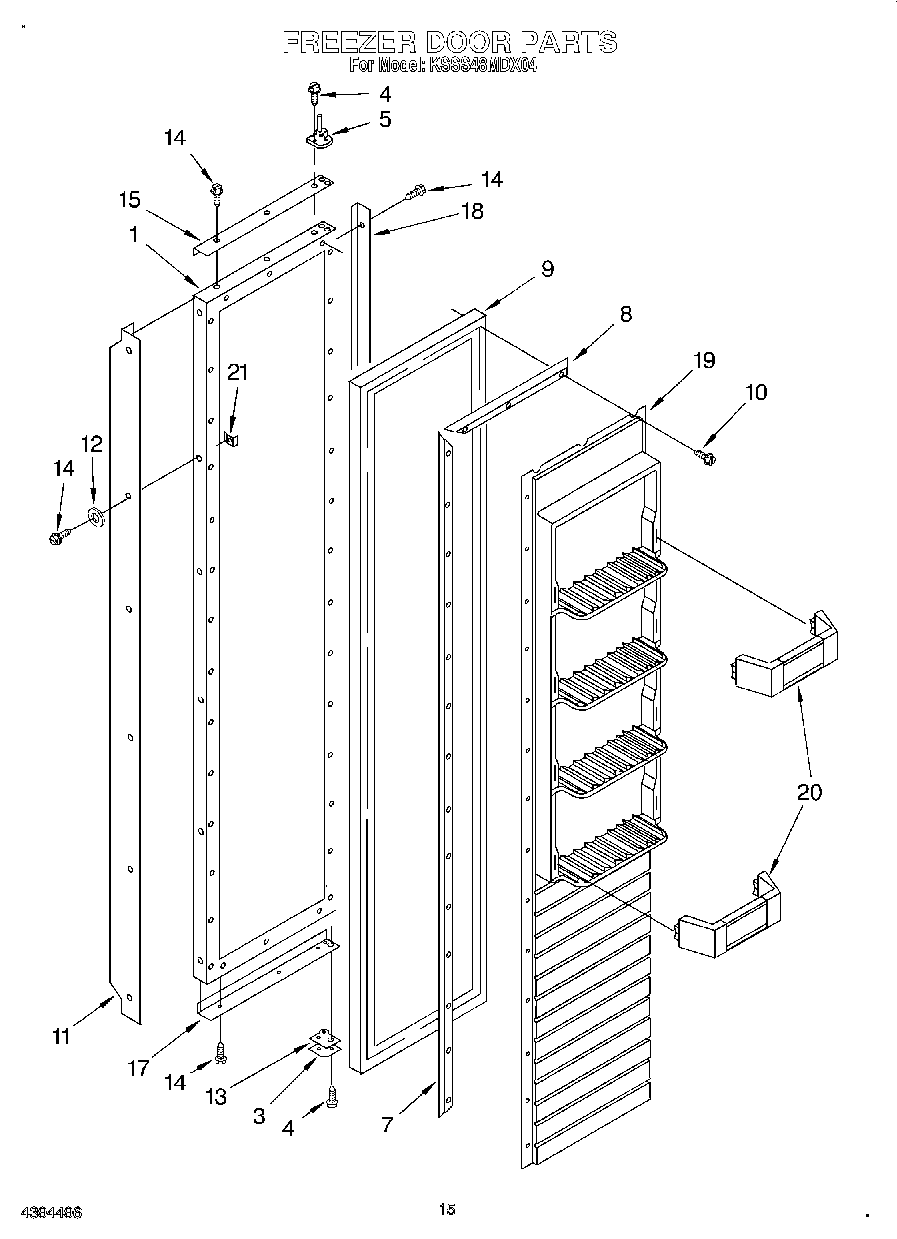

KSSS48MDX04 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
3	Hinge Assembly, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188319A Whirlpool Refrigerator Door Gasket
10	W11624204 Whirlpool Screw
11	Handle, Door
12	Washer
13	Spacer-Hinge, Bottom
14	WP488729 Whirlpool Refrigerator Door Screw
15	Trim (Top)
17	Trim (Bottom)
18	Trim (Side)
19	Panel, Interior Door
20	Shelf Bin (4)
21	WP939101 Whirlpool Refrigerator Plate
