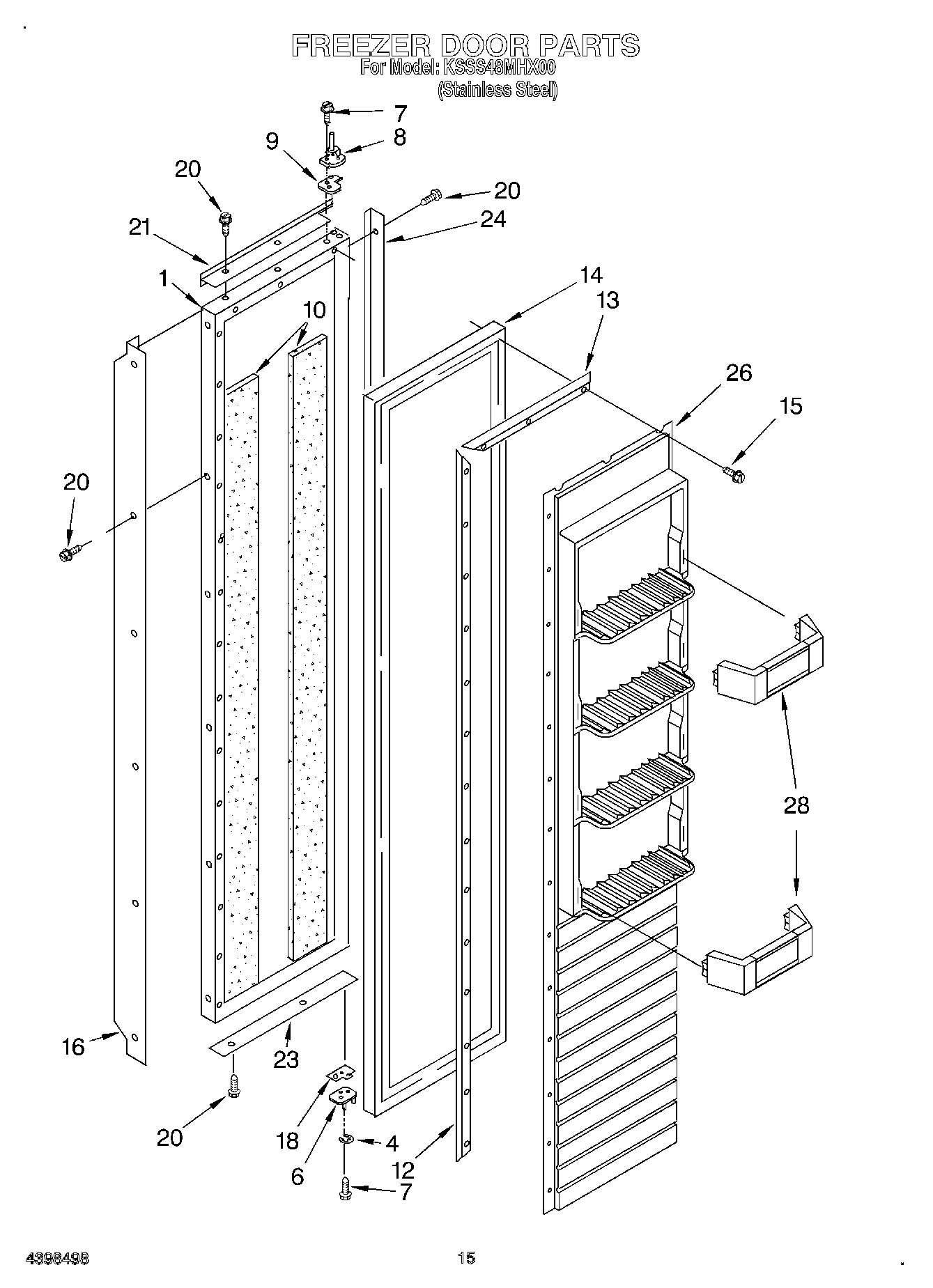

KSSS48MHX00 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
4Retaining Ring, Door-Closure
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
10Seal
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188319A Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door (Etched Aluminum)
18Door, Spacer
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
23Trim (Bottom)
24Trim (Side) (Etched Aluminum)
26Panel, Interior Door
28Shelf Bin (4)
