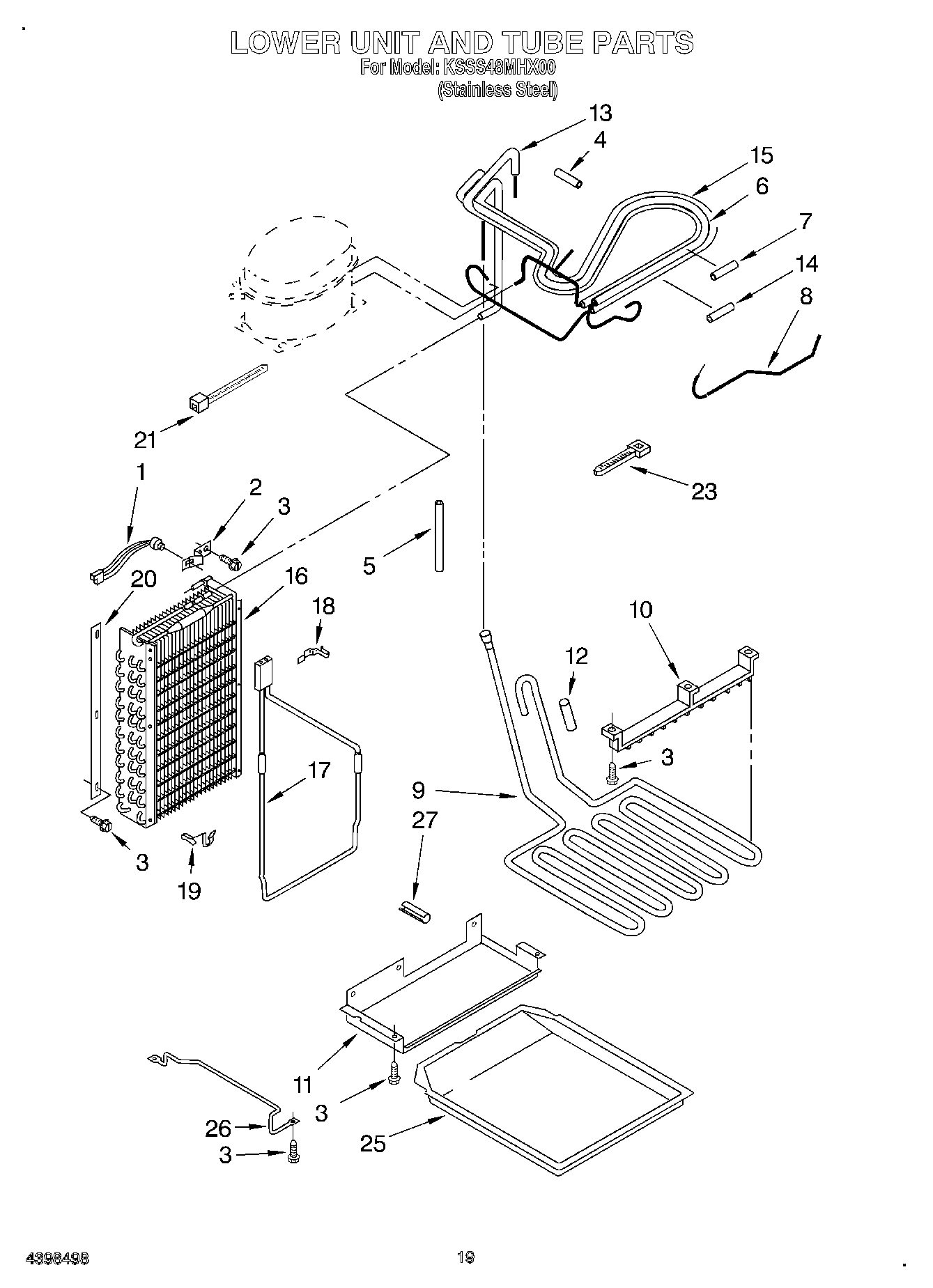

KSSS48MHX00 13 – LOWER UNIT AND TUBEadmin2025-04-26T12:11:50+00:00KSSS48MHX00 13 – LOWER UNIT AND TUBE ProductsPositionProduct1WP4387499 Whirlpool Refrigerator Bimetallic Defrost2Clamp, Bi-Metal3W11624204 Whirlpool Screw5WP2002171 Whirlpool Refrigerator Sleeve6Condenser Inlet Tube8Tube, Connect (Drier)9WP2004545 Whirlpool Refrigerator Heater Pan10Hanger, Heater11Shield, Drain Pan12Sleeve13Tube, Discharge15Heat Exchanger164388575 Whirlpool Evaporator17WP2006751 Whirlpool Refrigerator Heater181113048 Whirlpool Refrigerator Clamp19Clamp (4)20Gasket, Evaporator21WPW10339879 Whirlpool Wire Tie23Strap25WP2001264 Whirlpool Refrigerator Drip Pan26Bracket, Drain Pan (Left)26Bracket, Drain Pan (Right)27WP2158826 Whirlpool Refrigerator Dampener
