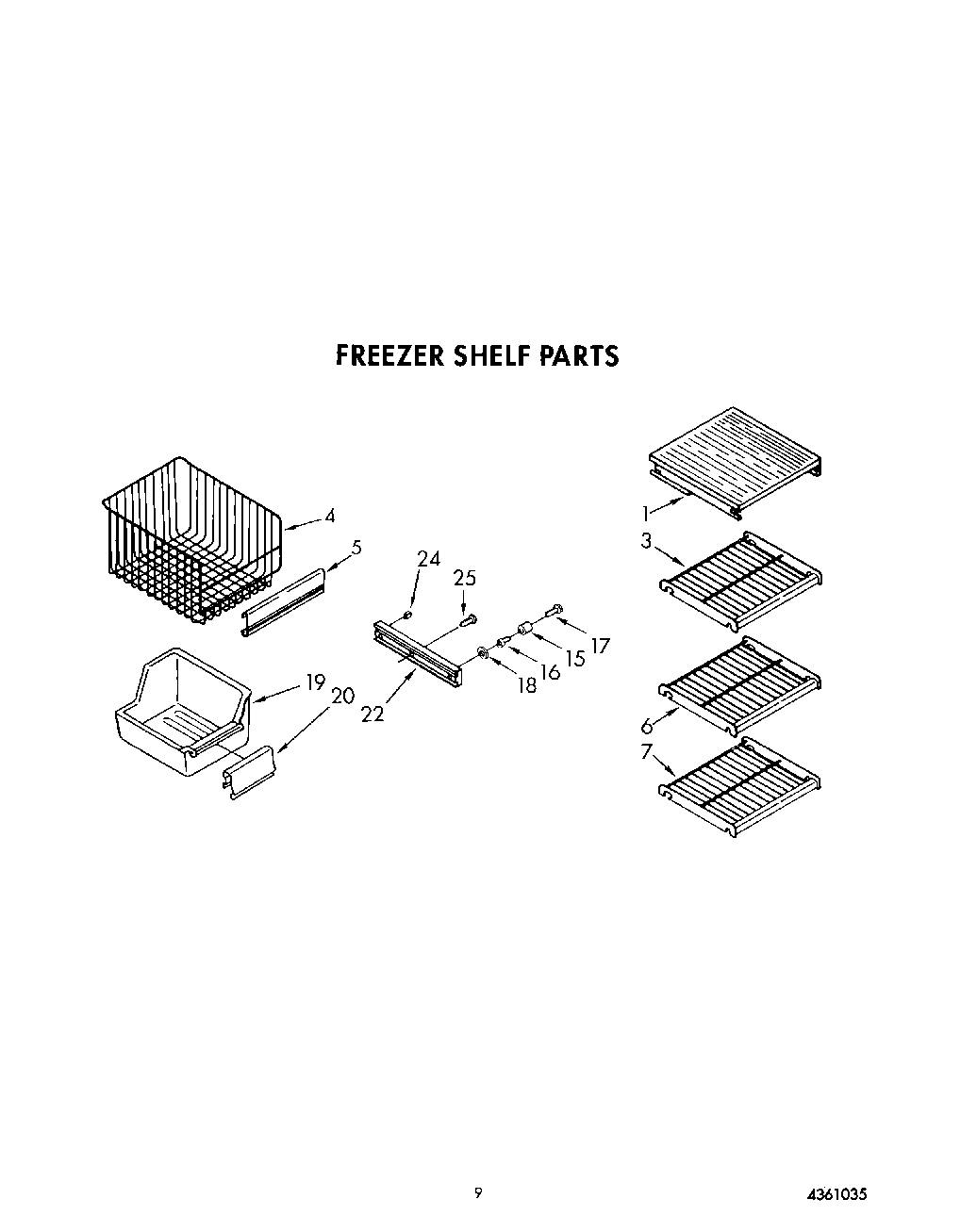

KSSS48MWX00 08 – FREEZER SHELF

Written by

Products

Position	Product
1	Solid Shelf
3	Shelf, Fixed (Large)
4	Basket
5	Trim, Basket
6	Shelf
7	Shelf, Fixed (2)
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	PAN-ICE
20	Pan, Trim Ice
22	Basket Slide (Left Side)
22	Basket Slide (Right Side)
24	Roller Stop
25	W11624204 Whirlpool Screw
