KSSS48MWX00 11 – FREEZER DOOR

KSSS48MWX00 11 – FREEZER DOOR

Written by

in

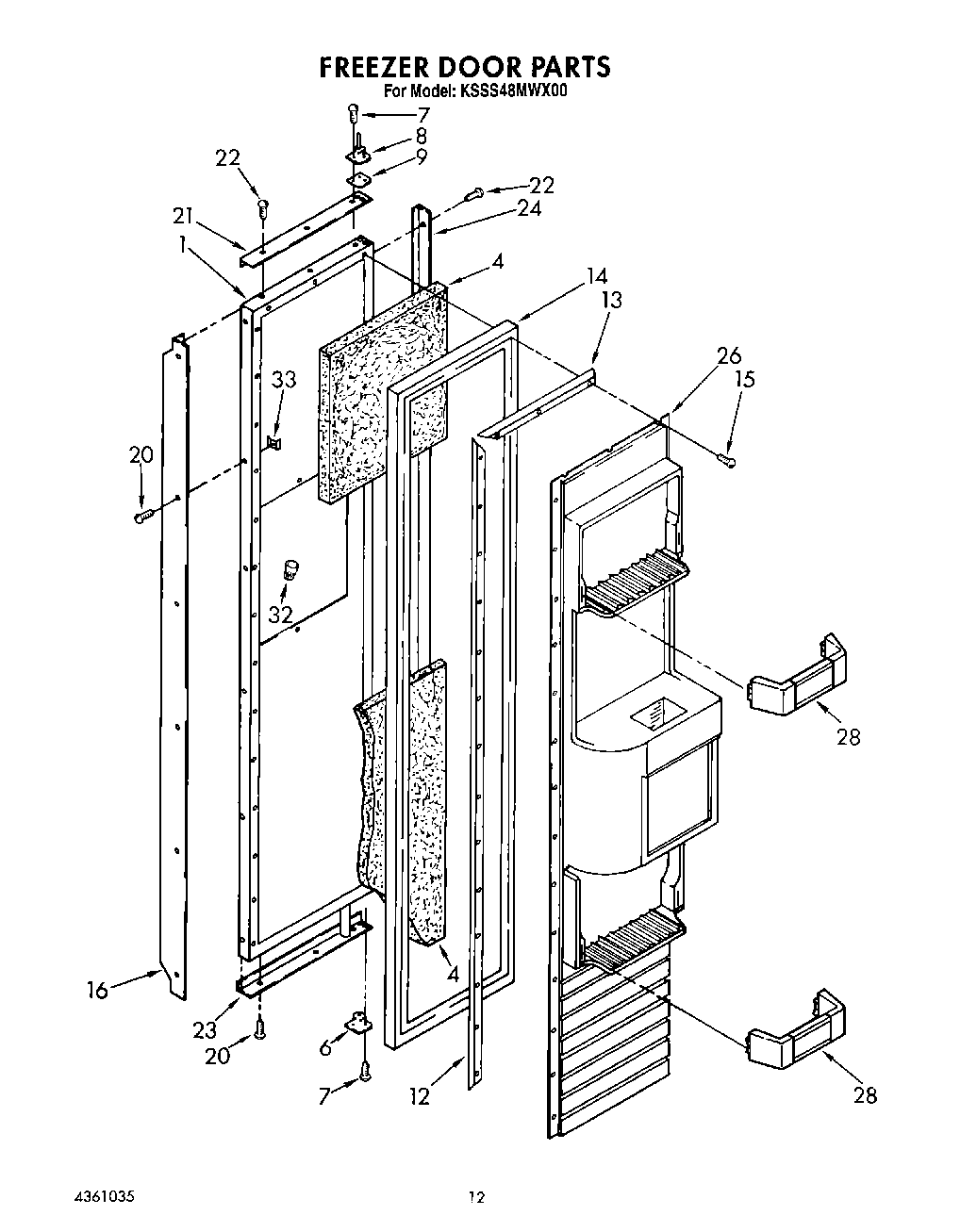

KSSS48MWX00 11 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Also Order Item 4)
4WPL 876029
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15WP489069 Whirlpool Compactor Screw
16Handle, Door
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
22Screw, 6-32 x 1/2
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28Door Shelf, Assembly
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
