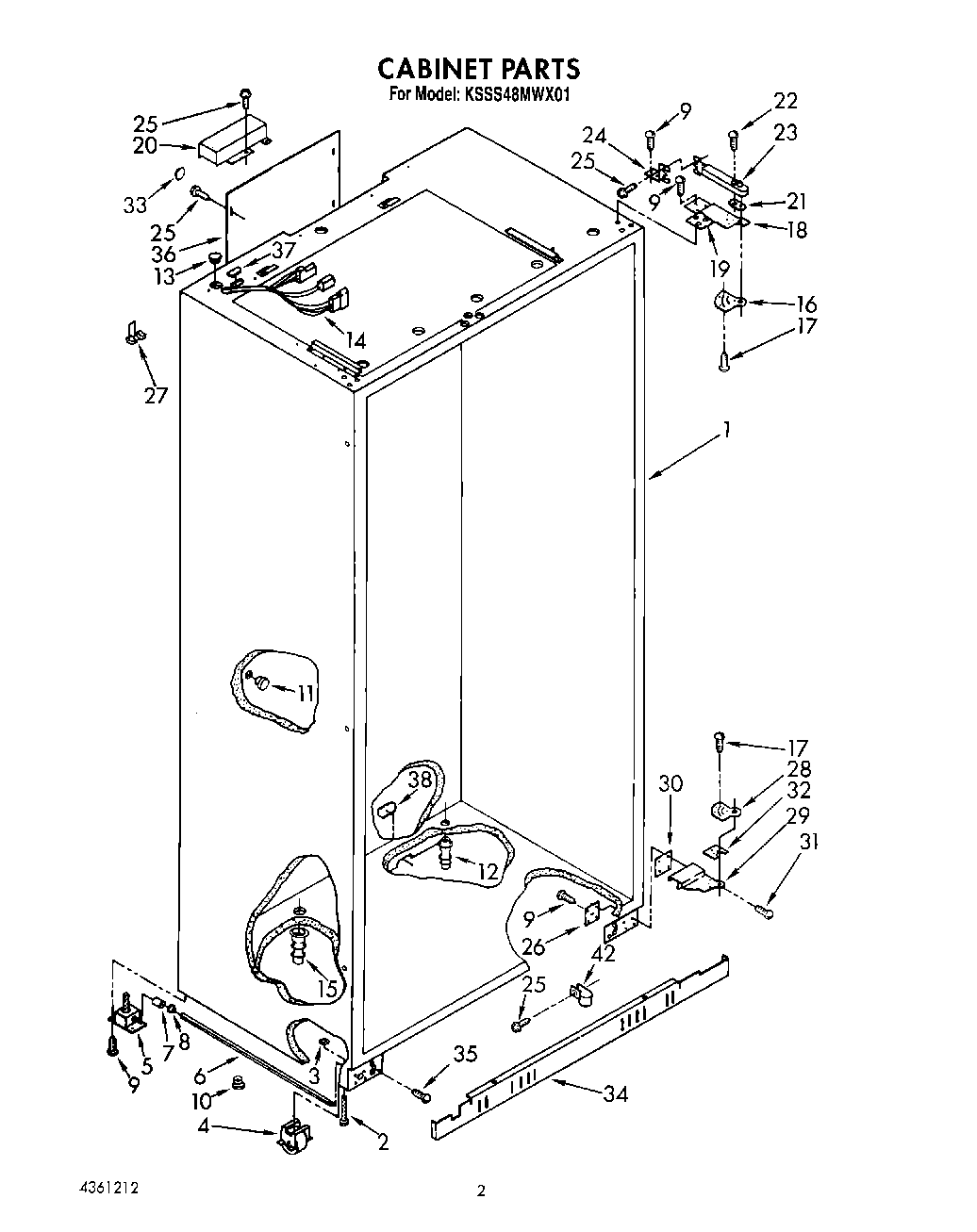

KSSS48MWX01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler, Front (2)
3	Retainer (2)
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	2005032 Whirlpool Refrigerator Leveler
6	Adjusting Rod (2)
7	Sleeve, Retainer (2)
8	Bushing, Rod (2)
9	Screw
10	Hole Plug, Leveler
11	Cap, Grommet
12	Grommet, Water Tube
13	Grommet, Wiring
14	Wiring Harness, Cabinet
15	Drain Fitting
17	Shoulder, Screw
18	Hinge (Top) (Right Side)
18	Hinge (Top) (Left Side)
19	Shim, Hinge Top (4)
20	Guard, Wiring
21	Door Closer, Fixed Cam
22	WP486579 Whirlpool Air Conditioner Screw
23	Door Closer Assembly (2)
24	Bracket, Door Closer (Right Side)
24	Bracket, Door Closer (Left Side)
25	W11624204 Whirlpool Screw
26	Tap Plate, Hinge Butt (2)
27	Fastener (3)
28	Gap, Cover Assembly (Bottom) (Left Side)
28	Gap, Cover Assembly (Bottom) (Right Side)
29	Hinge (Bottom) (Right Side)
29	Hinge (Bottom) (Left Side)
30	Shim, Hinge Bottom (1 Each)
30	Shim, Hinge Bottom (4)
31	Screw
32	Spacer, Lower Door Hinge
33	Seal, Hole
34	Grille Base, Front
35	Screw
36	Cover, Rear
37	Grommet, Wiring
38	Grommet, Flexible
42	Clamp, Tube (2) ()
