KSSS48MWX01 04 – FREEZER LINER

KSSS48MWX01 04 – FREEZER LINER

Written by

in

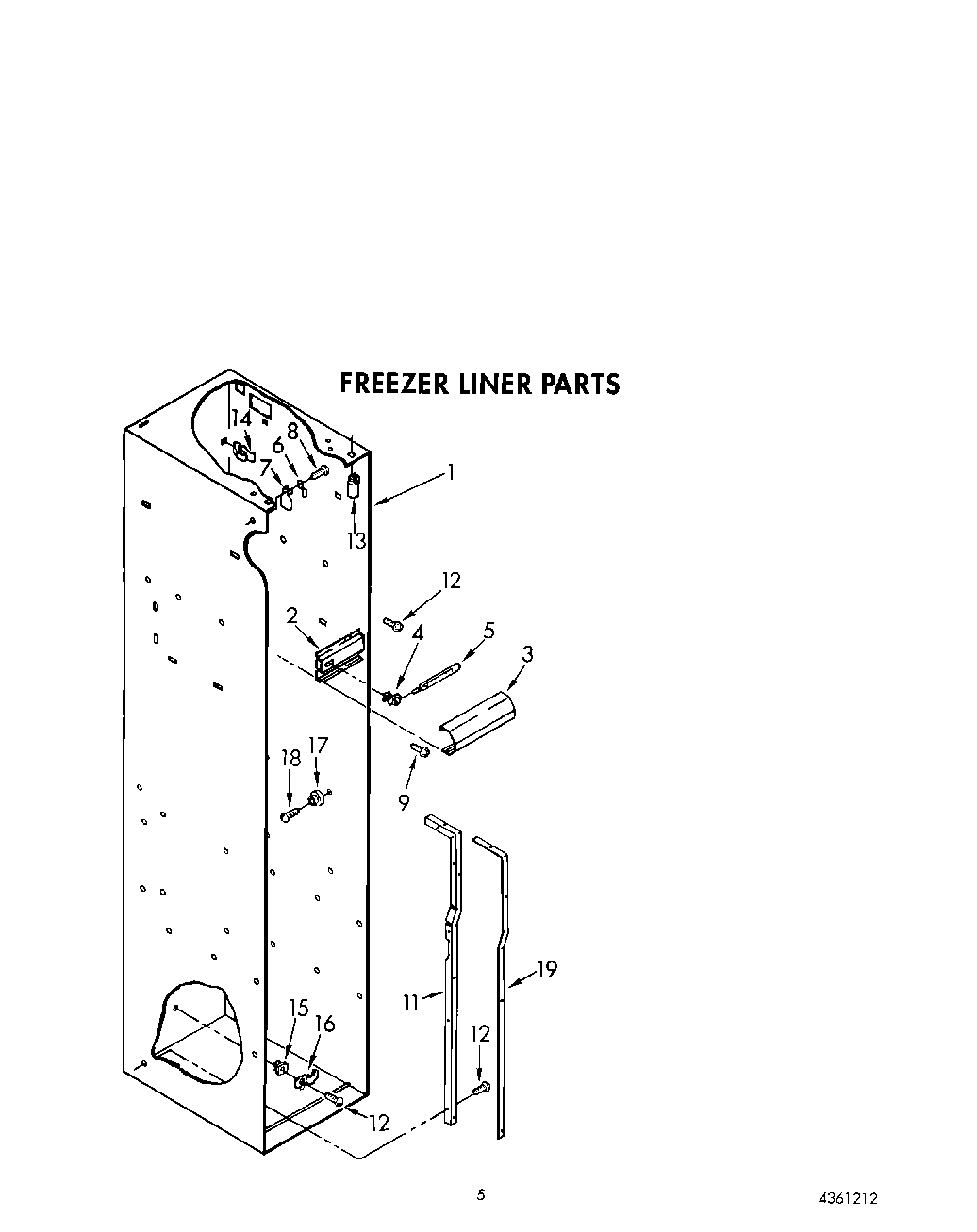

KSSS48MWX01 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Bracket, Light
3Lens
4Socket, Light
5WP548049 Whirlpool Refrigerator Light Bulb
6Support Clip
7Grommet, Screw (2)
8SCREW
9WP489128 Whirlpool Refrigerator Screw
11Rail, Evaporator Cover (Left Side)
11Rail, Evaporator Cover (Right Side)
12W11624204 Whirlpool Screw
13Spacer, Control Panel (3)
142215823 Whirlpool Refrigerator Clip
15Grommet
161112260 Whirlpool EV Support
17Stud
18Screw
19Gasket, Evaporator Cover (2)
