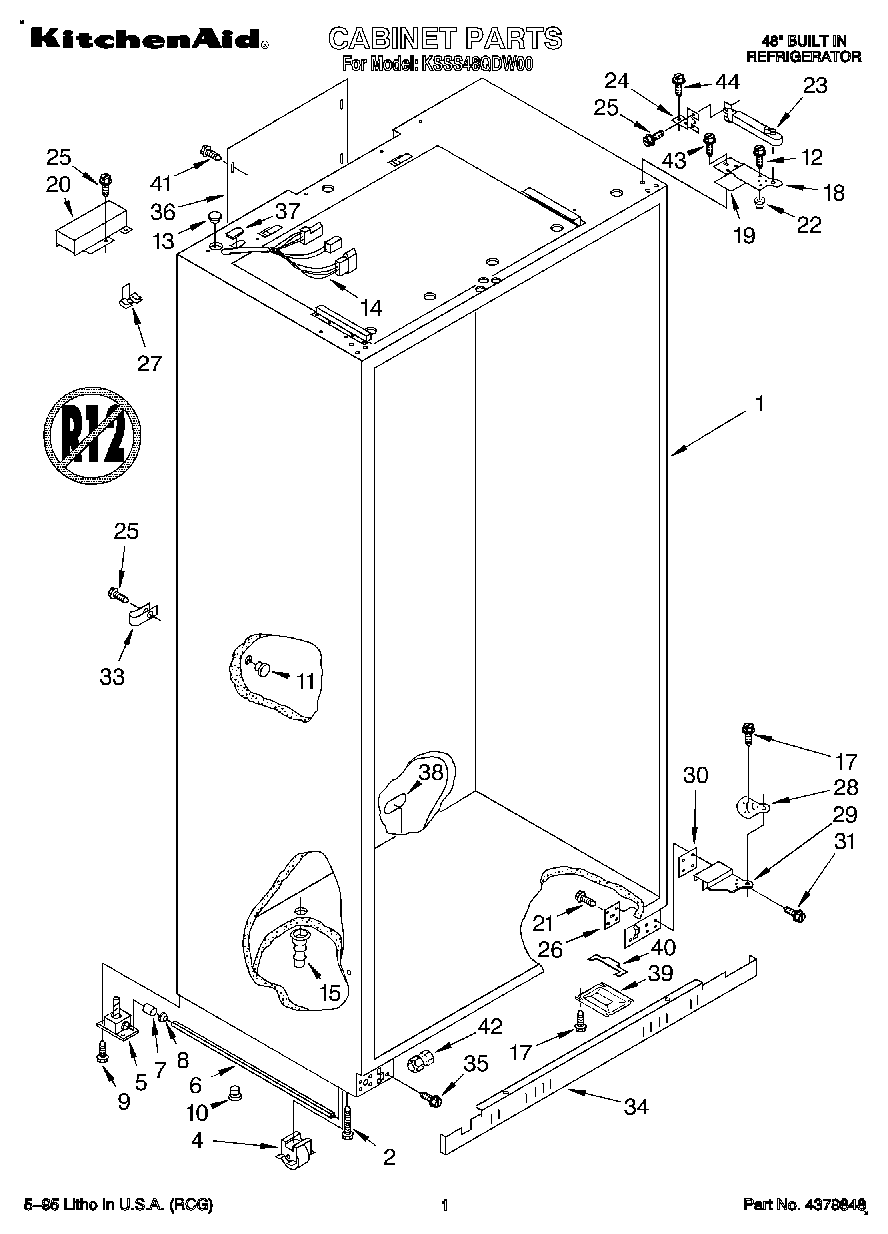

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Leveler, Front (2) |
| 4 | WPW10138054 Whirlpool Refrigerator Cabinet Roller |
| 5 | 2005032 Whirlpool Refrigerator Leveler |
| 6 | Adjusting Rod (2) |
| 7 | Sleeve, Retainer (2) |
| 8 | Bushing, Rod (2) |
| 10 | Hole Plug, Leveler |
| 11 | Cap, Grommet |
| 12 | Stop Screw |
| 13 | Grommet, Wiring |
| 14 | Wiring Harness, Cabinet |
| 15 | Drain Fitting |
| 17 | Screw, Door Stop |
| 18 | Hinge (Top) (Right Side) |
| 18 | Hinge (Top) (Left Side) |
| 19 | Shim, Hinge Top |
| 20 | Guard, Wiring |
| 21 | WP488163 Whirlpool Refrigerator Screw |
| 22 | Bushing |
| 23 | Door Closer Assembly (2) |
| 24 | Bracket, Door Closer |
| 25 | W11624204 Whirlpool Screw |
| 26 | Tap Plate, Hinge Butt (2) |
| 27 | Fastener (3) |
| 28 | Gap, Cover Assembly (Bottom) (Left Side) |
| 28 | Gap, Cover Assembly (Bottom) (Right Side) |
| 29 | Hinge (Bottom) (Left Side) |
| 29 | Hinge (Bottom) (Right Side) |
| 30 | Shim, Hinge Bottom (4) |
| 30 | Shim, Hinge Bottom (1 Each) |
| 31 | Screw |
| 33 | Tube clamp |
| 34 | Grille Base, Front |
| 35 | Screw |
| 36 | Cover, Rear |
| 37 | Grommet, Wiring |
| 38 | Grommet, Flexible |
| 39 | Cup, Wiring |
| 40 | Seal |
| 41 | SCREW |
| 42 | WP4211117 Whirlpool Refrigerator Connector |
| 43 | WP8204624 Whirlpool Bolt |
| 44 | Screw |
