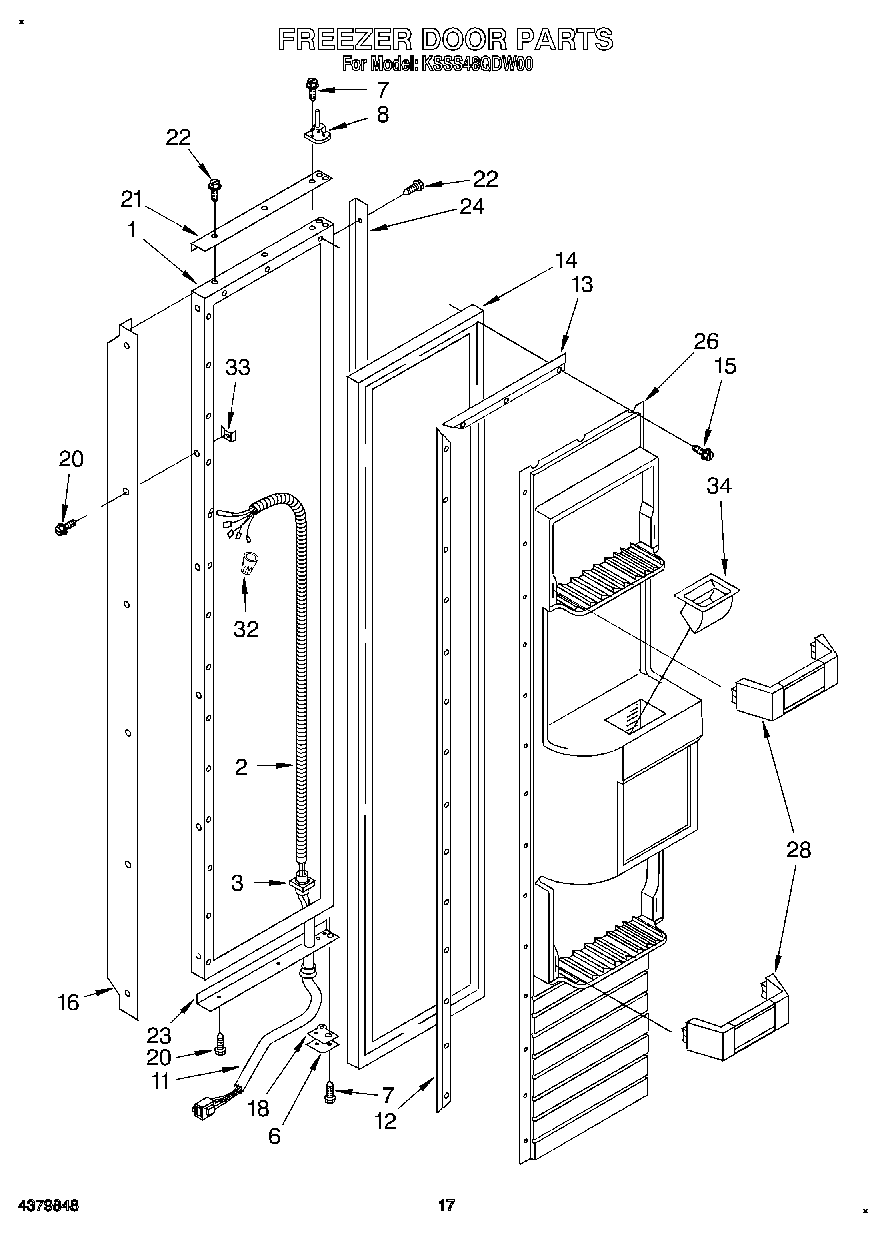

KSSS48QDW00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188319A Whirlpool Refrigerator Door Gasket
15	WP489069 Whirlpool Compactor Screw
16	Handle, Door
18	Door, Spacer Bottom
20	Screw (White)
21	Trim (Top)
22	Screw
23	Trim (Bottom)
24	Trim (Side)
26	Panel, Interior Door
28	Shelf Bin (4)
32	Conector, Wire
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
