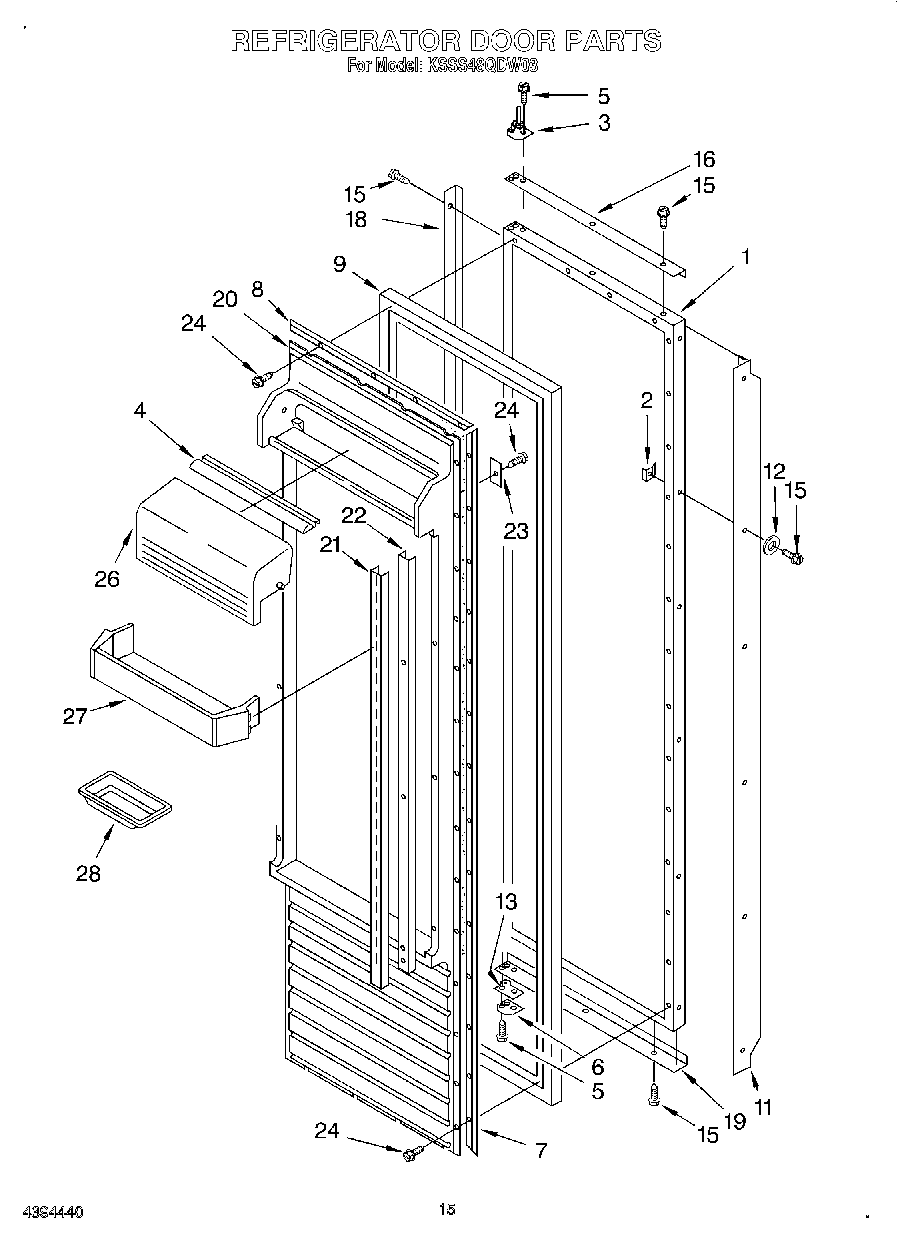

KSSS48QDW03 11 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation)
2WP939101 Whirlpool Refrigerator Plate
3Hinge Assembly, Top
4Gasket Utility Door
5W11474472 Whirlpool Screw
6Hinge Assembly, Bottom
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188321A Whirlpool Refrigerator Door Gasket
11Handle, Door (White)
12Washer
13Spacer-Hinge, Bottom
15Screw (White)
16Trim (Top)
18Trim (Side) (White)
19Trim (Bottom)
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
26Door, Utility Bin
27Door Shelf (4)
28Butter, Tray
