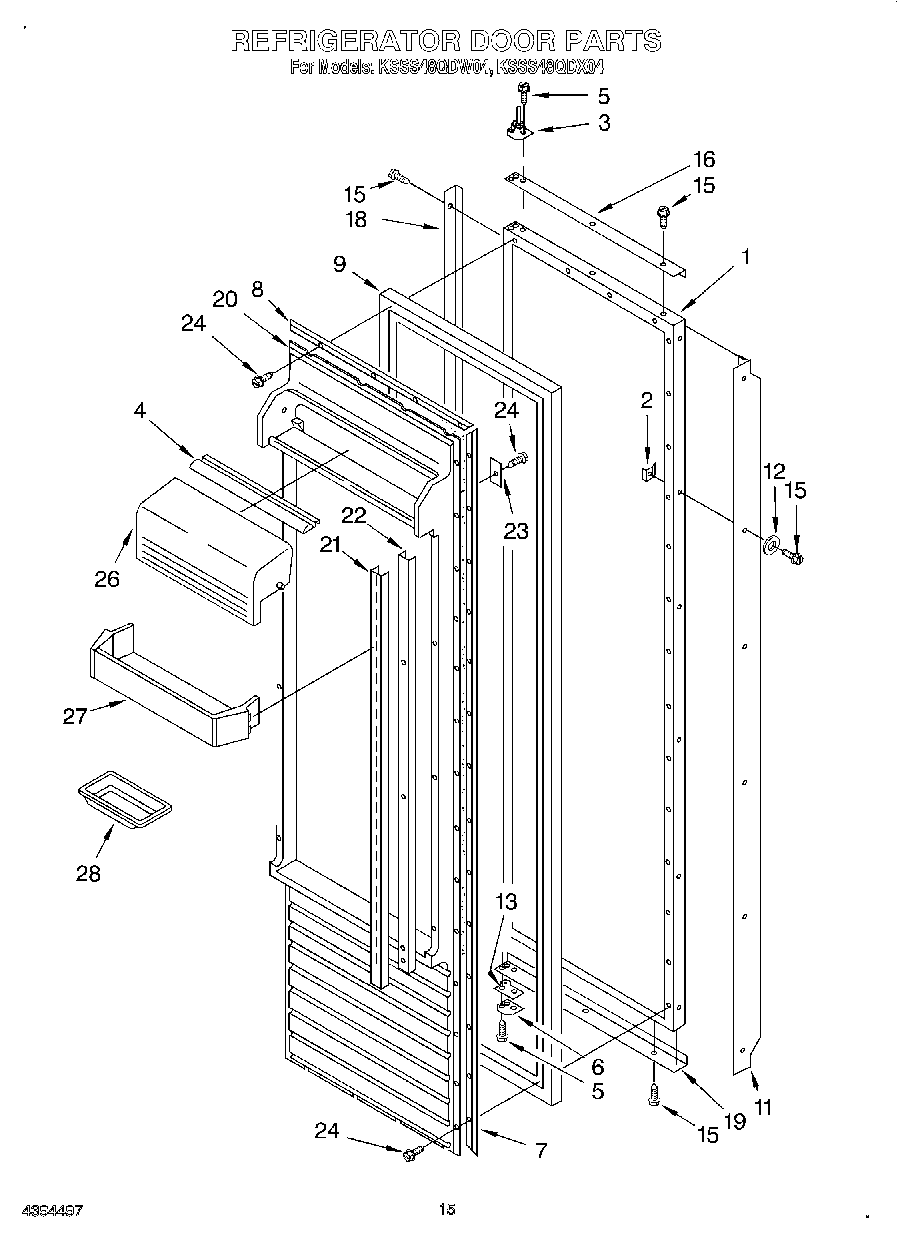

KSSS48QDW04 11 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
2	WP939101 Whirlpool Refrigerator Plate
3	Hinge Assembly, Top
4	Gasket Utility Door
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188321A Whirlpool Refrigerator Door Gasket
11	Handle, Door
11	Handle, Door (White)
12	Washer
13	Spacer-Hinge, Bottom
15	Screw (White)
15	WP488729 Whirlpool Refrigerator Door Screw
16	Trim (Top)
16	Trim (Top)
18	Trim (Side)
18	Trim (Side) (White)
19	Trim (Bottom)
19	Trim (Bottom)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
26	Door, Utility Bin
27	Door Shelf (4)
28	Butter, Tray
