KSSS48QDW04 12 – FREEZER DOOR

KSSS48QDW04 12 – FREEZER DOOR

Written by

in

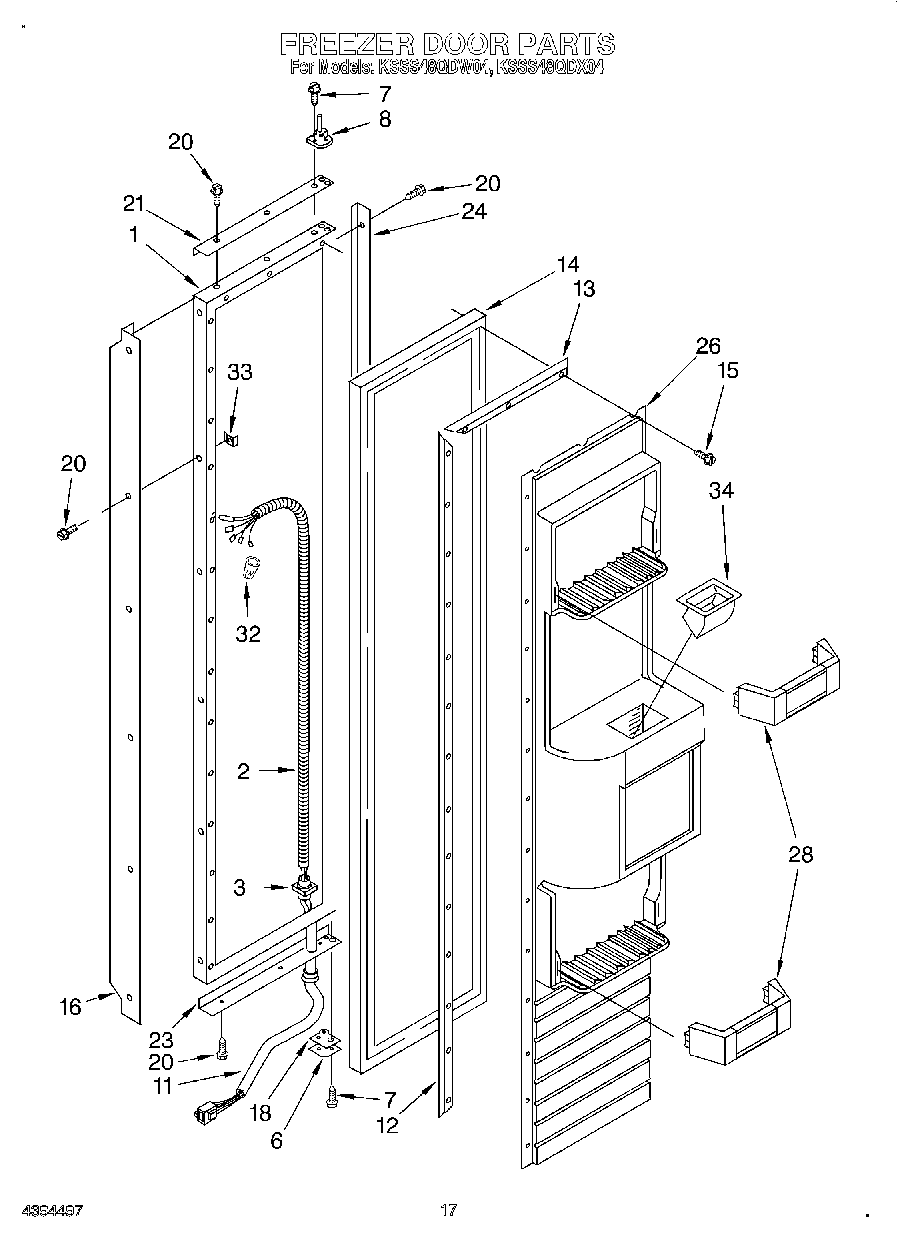

KSSS48QDW04 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge Assembly, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188319A Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door
16Handle, Door (White)
18Spacer-Hinge, Bottom
20Screw (White)
20WP488729 Whirlpool Refrigerator Door Screw
21Trim (Top)
21Trim (Top)
23Trim (Bottom)
23Trim (Bottom)
24Trim (Side) (White)
24Trim (Side)
26Panel, Interior Door
28Shelf Bin (4)
32Conector, Wire
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
