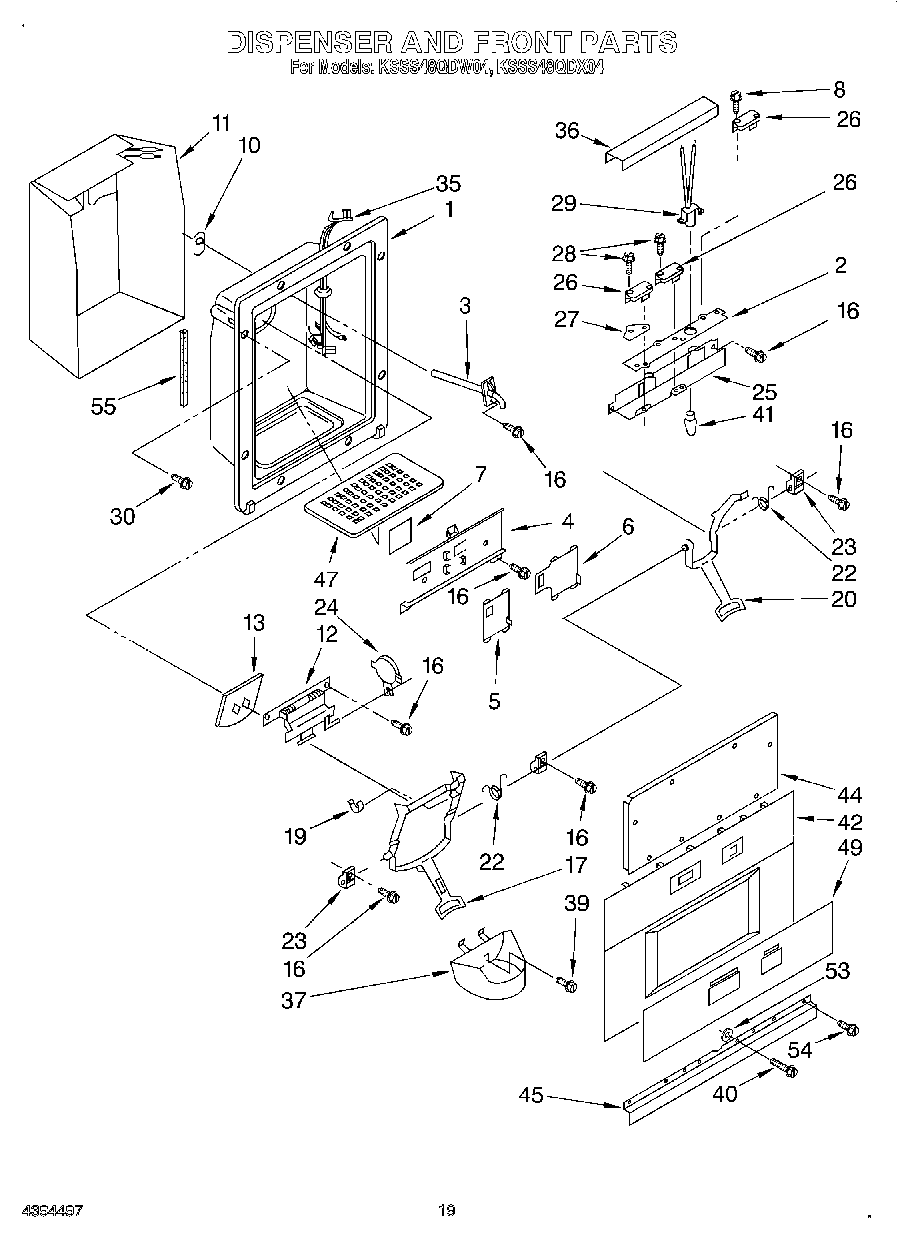

KSSS48QDW04 13 – DISPENSER AND FRONT

Products

Position	Product
1	Housing, Dispenser
1	Housing, Dispenser
2	Insulator, Control Bracket
3	WP4388152 Whirlpool Refrigerator Fitting
4	Frame, Slides
4	Frame, Slides
5	Slide, Cube/Crush Switch
5	Slide, Cube/Crush Switch
6	Slide, Light Switch
6	Slide, Light Switch
7	Heat Shield, Frame
8	Screw, 4-40 x 1
10	Grommet
11	Heater, Dispenser
12	Door Mechanism Assembly (Includes Item 9)
13	Door, Ice
16	WP3400906 Whirlpool Refrigerator Screw
17	Lever Assembly, Ice Dispenser
17	Lever Assembly, Ice Dispenser
19	Clip, Bearing (2)
20	WPL 2159197
20	Lever Assembly, Water Disp
22	Spring, Lever (2)
23	Bearing, Lever (3)
24	WP1120581 Whirlpool Refrigerator Mechanism
25	Bracket, Control
26	WP2162361 Whirlpool Switch
27	Spacer, Switch (2)
28	Screw,
29	Lamp Holder
30	WP489128 Whirlpool Refrigerator Screw
35	Wiring Harness, Door
36	Shield, Wiring
37	Guide, Ice
37	Guide, Ice
39	Screw
39	Screw
40	WP488729 Whirlpool Refrigerator Door Screw
41	WP22002263 Whirlpool Dryer 10W Light Bulb
42	Front Cover, Housing (Includes No.49)
42	Front Cover, Housing (Includes No.49) (Black)
44	Cover, Dispenser Opening
45	Trim, Front (2) (Stainless Steel)
45	Trim, Front (2)
47	Grille, Overflow (White)
47	Grille, Overflow
49	Overlay, Cover
49	Overlay, Cover (Black)
53	W10903204 Whirlpool Refrigerator Washer
54	W10759522 Whirlpool Screw
55	Seal
