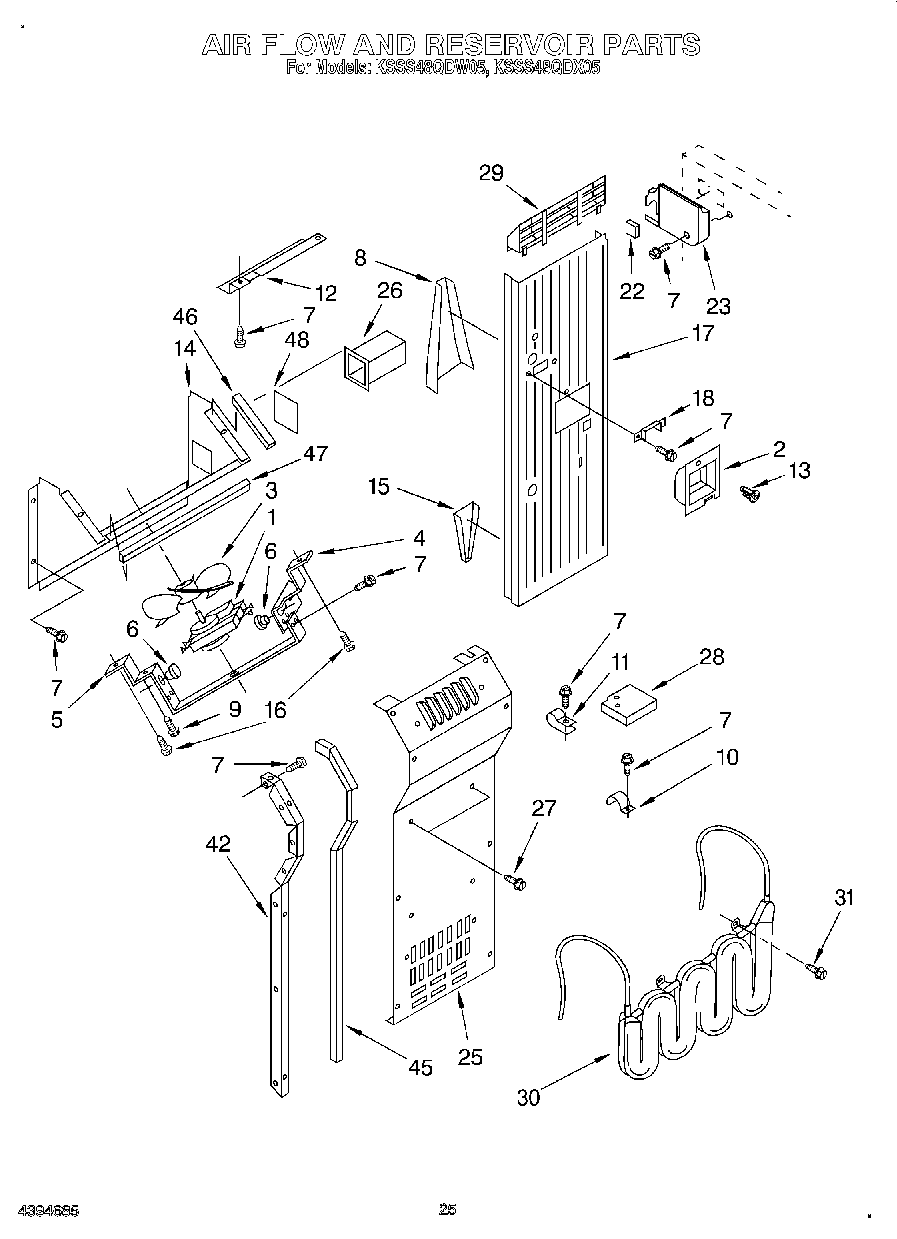

KSSS48QDW05 16 – AIR FLOW AND RESERVOIRadmin2025-04-26T12:12:18+00:00KSSS48QDW05 16 – AIR FLOW AND RESERVOIR
Products
| Position | Product |
|---|
| 1 | MOTOR-EVAP |
| 2 | Cup, Clearance |
| 3 | WP2169142 Whirlpool Fan Blade |
| 4 | Fan, Bracket Double |
| 5 | Fan Bracket, Single |
| 6 | Grommet (3) |
| 7 | W11624204 Whirlpool Screw |
| 8 | Deflector, Air Duct |
| 9 | WP489128 Whirlpool Refrigerator Screw |
| 10 | WP488366 Whirlpool Refrigerator Clamp |
| 11 | 489348 Whirlpool Refrigerator Tube Clamp |
| 12 | Channel, Wiring |
| 13 | Fastener (3) |
| 14 | Scroll, Fan |
| 15 | Deflector, Air Duct |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Assembly, Air Duct (Also Order Items 8 & 15) |
| 18 | Air Deflector, Icemaker |
| 22 | Gasket, Air Baffle |
| 23 | Cover, Air Outlet |
| 25 | Cover, Evaporator |
| 26 | Connector, Meat Pan Duct |
| 27 | WP488729 Whirlpool Refrigerator Door Screw |
| 28 | Baffle, Evaporator |
| 29 | Diffuser, Air Duct |
| 30 | WP2256126 Whirlpool Refrigerator Reservoir |
| 31 | Screw (2) |
| 42 | Evaporator, Cover Rail (Left Side) |
| 42 | Evaporator, Cover Rail (Right Side) |
| 45 | Gasket (2) Evaporator Cover |
| 46 | Gasket (2) |
| 47 | Gasket |
| 48 | Gasket |
