KSSS48QDX00 09 – TOP GRILLE AND UNIT COVER – Aparts

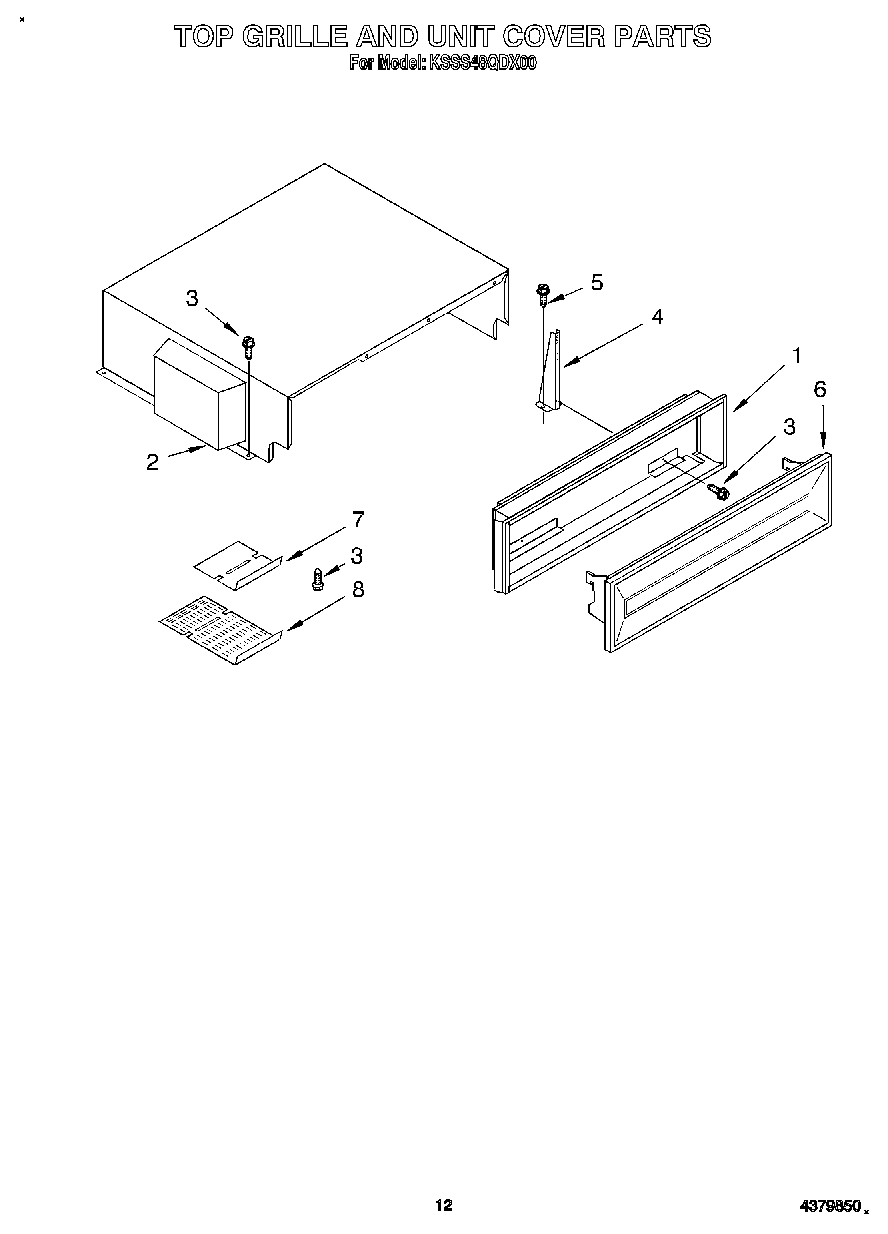

KSSS48QDX00 09 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly
7	Guard, Compressor Wiring
8	Guard, Water Valve Wiring
